20

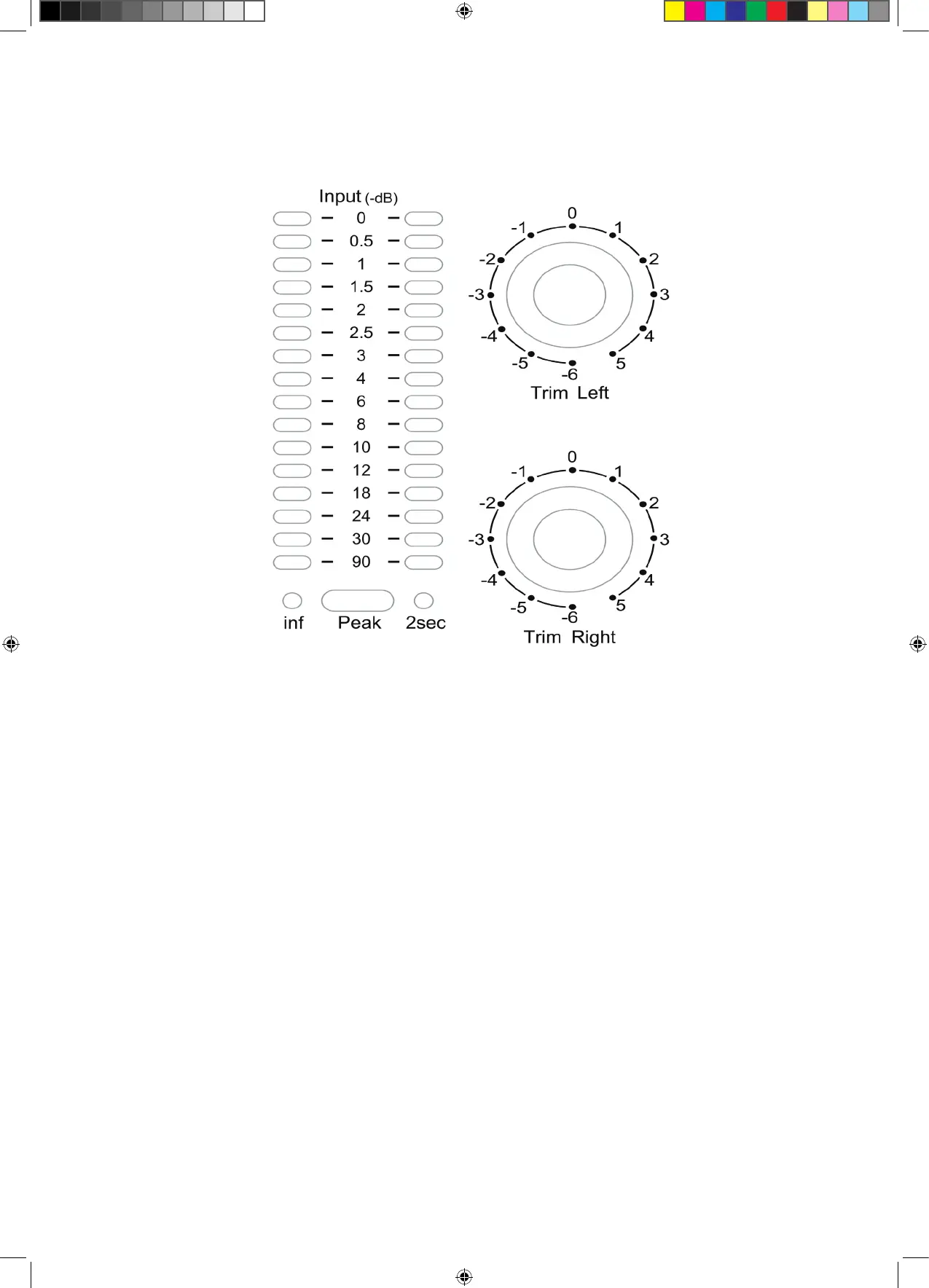

Input Meters: Display the input/ signal level on 2 channels, left and right.
Input bar graph range: 0.0 to -90.0dB.
Peak: Selects the behavior of the Peak Hold and resets the meter peak
holding indication. A short press on the Peak button resets the peak read
-
ings on all the meters (input, output and attenuation). A long press on this
button toggles the behavior of the peak hold indicator between infinite
hold and 2 second hold.
Options: inf = infinite peak holding, 2sec = 2 seconds peak holding.
Rotary Switches (Left/Right): Controls analog input level in conjunction with
the rear panel Calibration control. If possible, it’s best to leave this control
at the center position (0) and adjust the device that is feeding signal to the
MaxxBCL. Then, use these controls for small trim and balance adjustments.
By using these controllers, you can calibrate your system for better perfor
-
mance and maximal stability and precision. The rotary switches utilize 1%
resistors at the input stage.
Input Trim Range: -6db - +5db from unity gain, 1dB steps.
Input
