11

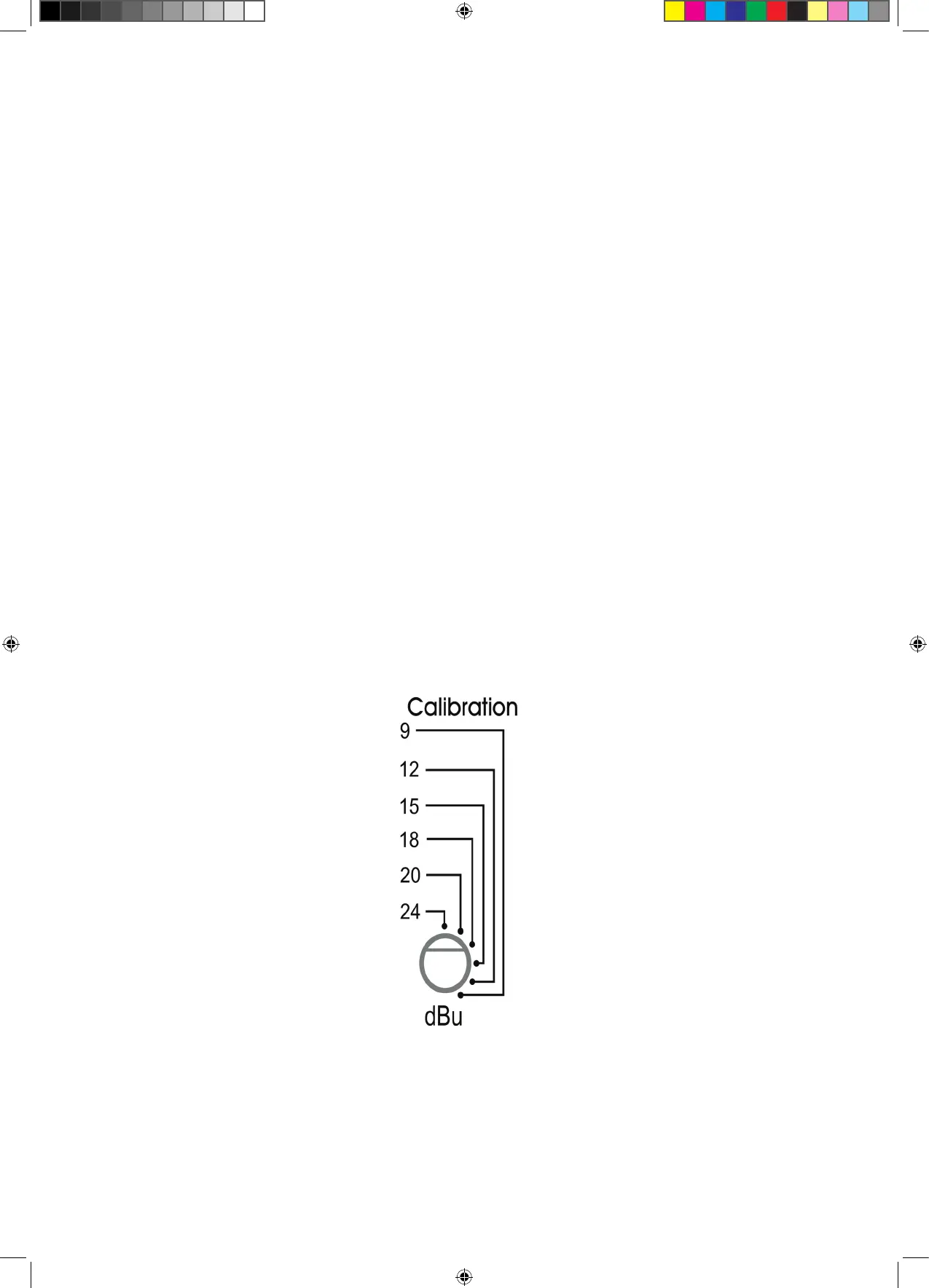

Input/Output Calibration controls:
The Calibration controls allow you to calibrate the signal output that runs
from your analog device (going to the MaxxBCL) to the MaxxBCL’s input,
and the analog output of the MaxxBCL (going to the unit following the
MaxxBCL in the signal chain). This allows you to get the maximum head
-
room available in your audio working environment.
Input Calibration:
Set your analog device to its maximal output level and set the input rotary
switches on the MaxxBCL front panel to unity gain. Now adjust the input
Calibration so that your peak signals are between -6 and 0dB(FS) on the
input meters.
Output Calibration:
To adjust the MaxxBCL’s output, set the Calibration control so that the input
level on your analog device (the one that follows the MaxxBCL in the signal
chain) does not exceed Unity gain.
Options: Input: + 9, 12, 15, 18, 20, 24 dBu. Output: + 9, 12, 15, 18, 20, 24
dBu
