2.6.6 Optional Equipment
Dispensers contain an extra pair of data wires in the junction box for Wayne TRAC as shown in
Figure 2-6 below. These wires are also identified in the installation wiring diagram in Appendix B.
Dispensers with the letter I in the model number will have an intercom call button.
Brown wires are speaker connections. Yellow wires are call button connections see Figure 2-6. Both
circuits are low voltage NEC Class 2 only.
Dispensers with a 3 or 6 in the main body of the model number indicates the dispensers are equipped
with iX CAT board option, VGA or QVGA, respectively. And, dispensers with the letter “L” in the 1st
suffix of the model number indicates iX Secure Keypad. All of these dispensers will require an unin-
terrupted run of Ethernet cable from the switch in the building to the switch in the dispenser elec-
tronic head. These dispensers will need a secondary underground conduit for this cable and other
NEC Class 2 wiring as shown below. From the factory, these dispensers will contain a short section of
conduit that can be used for making the connection to the secondary conduit seal off under the dispenser.
NOTE: The field Ethernet cable and Intercom (Call Button and Speaker) wires (NEC Class 2) must be
installed via a separate underground conduit to the dispenser. The intercom/speaker and call button
wires should be terminated with wire nuts in the electronics head.
2.6.7 Veeder-Root Vapor Flow Meter
Refer to the installation procedures in the Veeder-Root Manual No. 577013-796 Rev E (page 6, instruc-
tion steps 11 and 12) supplied with dispensers equipped with the Veeder-Root option.
2.6.8 Non-Dispenser Equipment
Do not run wiring for any non-dispenser equipment, in the same conduit as the dispenser wiring; this
wiring must be run in a separate conduit.

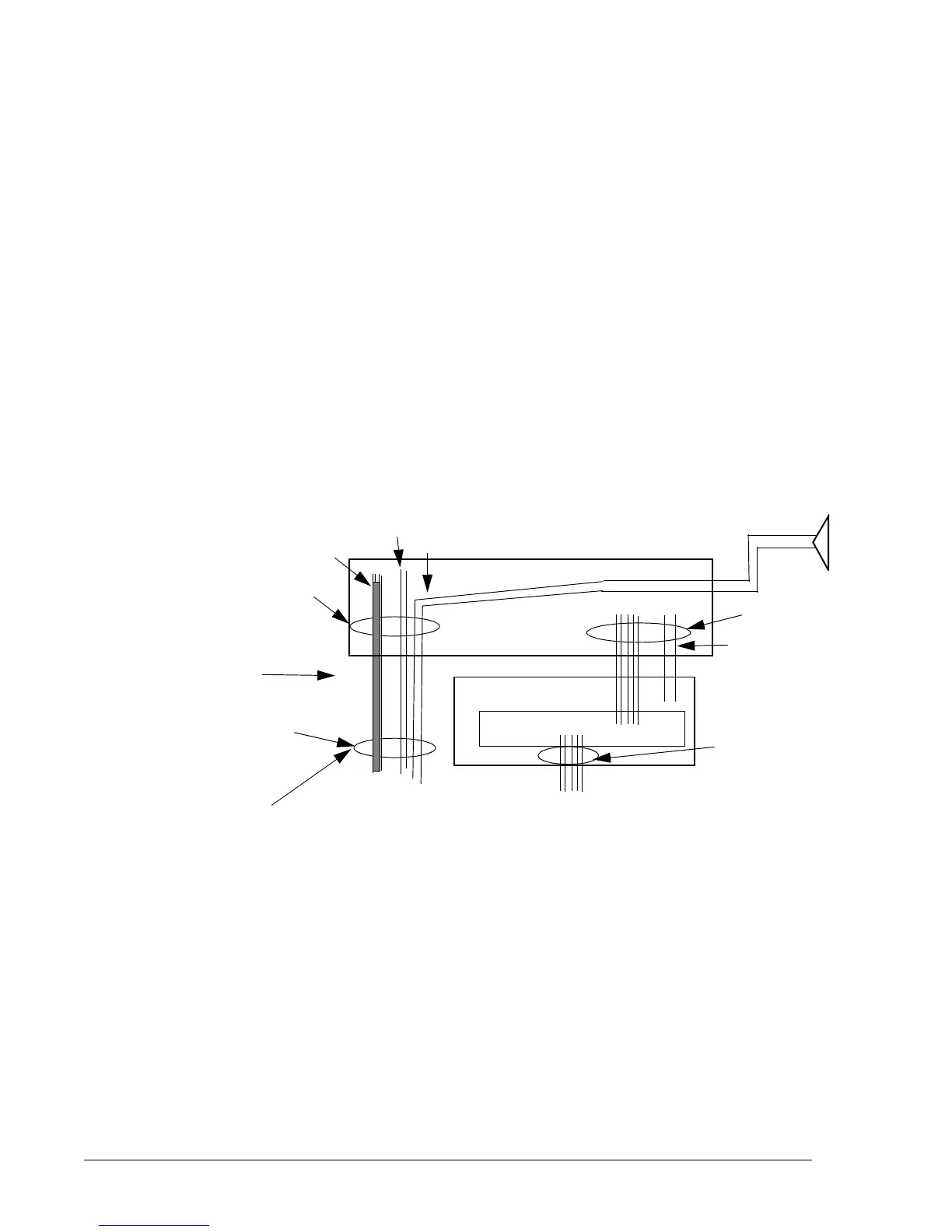

Figure 2-6 Ethernet, Intercom Call Button and Speaker Wiring. Ethernet and Intercom (Call Button and
Speaker) wiring must run in a separate underground conduit to the dispenser.
Terminal Strip
Y
Call Button
Speaker
Underground Conduit
Intercom (call button
Underground Conduit
for Pump Power,
and Data,
BU
OR
Wayne TRAC
Data Wires for
•
•
for Ethernet cable and
Electronic Head
Secondary Conduit
in Electronic Head
Y
Junction Box
Valance lighting
(NEC Class 1)
+
_
(NEC Class 2)
Ethernet Cable for
Note: This conduit now goes directly to the seal offs
under the dispenser to allow for a straight run of
Ethernet cable from building switch to dispenser switch.
and speaker) wires only.
option
iX CAT or
IDPOS option
Wire Nut (typical)
and relay select wires.
BN pair
•
Electronic Head
•
Main Conduit in
•
Speaker
••
