80
Part No. 920559 Rev H November 2008

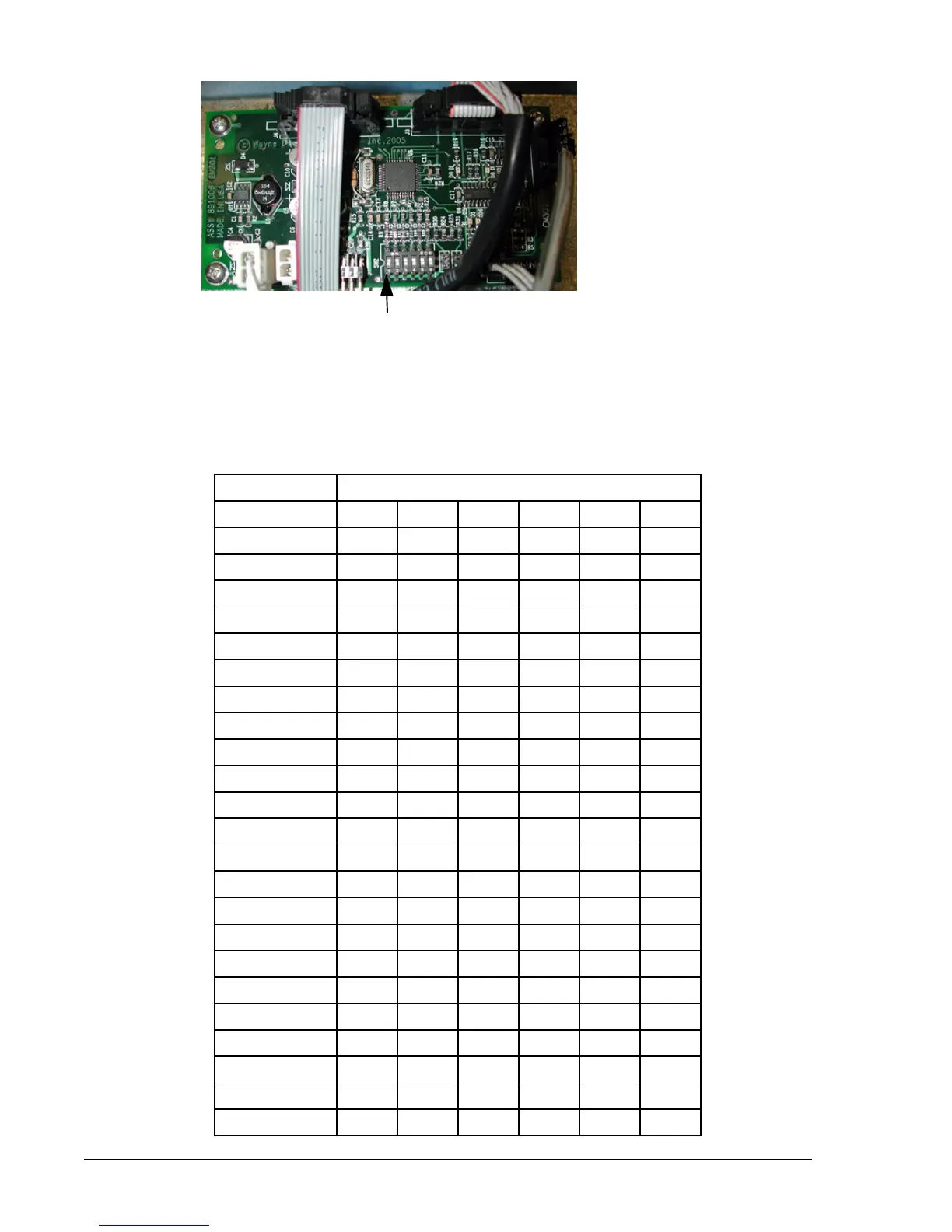

Standard Ovation with Bill Acceptor Option. The BAM board is located just above the QCAT board
on the inside of the service door.
To set the 6 position DIP Switch SW2 to the CAT ID number (Fueling Point number),
view the switch at the bottom of the board and slide positions down (Off) and up (On) to select
the ID in accordance with the table below.
SW2 Switch Positions (L-R) for Fueling Point ID
FUELING POINT ID SW2 SWITCH POSITIONS LEFT TO RIGHT ON THE BOARD
1 OFF ON ON ON ON ON
2 ON OFF ON ON ON ON
3 OFFOFFONONONON
4 ON ON OFF ON ON ON
5 OFF ON OFF ON ON ON
6 ONOFFOFFONONON
7 OFF OFF OFF ON ON ON
8 ONONONOFFONON
9 OFF ON ON OFF ON ON
10 ON OFF ON OFF ON ON
11 OFF OFF ON OFF ON ON
12 ON OFF ON OFF ON ON
13 OFF ON OFF OFF ON ON
14 ON OFF OFF OFF ON ON
15 OFF OFF OFF OFF ON ON
16 ON ON ON ON OFF ON
17 OFFONONONOFFON
18 ON OFF ON ON OFF ON
19 OFF OFF ON ON OFF ON
20 ON ON OFF ON OFF ON
21 OFF ON OFF ON OFF ON
22 OFF ON OFF ON OFF ON
23 OFF OFF OFF ON OFF ON
24 ON ON ON OFF OFF ON
BAM Board
LSB MSB
1 2 4 8 16 32
Slide positions
down (Off) and up (On) to select digits
SW2 switch positions BCD values
with the LSD (0 or 1) to the left
