6.3 Heater Components

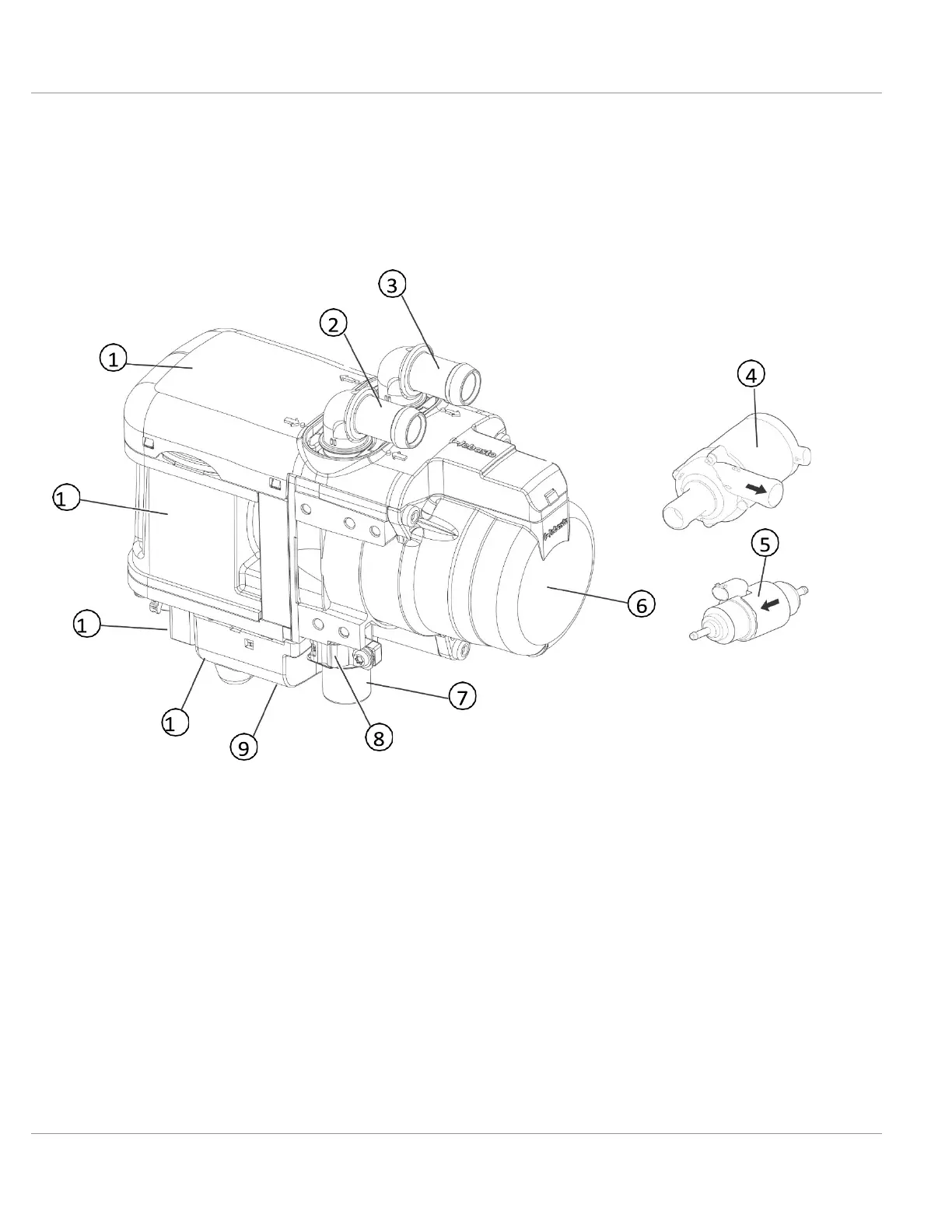

Fig. 3: Thermo Top Evo Components
1 Combustion Air Fan
7
Exhaust Outlet
2 Water Inlet
8
Exhaust Gas Temperature Sensor
3 Water Outlet
9
Fuel Inlet
4 Circulation Pump
10
Air Inlet
5 Fuel Metering Pump
11
Control Unit
6 Combustion Chamber
12
Burner Motor
