8 | Fuel Supply
8.3 Fuel system overview

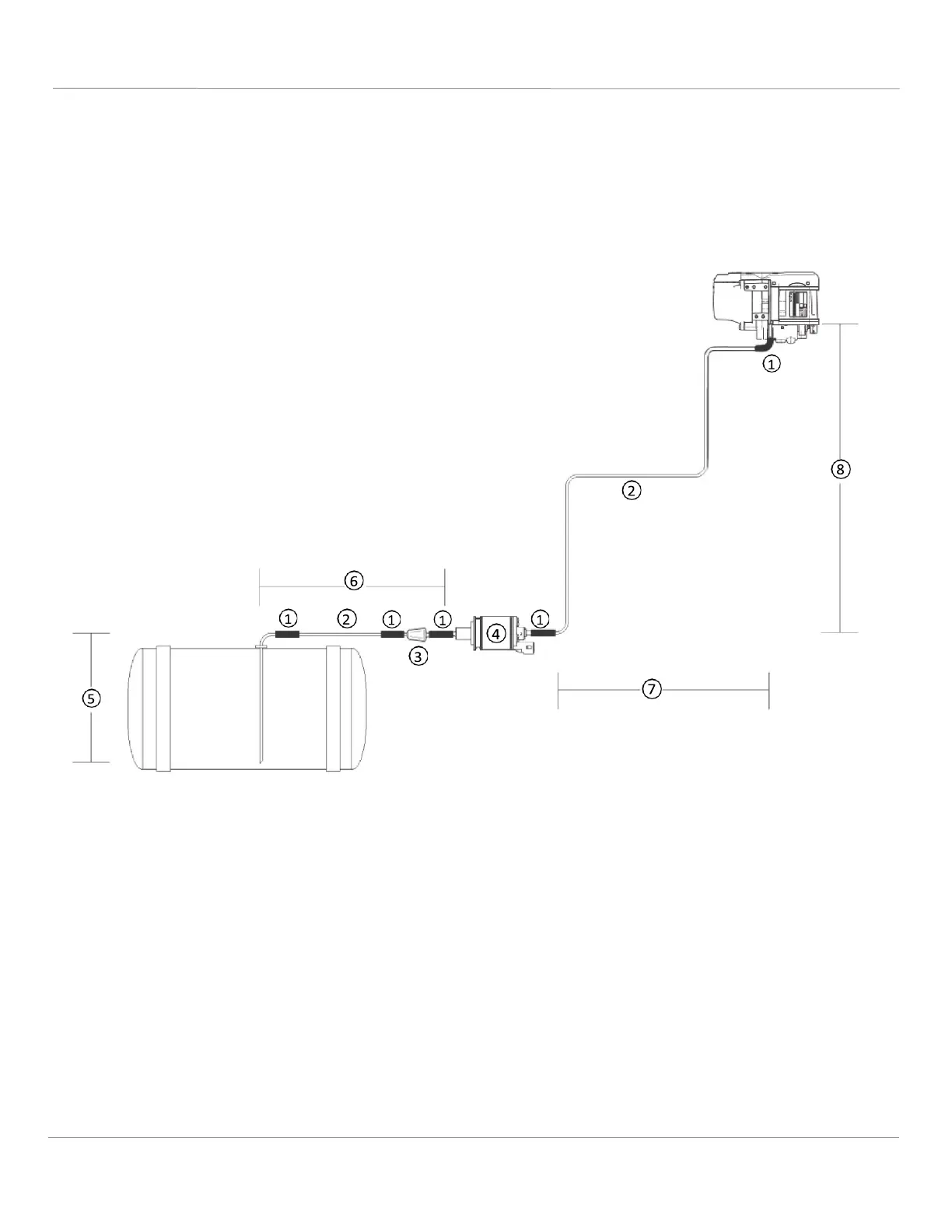

Fig. 19: Fuel System Parameters
1 Fuel Line Coupler
5
Max Suction Height (A) = 3’ 3” (1m)
2 Fuel Line
6
Max Suction Length (A + B) = 9’ 9” (3m)
3 Fuel Filter
7
Max Delivery Length (C + D) = 28’ 3” (9m)
4 Fuel Dosing Pump
8
Max Delivery Height (D) = 9’ 9” (3m)
