6 | Installation Example
6.4
Mounting the Heater to
the Vehicle
6.4.1
Allowable Mounting Positions

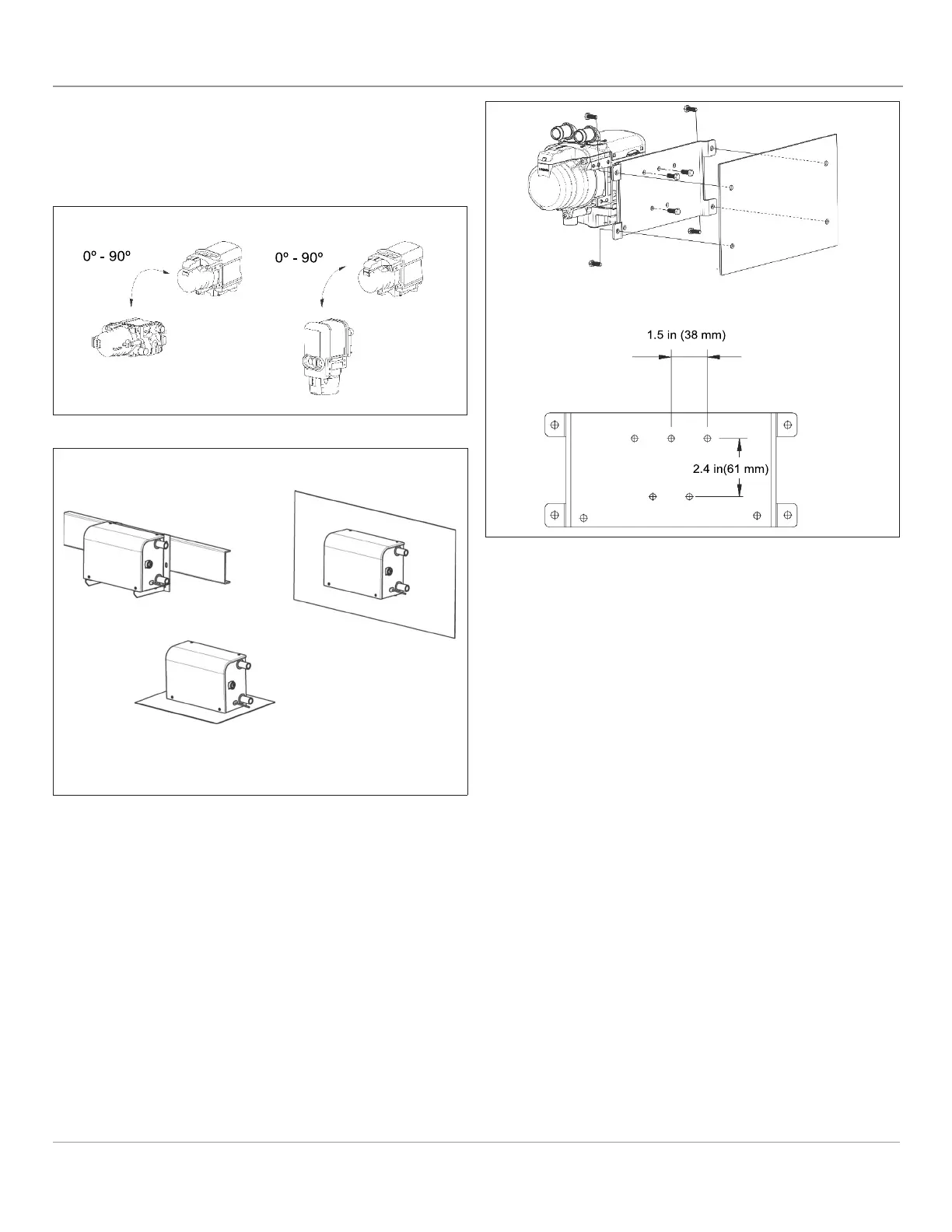

Fig. 4: Thermo Top EVO Orientation
Fig. 5: Allowable Enclosure Kit Mounting Positions
6.4.2
Standard Mounting Bracket
The heater must be fastened on the bracket with at
least 3 (three) M5 bolts torqued to 6 lb-ft (8Nm). The
heater fastening screws are approved for bracket
metal thickness of 0.06 in – 0.12 in (1.5 mm – 3.0
mm). The following figure is an example of a Thermo
Top Evo bracket.
Fig. 6: Thermo Top Evo Standard Bracket Exploded
View and Dimensions
