CAUTION
Before drilling holes in the frame, consult
the manufacturer for guidelines and restric-
tions!
Do not weld vehicle frame or flanges!

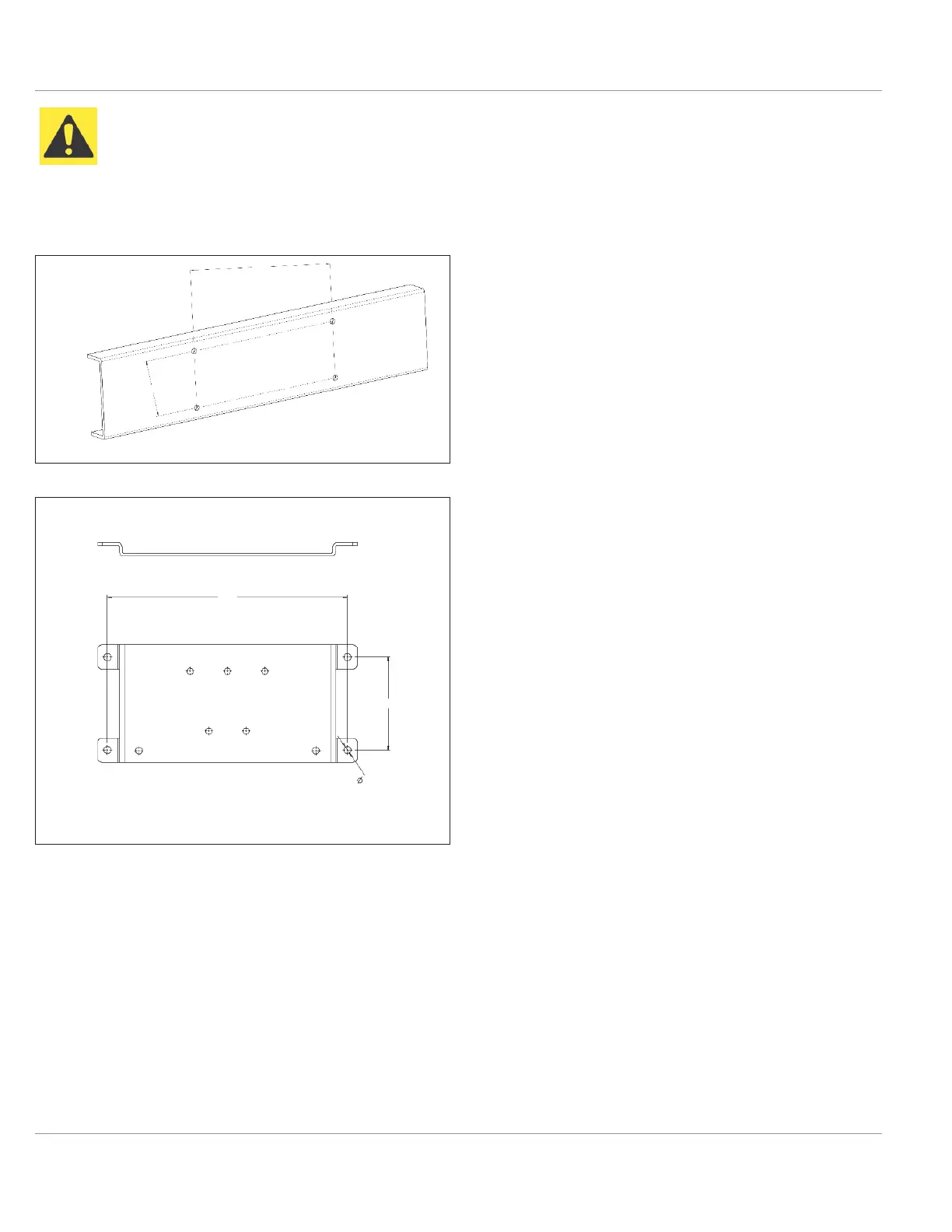

Fig. 7: Mounting Hole Dimensions – Enclosure Box
Fig. 8: Mounting Points – Mounting Plate
11.8 in
(300 mm)
4.1 in
(105 mm)
9.6 in (244 mm)
3.7 in (94 mm)
0 .3 in (7.5 mm)
