10 | Exhaust System
The exhaust gas outlet must be oriented in line with
the following specifications:
The exhaust gas must flow unobstructed.
The exhaust gas outlet must not be blocked by
debris.

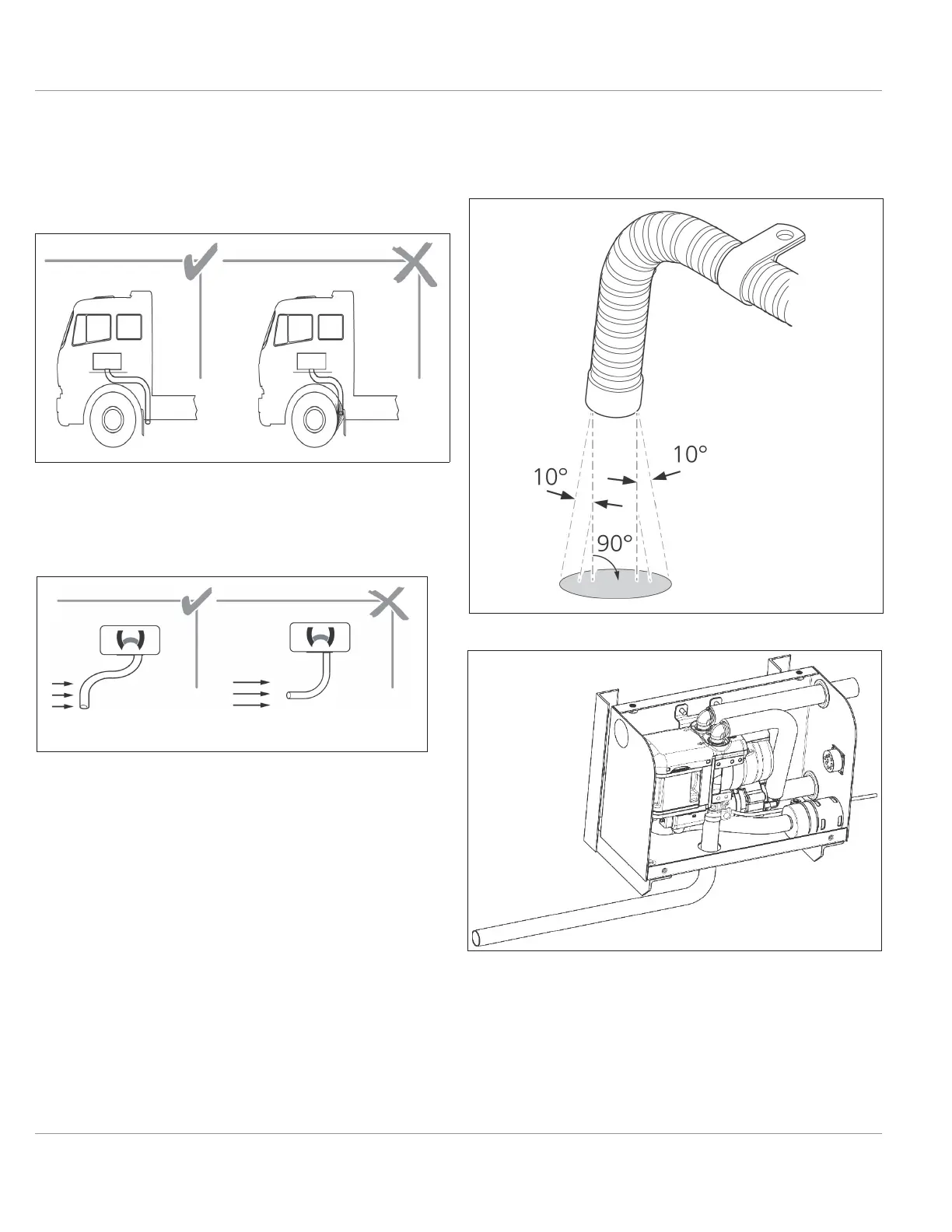

Fig. 25: Do Not Obstruct Exhaust Outlet
Exhaust gas outlet must not face in the direction
of travel.
Fig. 26: Exhaust Pipe Orientation
Exhaust gas must not enter the vehicle interior
(e.g. through openings, ventilation equipment).
The exhaust gas must not be drawn in as com-
bustion air.
The exhaust gas outlet is not too close to the
ground.
The exhaust line must continue for at least 3/8 in
(10 mm) after passing through the underbody
cover or skirt.
Secure the exhaust line maximum 6 in. (150 mm)
from the exhaust gas outlet so that the exhaust
gas emerges at an angle of 90° ± 10° to the
ground.
Fig. 27: Exhaust Outlet Angle
Fig. 28: Exhaust Installation - Enclosure Box
