Webasto Thermo Top P Installation Documentation

Skoda Superb
1314084D_EN
11

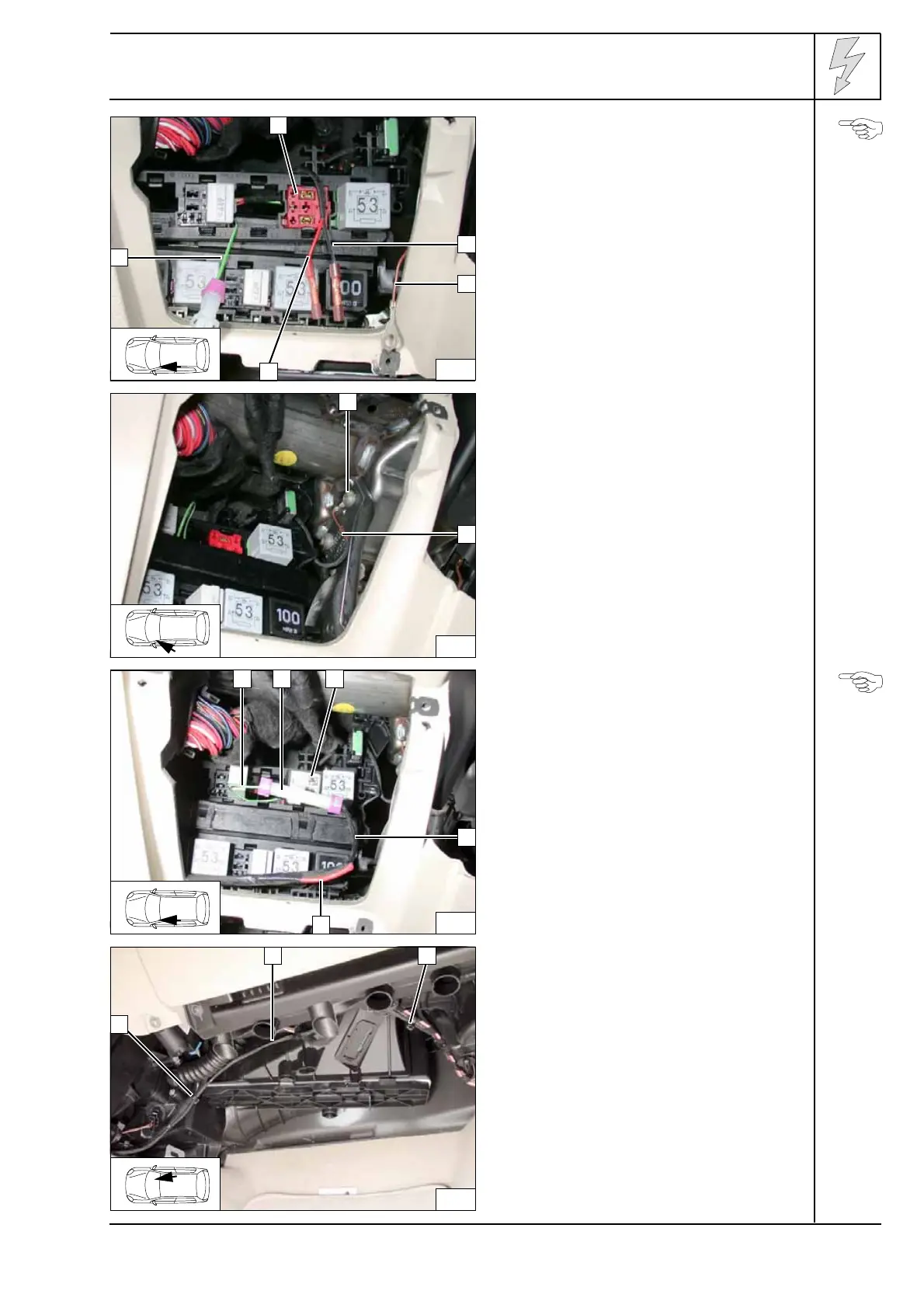

Produce connections as shown in wiring diagram.
Insert IPCU socket 1 in free slot. Position of
free sockets dependent on respective vehicle
equipment.
Note:
If the shape of the IPCU socket fuse carrier 1
is new, fasten with cable ties.
2 Black (sw) wire of IPCU/A
3 Brown (br) wire of IPCU/85, cable lug
4 Red (rt) wire of IPCU/E
5 Green/white (gn/ws) wire of IPCU/86, AMP
connector
Installing
IPCU
1
Original vehicle bolt
2 Brown (br) wire of IPCU/85
Earth con-
nection of
IPCU
Insulate red (rt) wire of K3/87a 5 and tie back.
Replace 25 A fuse F3 with 3 A fuse.
Produce connections as shown in wiring dia-
gram.
1 Green/white (gn/ws) wire IPCU/86
2 AMP connector
3 Connect IPCU
4 Black (sw) wire from K3/30
Connect-
ing IPCU
1
Wiring harness of fan controller
Wiring
routing
12
1
4
5
3
2
13
2
1
14
1
5
4
32
1
1
1
15
