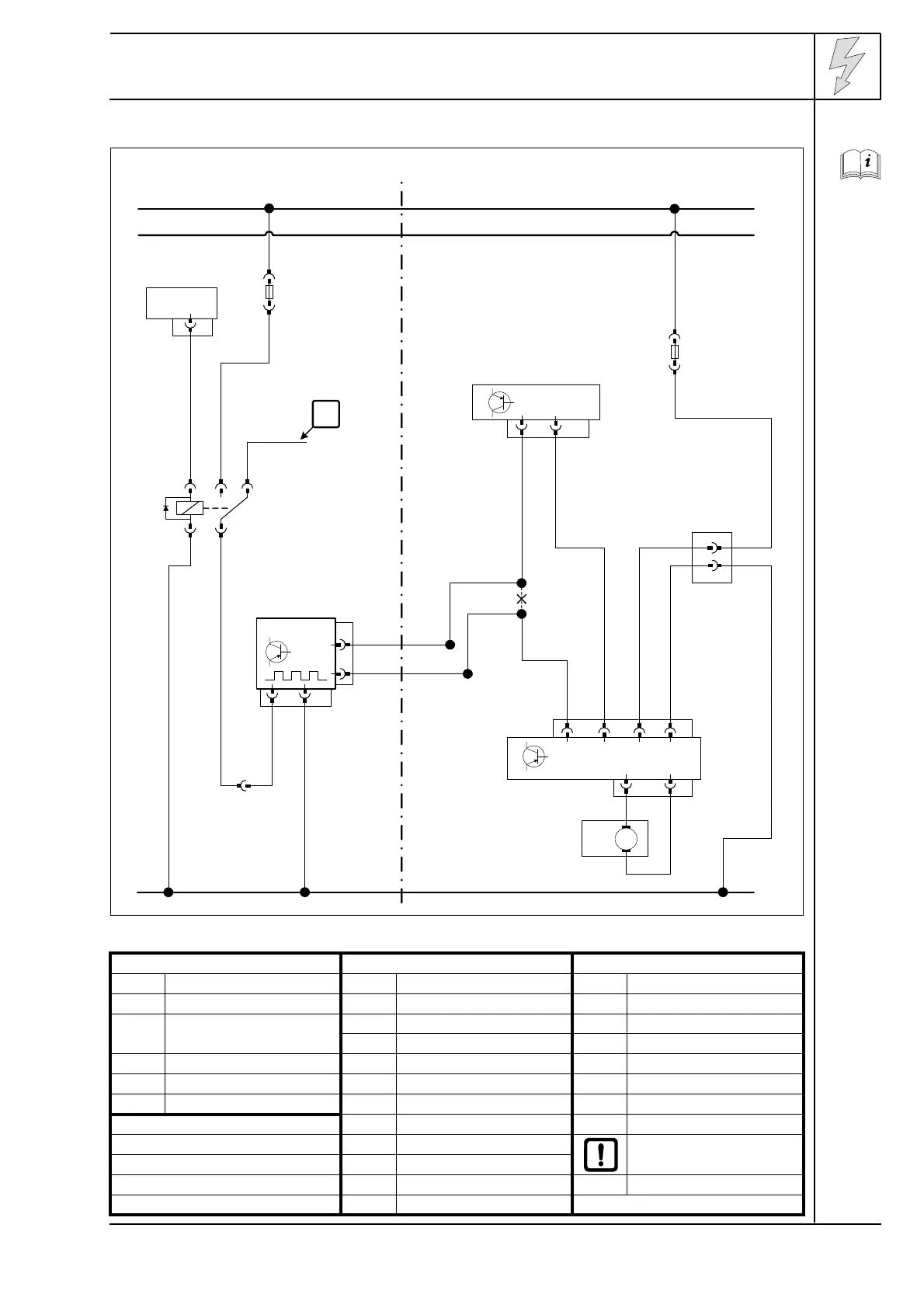

Climatronic fan controller
Wiring dia-
gram
Webasto components Vehicle components Colours and symbols
Legend
HG Heater TT-C/E SC22 40 A fan fuse rt red
X1 6-pin heater connector T... Plug connections ws white
F3 Replace 25A fuse with
3A fuse.
J126 Fan controller sw black
J255 A/C control panel br brown
K3 Fan relay V2 Fan motor gn green
IPCU Pulse width modulator bl blue
IPCU adjustment values:
Duty cycle: 30% Insulate wire end and tie
back
Frequency: 400Hz
Voltage: 8V
X Cutting point
Function: High-side active Wiring colours may vary.
Webasto
31
30
15
Skoda
F3
86
85 30
87a87
K3
HG
X1
4
gn/
ws
!
br
rt
4²
sw
4²
86 85
A
E
IPCU
rt/ws
gn/
ws
br
SC
22
J126
T6ad
2 1 4
br
sw/rt
sw
sw/ws
sw/
ws
rt
rt
sw/ws
3
bl/ws
J255
T16l
15
16
1 2
V2
M
2
T10j
1
rt/ws
br
sw/
rt
