Webasto Thermo Top P Installation Documentation

Skoda Superb
1314084D_EN
9

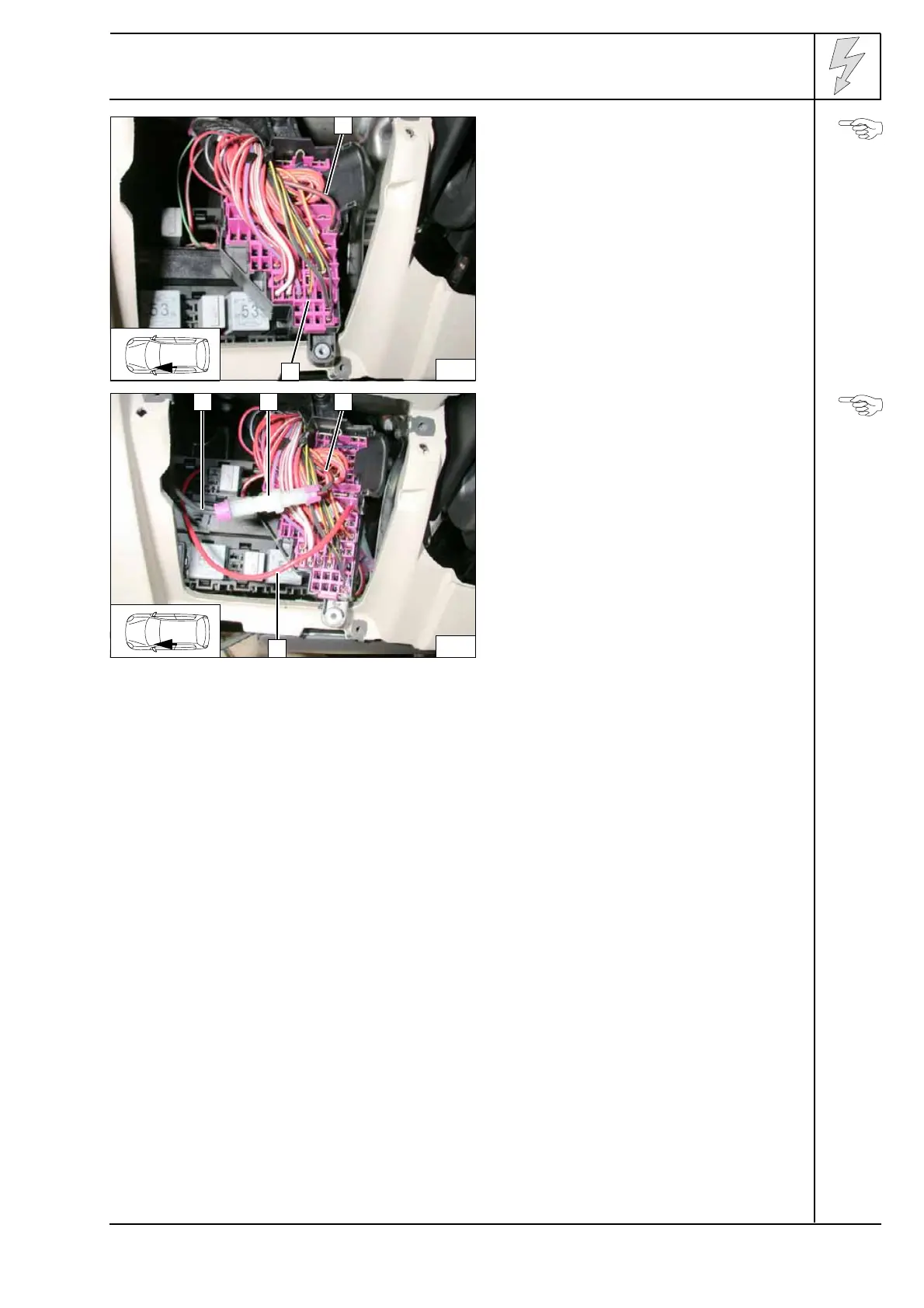

Detach fuse carrier 2 and unlock contact lock.
Detach black/red (sw/rt) 4 mm² wire
1 on fuse
output SC40.
Connect-
ing central
electrical
box
Mount red (rt) wire 4 K3/87a in fuse output SC40.
Produce connections as shown in wiring dia-
gram.
1 Black (sw) wire from K3/30
2 AMP housing
3 Black/red (sw/rt) wire of fuse SC40
Connect-
ing central
electrical
box
10
2
1
11
1
4
32
