Skoda Superb
1314084D_EN
6
Electrical system

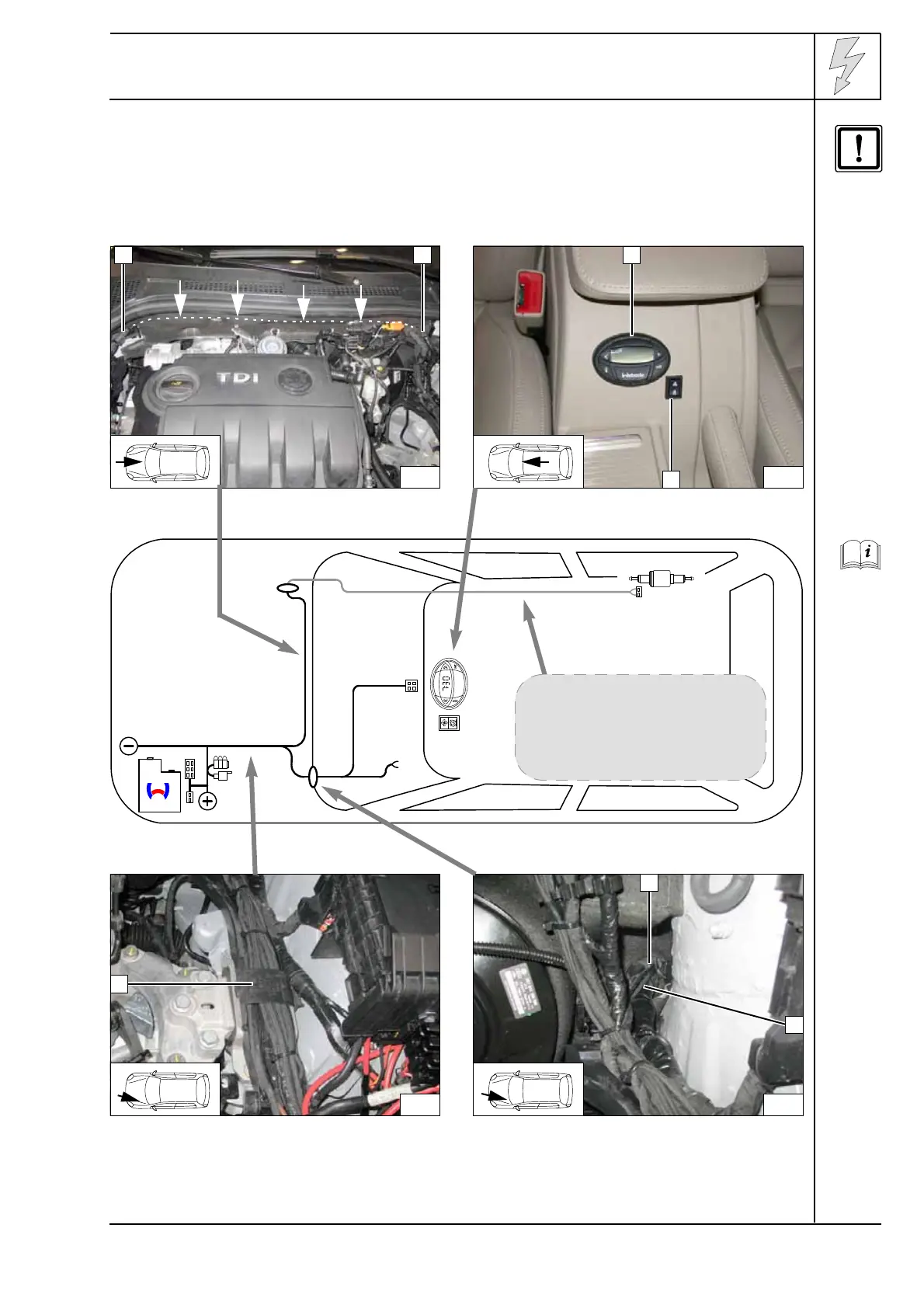

Wiring routing
Route wiring harness of metering pump and fuel
line 1 behind insulation mat to right-hand vehicle
side.
Digital timer and summer/winter switch op-
tion
1 Digital timer
2 Summer/winter switch, drilled hole 12 mm dia.
Wiring har-
ness rout-
ing
diagram
Wiring harness routing
Route wiring harnesses in original vehicle cable
duct 1.
Wiring harness pass through
1 Protective rubber plug
2 Wiring harnesses of fan controller and heater
control
Do not install the metering pump
wiring harness until later togeth-
er with fuel pipe along the origi-
nal vehicle fuel lines on the
underbody
