Skoda Superb
1314084D_EN
7

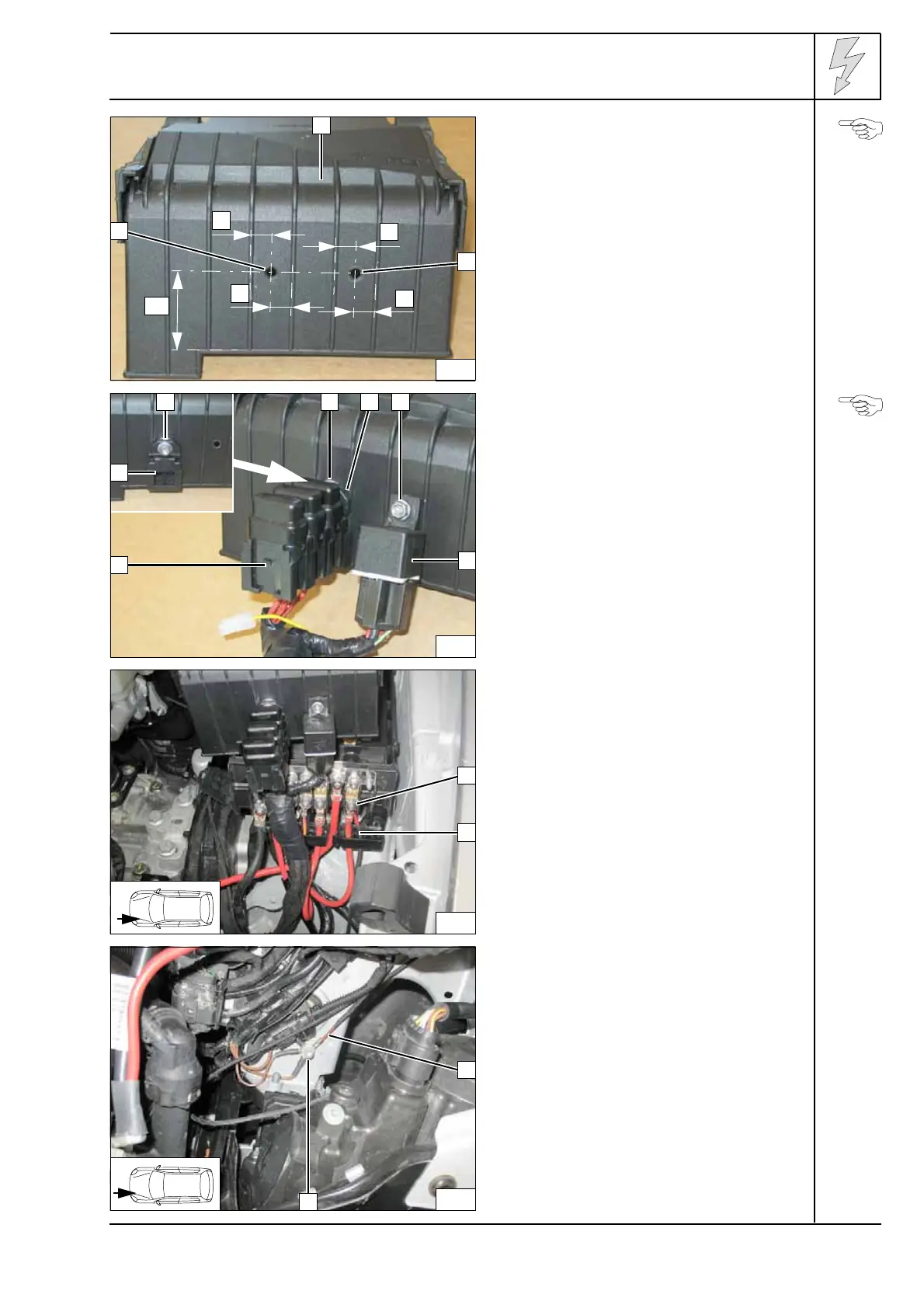

Preparing fuse holder and K3 relay
Countersink 5.5 mm dia. hole [2x] 2 from be-
hind.
1 Cover of fuse and relay carrier
Holes in
fuse carrier
Insulate wiring harness under the fuses with
PVC tape. Insert large diameter washer be-
tween cover and retaining plate 2.
1 M5x12 countersunk head screw, large di-
ameter washer, flanged nut
3 M5x12 countersunk head screw, flanged
nut
4 K3 relay
5 Fuses pushed on
Installing
fuse holder
and K3 re-
lay
1 Original vehicle positive support point
2 Positive wire
Positive
connection
1 Earth wire
2 Original vehicle earth support point
Earth con-
nection
