Webasto Thermo Top P Installation Documentation

Skoda Superb
1314084D_EN
21

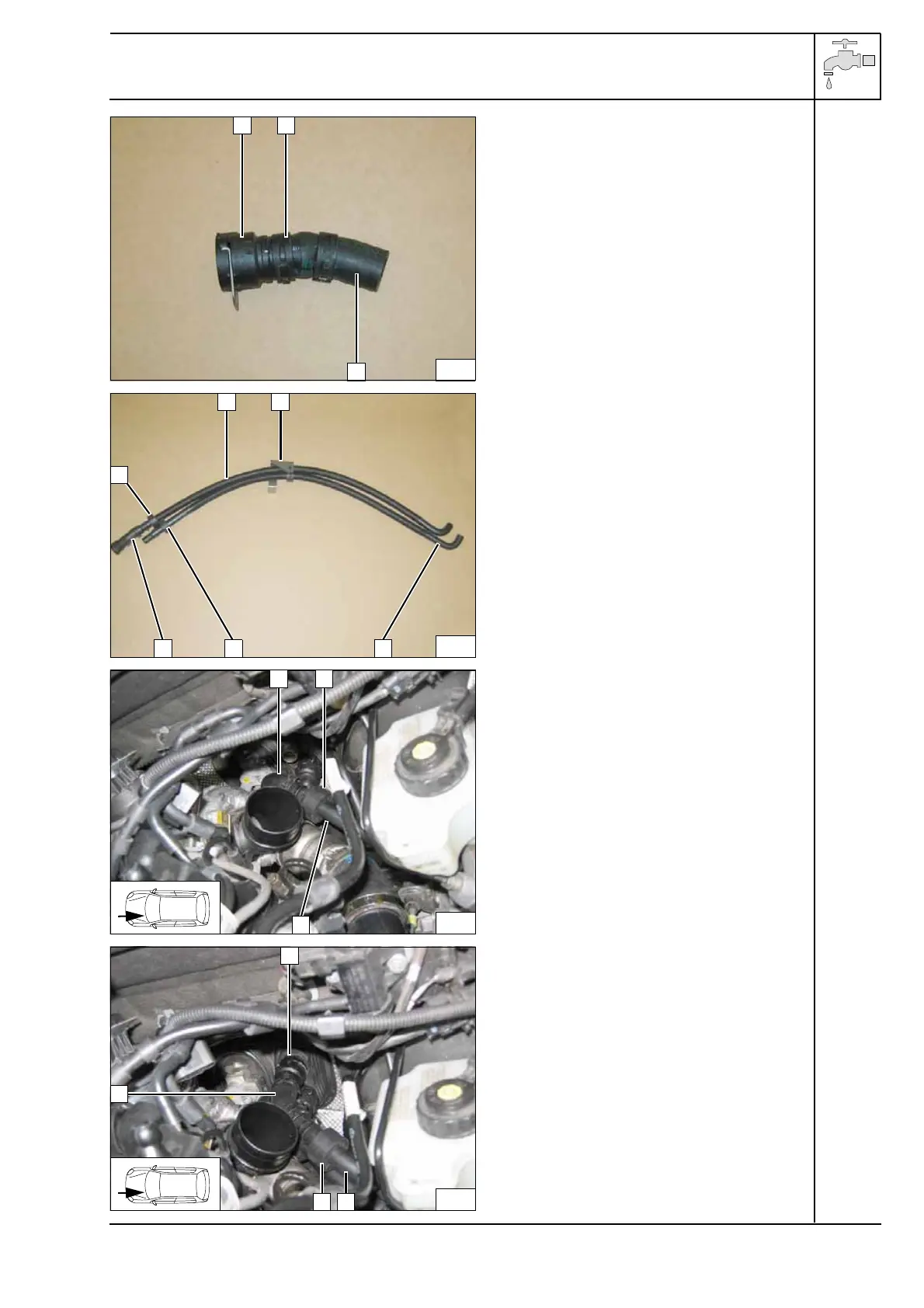

1 Coupling piece on heat exchanger inlet
(VAG Order No.: 3B0 122 291 B)
2 Original vehicle spring clip
Premount-
ing coolant
hoses
1
Clip bracket 
2 Black (sw) rubber isolator [2x]
Premount-
ing coolant
hoses
Hose routing
1 Engine outlet hose section
2 Position black (sw) rubber isolator
Connec-
tion to en-
gine outlet
1
Original vehicle coupling piece on heat ex-
changer inlet, original vehicle spring clip
2 Position black (sw) rubber isolator
Connec-
tion to heat
exchanger
inlet
G
1
41
2
A
F
G
42
1
2
2
2
A
1
43
F
1
2
44
G
