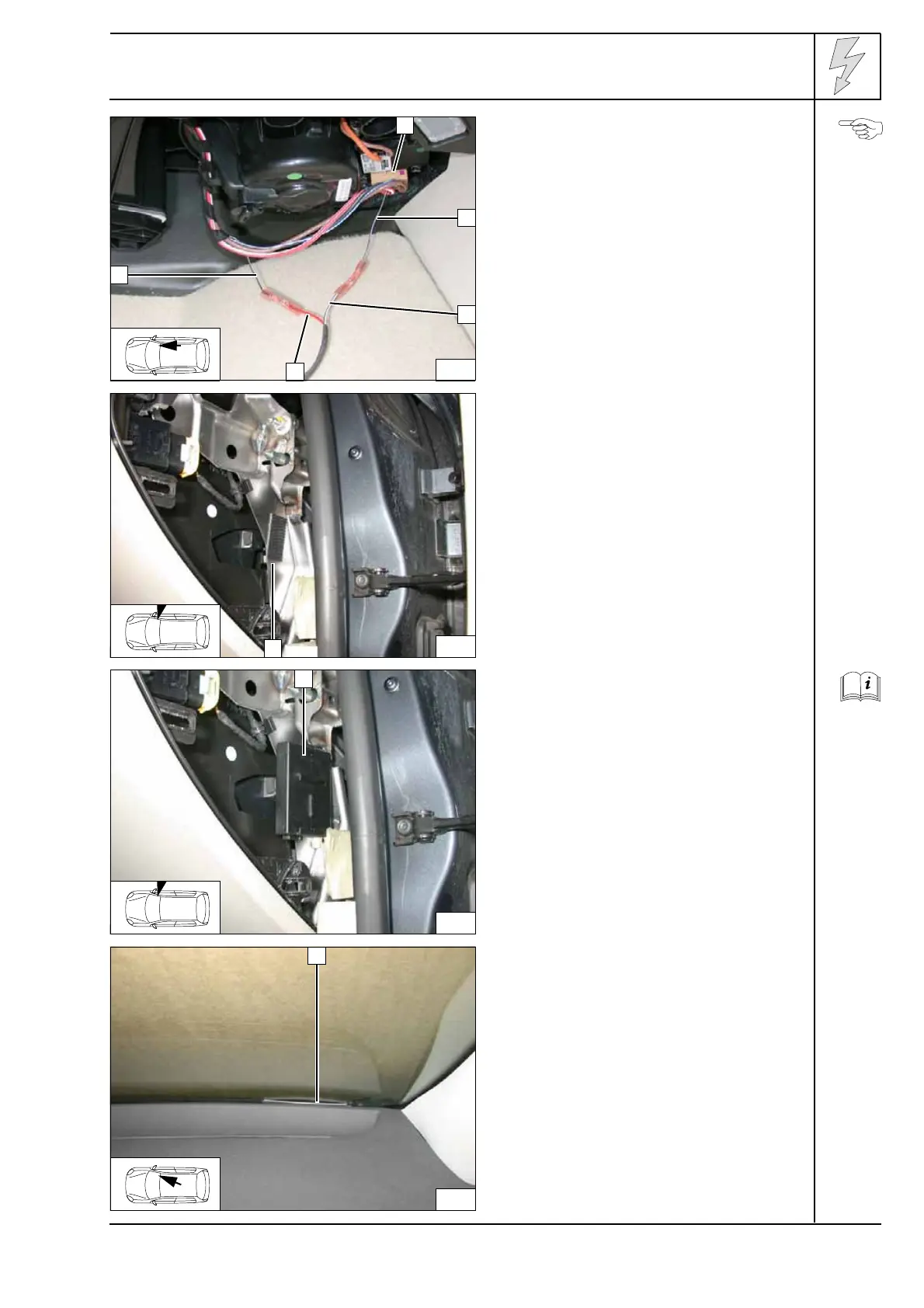

Connection on 6-pin connector 1 T6ad, Pin 2
from fan controller.
Produce connections as shown in wiring dia-
gram.
2 Black/white (sw/ws) wire of 6-pin connec-
tor T6ad, Pin 2
3 Black/white (sw/ws) wire from IPCU/A
4 Red (rt) wire of IPCU/E
5 Black/white (sw/ws) wire of A/C control
panel
Connect-
ing fan
controller
Remote option Telestart
1 Apply double-sided adhesive tape
Fastening
receiver
Fasten receiver 1 with double-sided adhesive
tape, secure with cable tie, if necessary.
Installing
receiver
1
Antenna
Installing
antenna
