Weber GENESIS Replacement Instructions

4
DOOR REMOVAl
1
2
3
TOOLS NEEDED: - FLATHEAD
5
GREASE tRAY / DRip pAn REMOVAl
3
COOKBOX COMpOnEntS REMOVAl
A) Remove warming rack.
B) Remove cooking grates.
C) Remove Flavorizer
®
bars.
D) Remove heat deflectors.
1
2
2

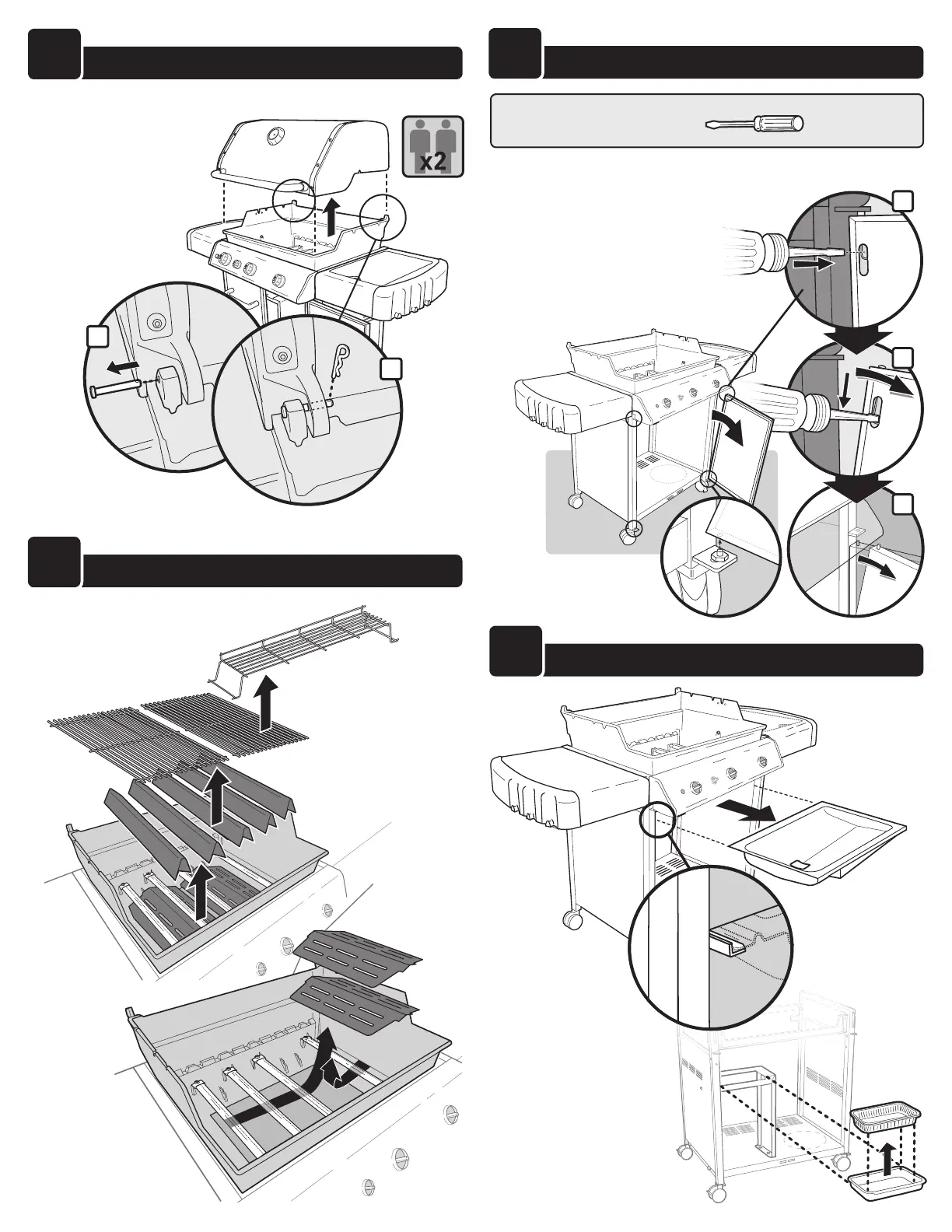

liD ASSEMBlY REMOVAl
m CAUTION: Two people are required to lift and remove
lid assembly.
A) While lid assembly is in
closed position, remove
cotter pins out of clevis
pins (1).
B) Remove clevis pins (2)
from cookbox assembly.
C) Lift and remove lid
assembly.
A) Locate door pin release in door assembly (1).
B) Using a screwdriver, push down on door pin release
(2) until door detaches from frame assembly.
C) Pull top of door away from frame
assembly and lift door off bottom
adjustable hinge pin (3).
