Weber GENESIS Replacement Instructions

3
4
2
1
17

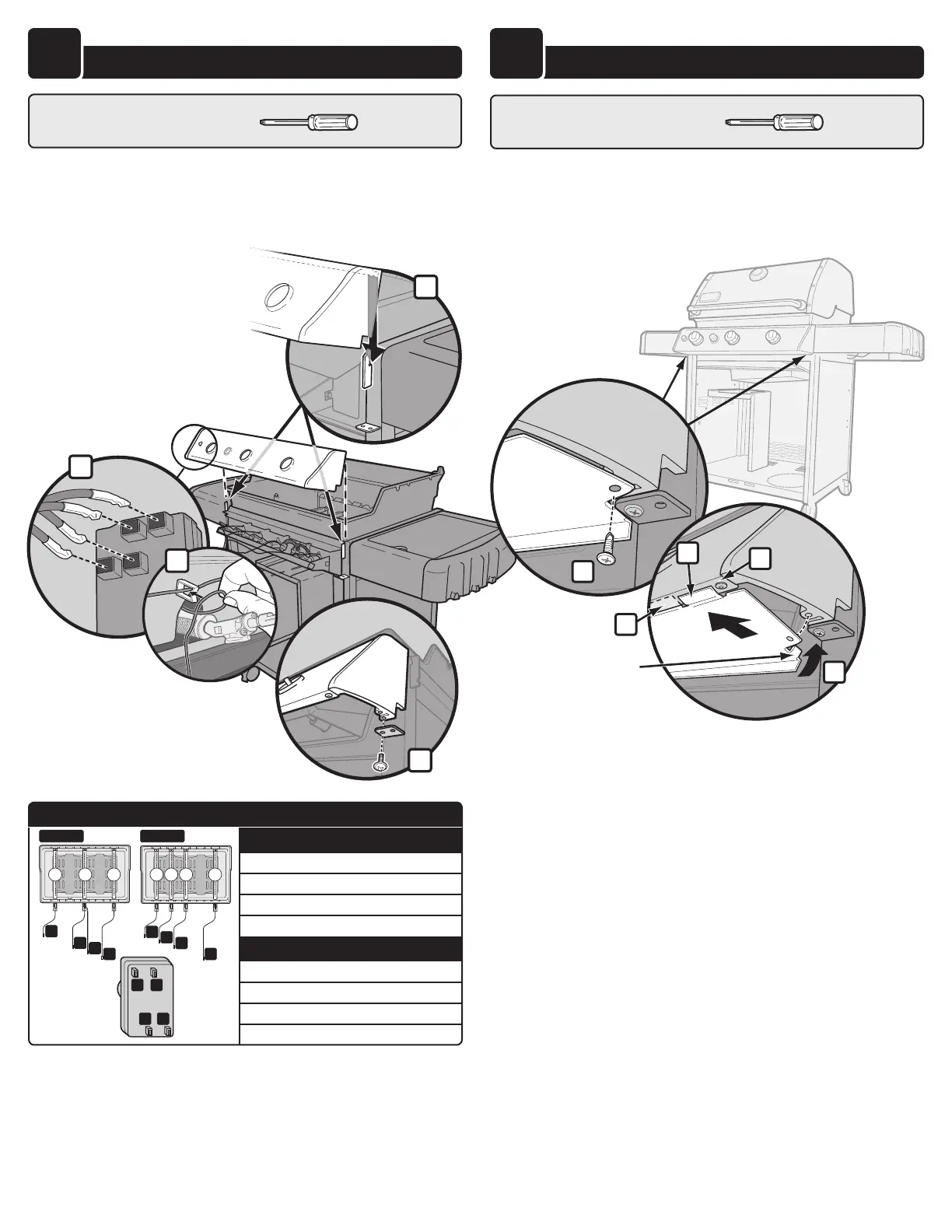

COntROl pAnEl REinStAllAtiOn
m IMPORTANT: To do a proper leak check, control panel must be
removed. After checking for leaks reinstall control panel, wind deflector
and control knobs.
A) Connect igniter wires to ignition module (1) before installing control panel.
REASSEMBLY NOTE: Follow Igniter Module Wire Guide for
proper alignment order.
B) Tilt front edge of control
panel up (2) and hook back
edge of control panel on
frame assembly hooks. Lower
control panel onto frame
assembly.
C) Install screws that secure
control panel to frame
assembly (3) with a Phillips
head screwdriver.
TOOLS NEEDED: - PHILLIPS
18
WinD DEFlECtOR REinStAllAtiOn
A) Position front edge of wind deflector onto bottom lip of control panel (1).
Position both outer short tabs of wind deflector below control panel lip (2),
while placing inner long tab above control panel lip (3). The bottom lip of
control panel will be sandwiched between the wind deflector tabs.
B) Slide back edge of wind deflector up (4) to lock alignment tabs into place.
C) Install screws that secure wind deflector to control panel (5) with a Phillips
head screwdriver.
1
2
3
4
5
TOOLS NEEDED: - PHILLIPS
IGNITER MODULE WIRE GUIDE 310/320/330
Burner Tube
Left Burner (A)
Right Burner (B)
Center Burner (C)
Center Burner (D)
Wire End & Terminal Color
Black (1)
Yellow (2)
Blue (3)
Green (Ground) (4)
1
2
3
4
1
2
34
A BCD
1
2
3
4
1
2
34
A BC
330
310/320
1
1
1
2
2
2
3
3
3
4
4
4
A AB BCC D
D) Slide igniter wires into igniter wire clips (4).
IMPORTANT NOTE: All igniter wires must be installed and supported in
igniter wire clips (4) in order for ignition module to function properly.
Alignment Tab

Weber GENESIS Specifications

General

Ignition	Electronic
Main Burners	3
Total Cooking Area	669 square inches
Fuel Type	Propane or Natural Gas
BTU-per-hour Input	39, 000 BTU
Side Burner	Yes
Sear Station	Yes
Side Burner BTU	12, 000 BTU
Grill Type	Gas Grill
