Check

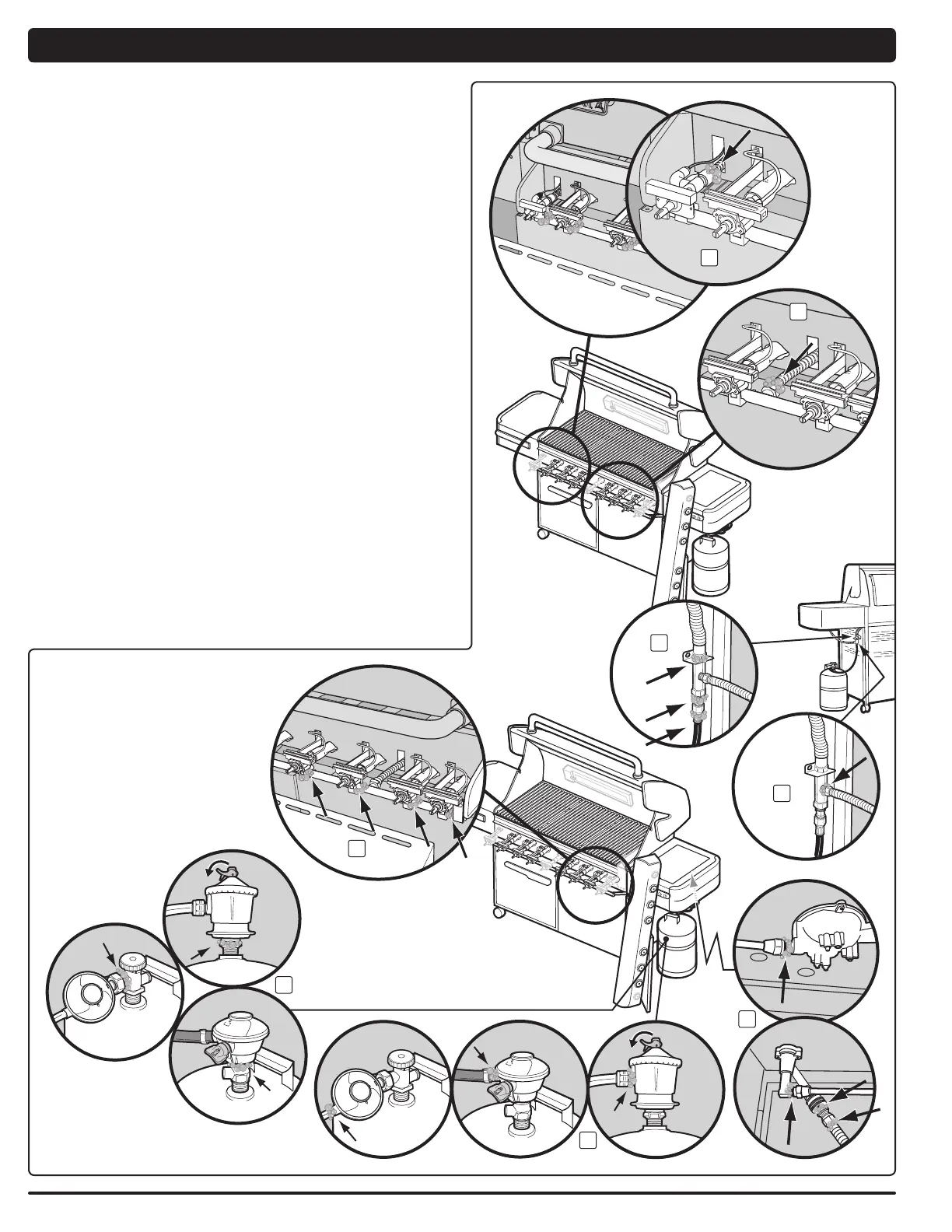

A) Main gas line-to-manifold connection (1).
B) Infrared Burner gas line connection (2).
C) Bulkhead and gas supply hose connection (3).
m WARNING: If there is a leak at connection (1, 2, or 3),
re-tighten the fitting with a spanner and recheck for leaks with
soap-and-water solution. If a leak persists after re-tightening the
fitting, turn o the gas. DO NOT OPERATE THE GRILL. Contact the
Customer Service Representative in your area using the contact
information on our web site.
Log onto www.weber.com.
D) Side burner hose to bulkhead connection (4).
E) Side burner hose to quick disconnect connection, side burner valve and orifice
connections (5).
F) Hose-to-regulator connection (6).
G) Regulator-to-cylinder connection (7).
H) Valves-to-manifold connection (8).
m WARNING: If there is a leak at connections (4, 5, 6, 7, or 8),
turn o the gas. DO NOT OPERATE THE GRILL. Contact the
Customer Service Representative in your area using the contact
information on our web site. Log onto www.weber.com.
When leak checks are complete, turn gas supply o at the source and rinse connections
with water.
Reinstall Control Panel
A) To reinstall the control panel assembly, reverse steps for “Remove Control Panel” as
previously described.
B) Verify proper wire connections. Refer to “LIGHT FEATURES”.
m WARNING: Make sure that all parts are assembled and hardware
is fully tightened before operating the grill. Your actions, if
you fail to follow this product warning, may cause a fire, an
explosion, or structural failure resulting in serious personal
injury or death as well as damage to property.
◆
