4.2 Push-button panel for co ee selections
4.4 Push-button panel for services
4.3
Display and browser key
5 Warnings for the installer
5.1 Power supply
The water supply of the appliance must be car-
ried out with water which is suitable for human
consumption, in compliance with the regulations in
force int the place of installation. The owner / man-
ager of the system must con rm to the installer that
the water meets the above listed requirements.
5.2 Materials to be used
During the installation of the appliance the com-
ponents and materials that were provided with the
appliance are to be used. Should the use of other
components be necessary, the installer must verify
their suitability to be used in contact with water
used for human consumption.
5.3 Hydraulic connections
The installer must carry out the hydraulic connec-
tions in accordance with the hygiene norms and the
hydraulic safety norms for environmental protection
in force in the place of installation.
5.4 Installation report
When installation is complete, the appliance
has to be started, brought to the nominal working
condition and left for 30 minutes in the "ready to
operate" condition.
Afterwards, the appliance has to be turned o
and emptied of the rst water introduced in the
whole hydraulic circuit, to eliminate possible initial
impurities.
Then the appliance must be once again loaded
and brought to the nominal working conditions.
After having reached the "ready to operate"
condition, the following deliveries have to be per-
formed:
for each co ee unit, carry out a continuous 1.
delivery, in order to release the whole volume
of water contained in each associated co ee
tank (1.2 liters);

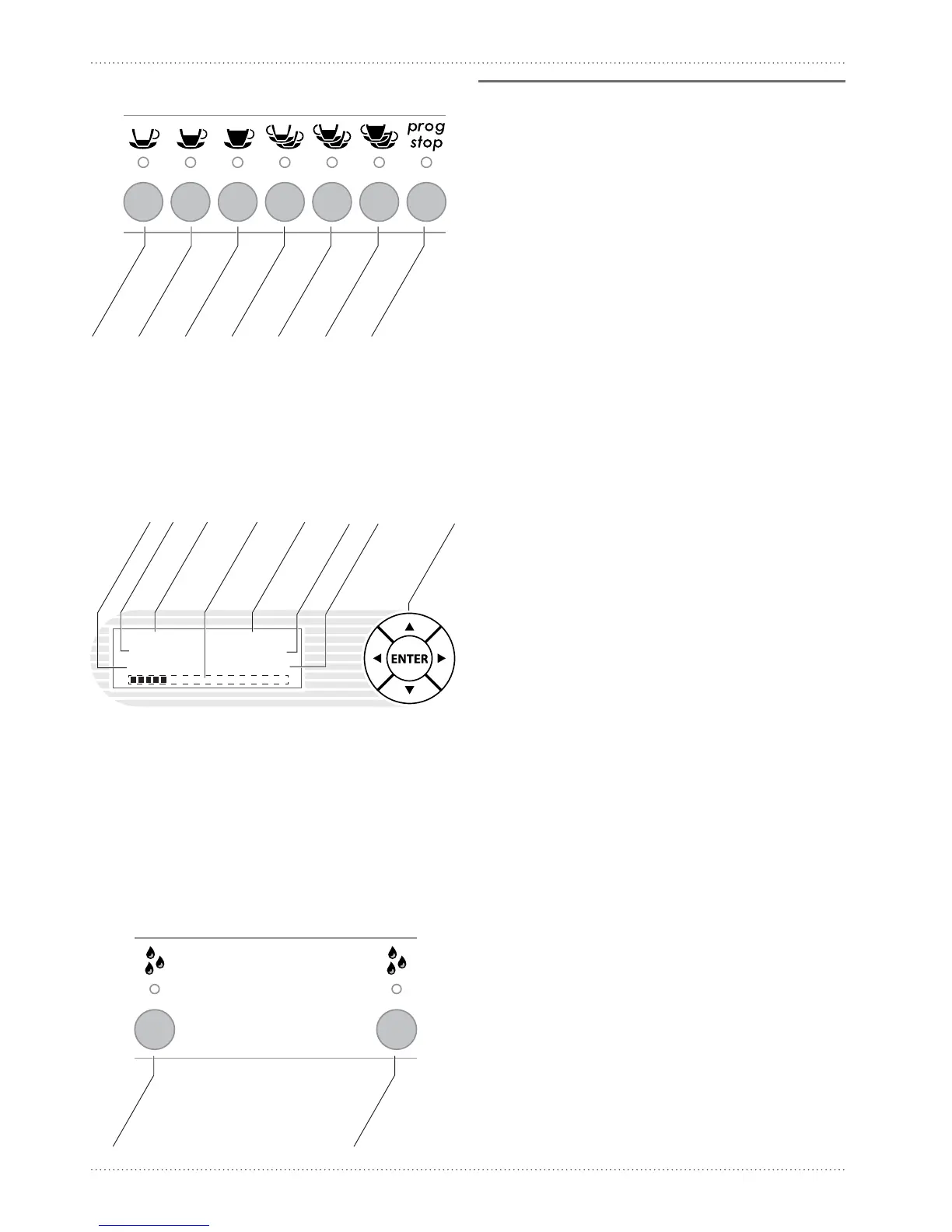

1.2 Bar Press 0.0
08:30 10-FEB-2011
Humidity 62% P 32%
1 Espresso
Boiler pressure
Browser key
Steam boiler
hydraulic circuit
Absorbed power
indicator
Hour
Ambient humidity
Date
Instantaneous
absorbed power
1 Medium co ee
1 Long co ee
2 Espressos
2 Medium co ees
2 Long co ees
Stop / Programming /
Continuous
Hot water
dose 2
Hot water
dose 1
To Next Page
