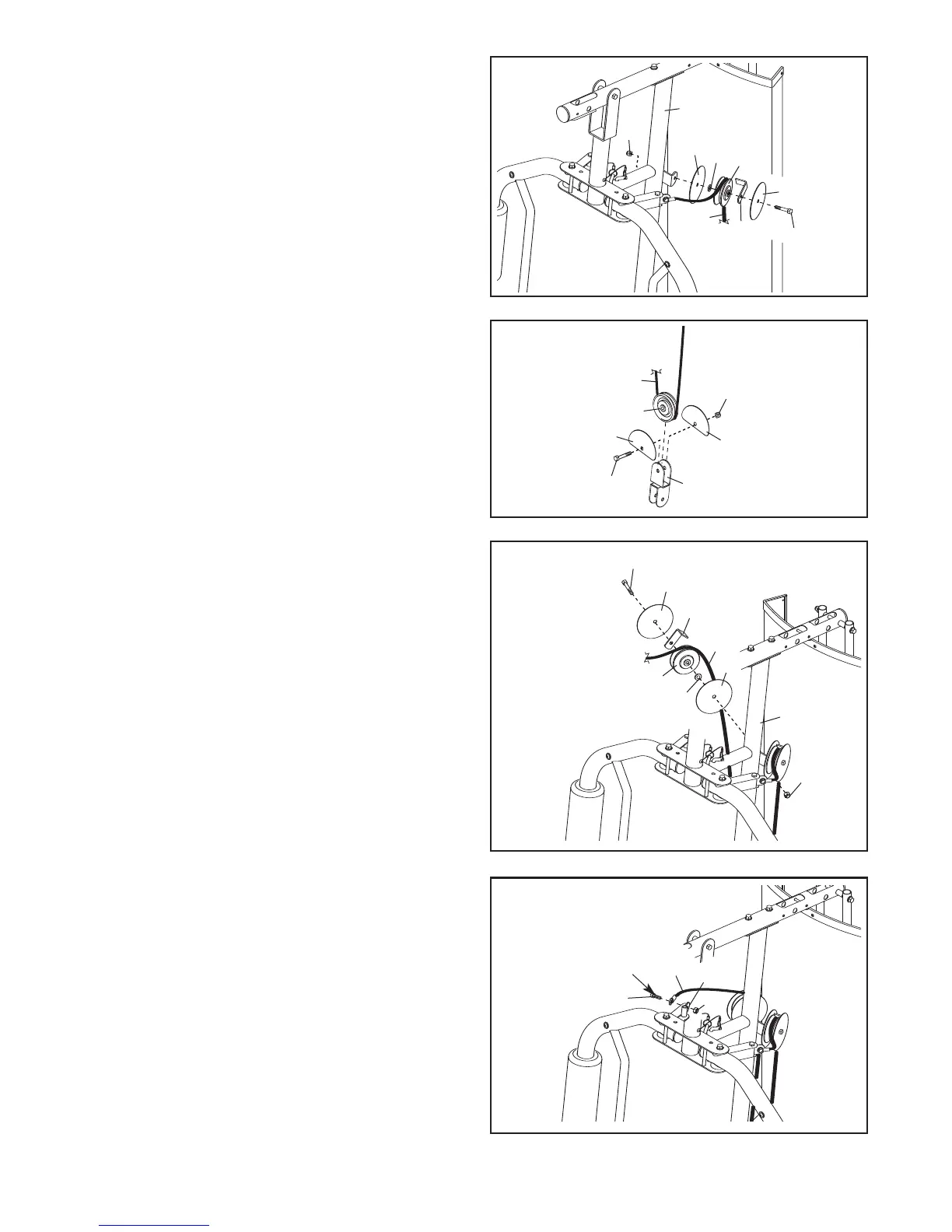

14. Identify the two “V”-pulleys (46), which are wider
than the other Pulleys (not shown). Route the
A
rm Cable (54) over a “V”-pulley. Attach the “V”-
pulley, a Large Cable Trap (50), two Full Finger
G
uards (41), and an M10 Washer (57) to the
Upright (3) with an M10 x 63mm Bolt (75) and an
M10 Nylon Locknut (56). Make sure that the
Cable Trap is oriented to hold the Cable in the
groove of the “V”-pulley.
16. Route the Arm Cable (54) over a “V”-pulley (46).
Attach the “V”-pulley, a Large Cable Trap (50),
two Full Finger Guards (41), and an M10 Washer
(57) to the Upright (3) with an M10 x 63mm Bolt
(75) and an M10 Nylon Locknut (56).
Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the “V”-pulley.
17. Grease an M8 x 22mm Shoulder Bolt (65). Attach
the Arm Cable (54) to the indicated Cable Pivot
(39) with the Shoulder Bolt and an M8 Nylon
Locknut (58).
15. Route the Arm Cable (54) under a 90mm Pulley
(48). Attach the Pulley and two Half Finger
Guards (43) to the Double “U”-Bracket (63) with
an M10 x 46mm Bolt (81) and an M10 Nylon
Locknut (56).
Make sure that the Half Finger
Guards are on the outside of the “U”-bracket
as shown.
