13

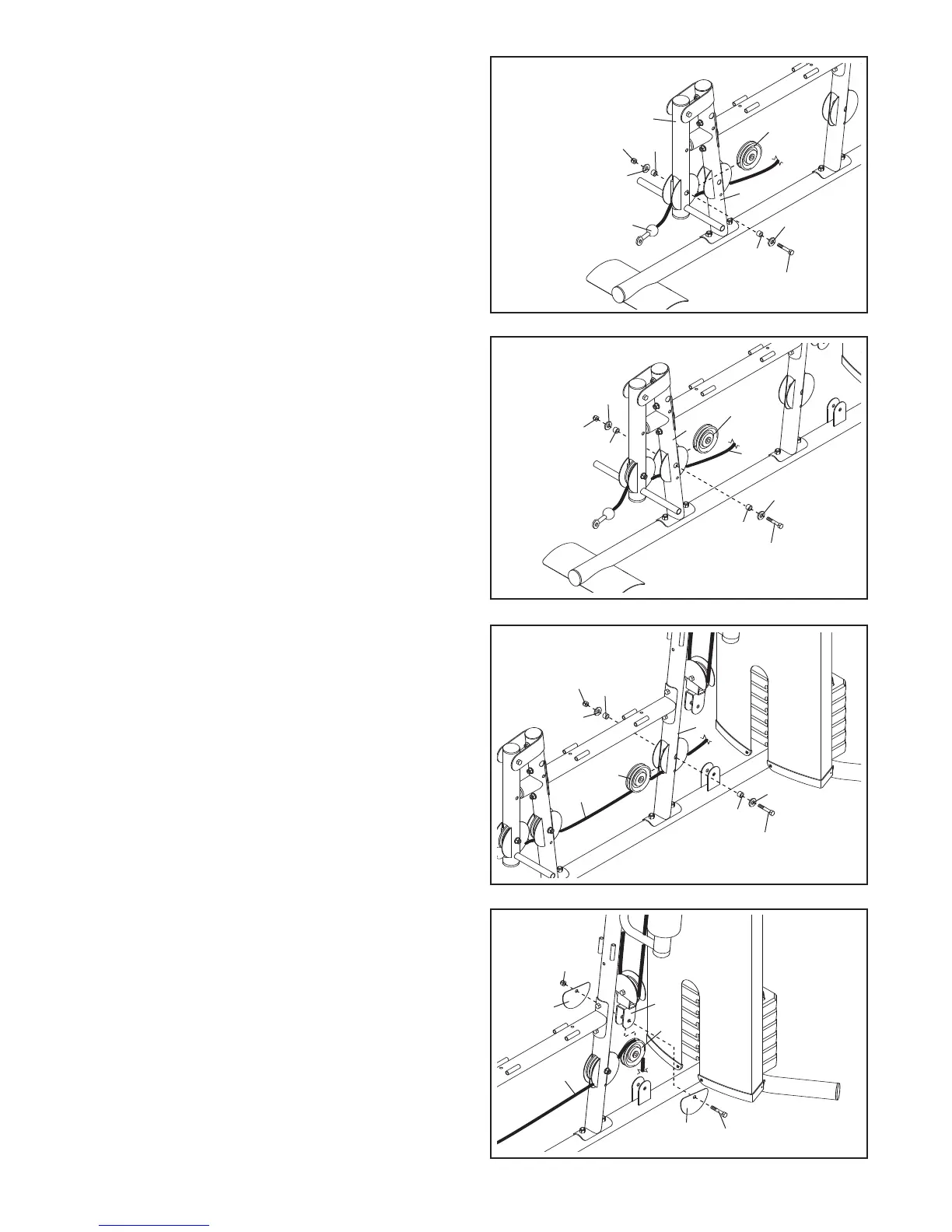

18. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(
8), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
20. Route the Low Cable (53) under a 90mm Pulley
(48) and through the Upright (3). Attach the Pulley
inside the Upright with an M10 x 67mm Bolt (71),
two M10 Washers (57), two 12mm Spacers (52),
and an M10 Nylon Locknut (56).
21. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley and two Half Finger
Guards (43) to the Double “U”-Bracket (63) with
an M10 x 46mm Bolt (81) and an M10 Nylon
Locknut (56). Make sure that the Half Finger
Guards are on the outside of the “U”-bracket
as shown.
19. Attach a 90mm Pulley (48) inside of the Front Leg
(7), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
18
8
7
53
52
52
57
57
48
71
56
19
56
7
53
52
52
57
57
48
71
20
56
3
53
52
52
57
57
48
71
21
56
53
48
43
43
63
81
To Next Page
