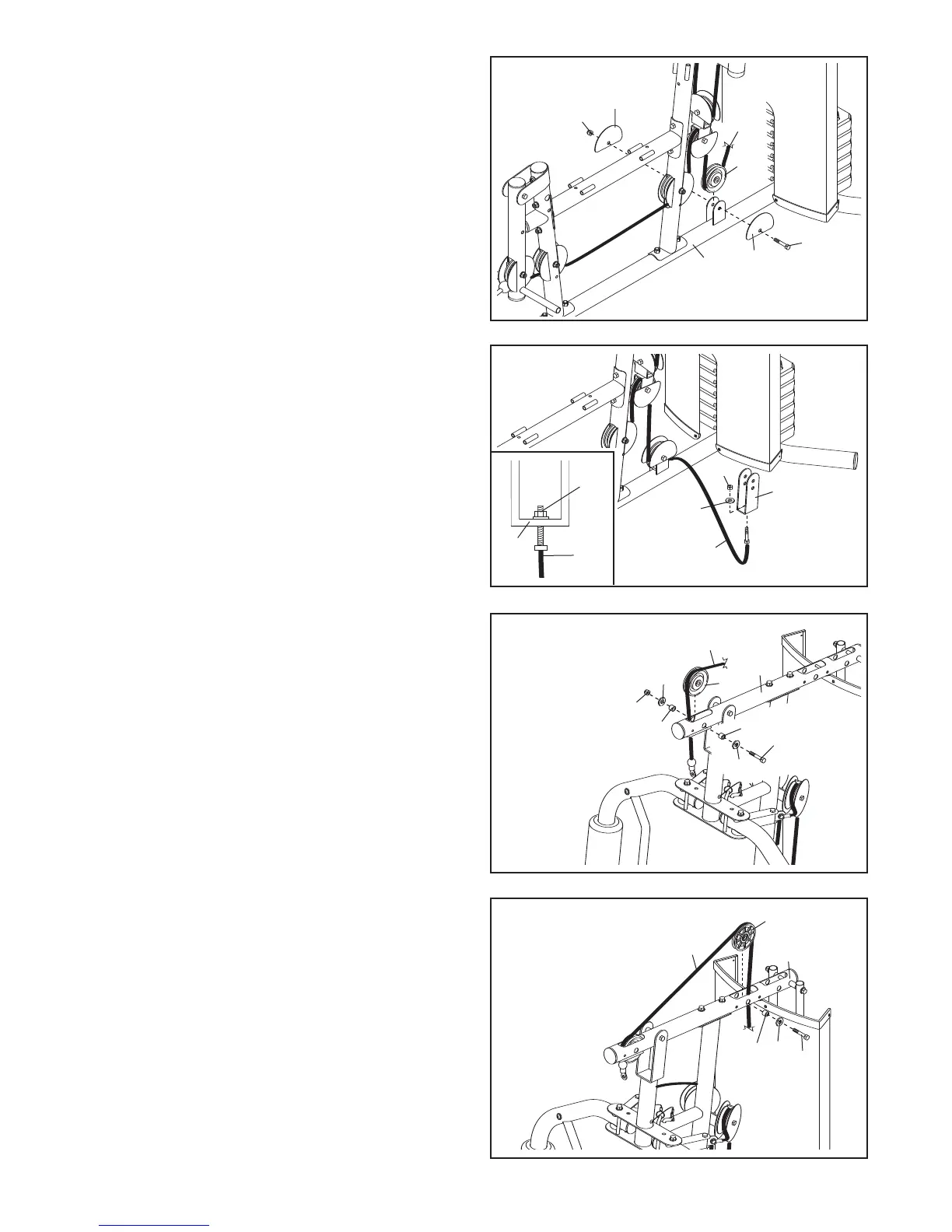

22. Route the Low Cable (53) under a 90mm Pulley
(48). Attach the Pulley and two Half Finger
G
uards (43) to the Base (1) with an M10 x 46mm
Bolt (81) and an M10 Nylon Locknut (56).
Make
s
ure that the Half Finger Guards are on the
outside of the bracket as shown.
24. Identify the High Cable (55). Route the Cable up
through the Top Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 67mm Bolt (71), two M10
Washers (57), two 12mm Spacers (52), and an
M10 Nylon Locknut (56).
25. Route the High Cable (55) over a 90mm Thin
Pulley (47) and down through the Top Frame (4).
Attach the Thin Pulley inside the Top Frame with
an M10 x 67mm Bolt (71), an M10 Washer (57),
and an 11mm Spacer (49). Make sure that the
Thin Pulley does not fall out of the Top Frame
while you complete steps 26 and 27.
23. Attach the Low Cable (53) to the “U”-bracket (45)
with an M8 Washer (59) an an M8 Nylon Locknut
(58).
See the inset drawing. Do not overtighten
the Nylon Locknut; it should be threaded onto
the end of the Cable so that only two threads
are showing above the Nylon Locknut.
