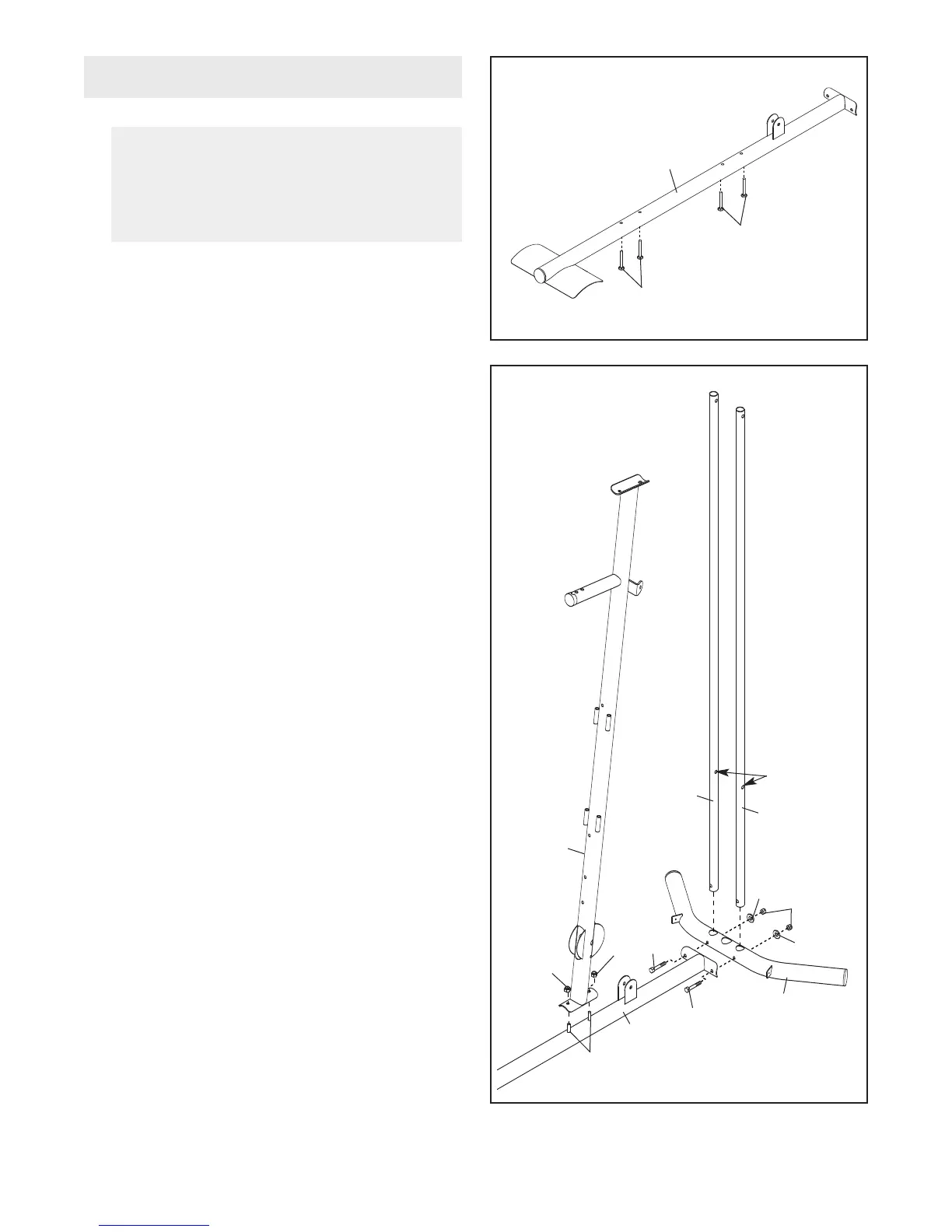

2. Attach the Base (1) and the two Weight Guides
(21) to the Stabilizer (2) with two M10 x 67mm
Bolts (71), two M10 Washers (57), and two M10
Nylon Locknuts (56).
Make sure that the indicat-
ed holes in the Weight Guides are nearer the
bottom. Fully tighten the Nylon Locknuts.
Attach the Upright (3) to the Base (1) with the
indicated two M8 x 63mm Carriage Bolts (78) and
two M8 Nylon Locknuts (58). Do not tighten the
Nylon Locknuts yet.
1.
Insert four M8 x 63mm Carriage Bolts (78) up
through the Base (1). Note: It may be helpful to
place a piece of tape over the bolt heads to
hold them in place.
Before beginning assembly, make sure that
you understand the information in the box
on page 6. See the PART IDENTIFICATION
CHART on page 5 for help identifying small
p
arts.
Frame Assembly
1
1
78
78
2
78
56
58
3
1
58
71
71
2
57
57
21
Holes
21
To Next Page
