8

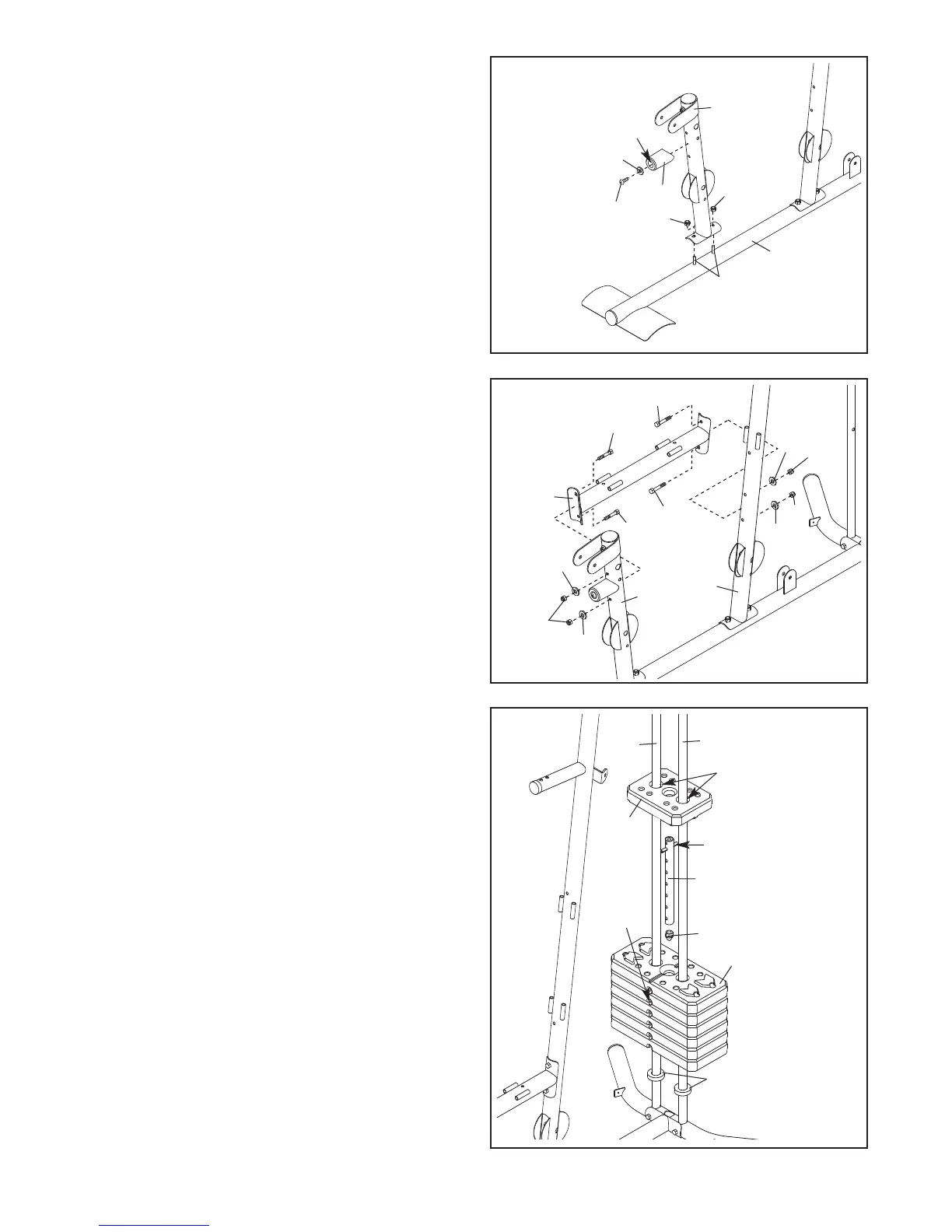

3. Attach the Front Leg (7) to the Base (1) with the
two indicated M8 x 63mm Carriage Bolts (78) and
t
wo M8 Nylon Locknuts (58). D
o not tighten the
Nylon Locknuts yet.
Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69) and
an M4 Washer (33). Make sure that the end of
the Bumper is angled upward.
4. Attach the Seat Frame (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers (59),
and two M8 Nylon Locknuts (58). Do not tighten
the Nylon Locknuts yet.
Attach the Seat Frame (6) to the Front Leg (7)
in the same way.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient the six Weights (22)
so that the pin holes are on the bottom as shown.
Slide the Weights onto the Weight Guides.
Insert the Weight Tube Cap (23) into the Weight
Tube (24). Insert the Weight Tube into the six
W
eights (22).
Make sure that the pin on the
W
eight T
ube is oriented as shown.
Grease the indicated holes in the Top Weight (25)
with the included grease packet. Slide the
T
op
Weight onto the Weight Guides (21).
3
4
78
58
58
69
33
Up
60
7
1
6
68
68
68
59
59
59
59
3
7
58
58
58
68
5
25
21
21
22
27
23
24
Pin
Pin
Hole
Grease
To Next Page
