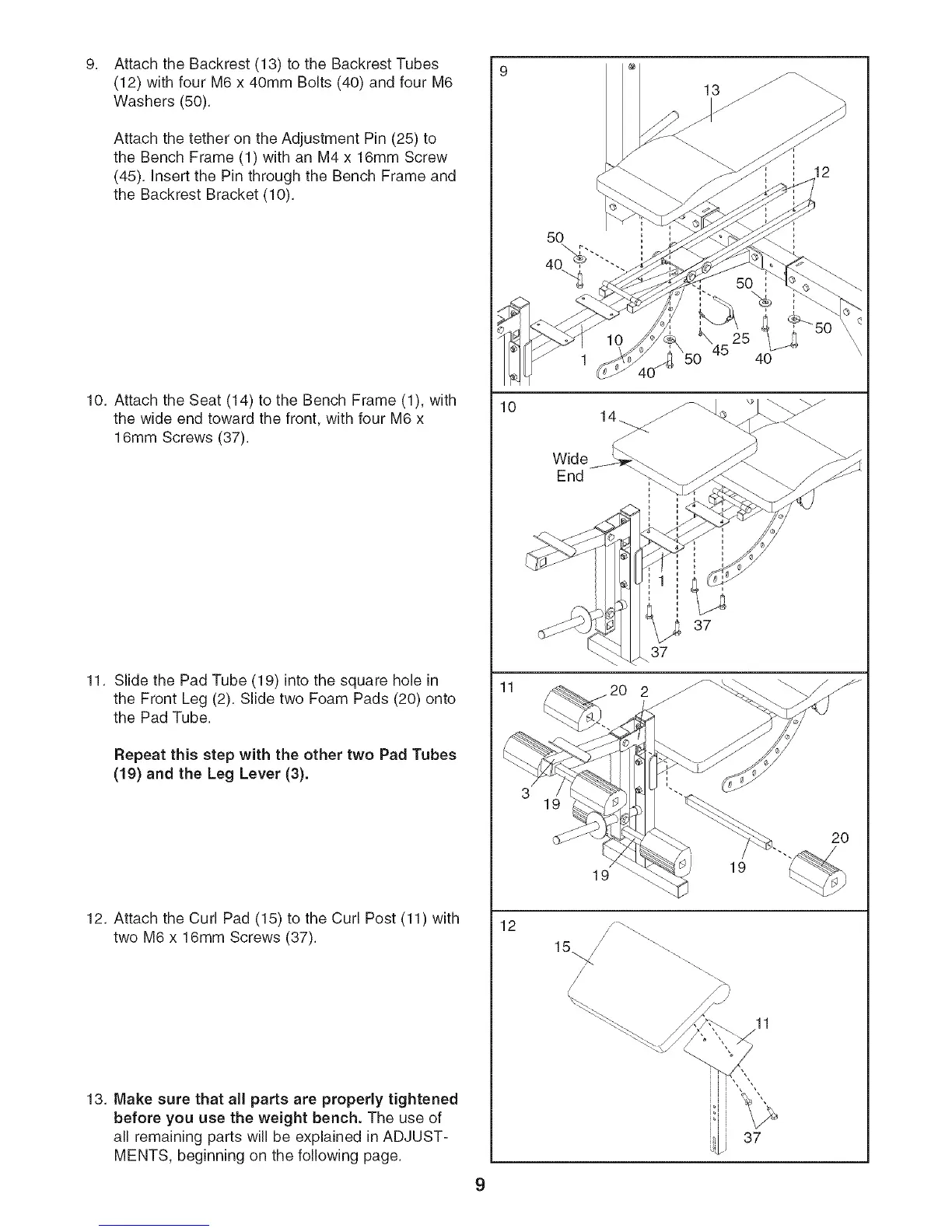

AttachtheBackrest(13)totheBackrestTubes
(12)withfourM6x40mmBolts(40)andfourM6
Washers(50).
AttachthetetherontheAdjustmentPin(25)to
theBenchFrame(1)withanM4x 16mmScrew
(45).InsertthePinthroughtheBenchFrameand
theBackrestBracket(10).
10.AttachtheSeat(14)totheBenchFrame(1),with
thewideendtowardthefront,withfourM6x
16mmScrews(37).
11.SlidethePadTube(19)intothesquareholein
theFrontLeg(2).SlidetwoFoamPads(20)onto
thePadTube.
Repeatthis stepwith the other two Pad Tubes
(19) and the Leg Lever (3).
12. Attach the Curl Pad (15) to the Curl Post (11) with
two M6 x 16mm Screws (37).
13. Make sure that all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in ADJUST-
MENTS, beginning on the following page.
9
10
11
12
50
Wide
End
50
25
45
4O
.20 2
19
19
/
11
20
To Next Page
