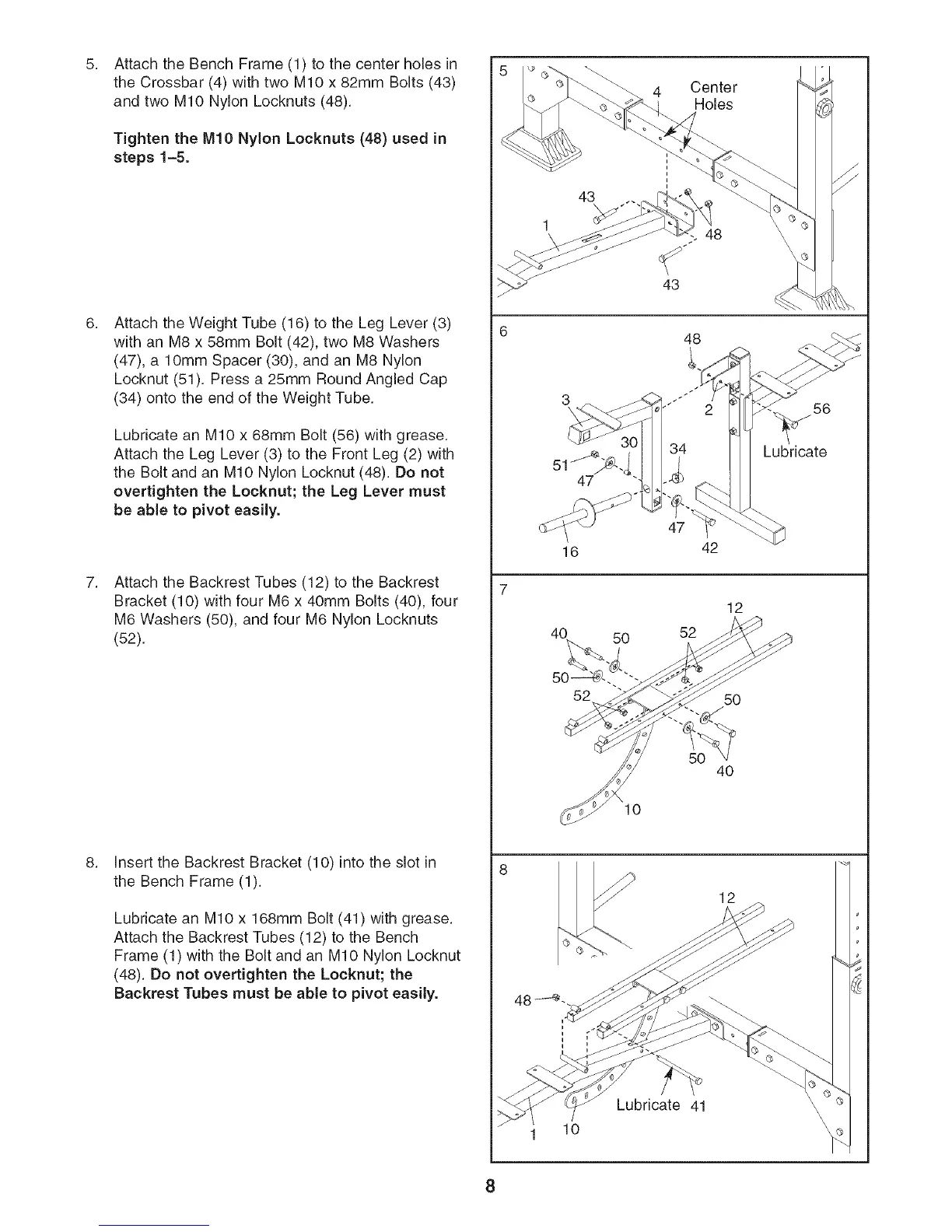

Attach the Bench Frame (1) to the center holes in
the Crossbar (4) with two MIO x 82mm Bolts (43)
and two MIO Nylon Locknuts (48).
Tighten the MIO Nylon Locknuts (48) used in
steps 1-5.
Attach the Weight Tube (16) to the Leg Lever (3)
with an M8 x 58mm Bolt (42), two M8 Washers
(47), a lOmm Spacer (30), and an M8 Nylon
Locknut (51). Press a 25mm Round Angled Cap
(34) onto the end of the Weight Tube.
Lubricate an MIO x 68mm Bolt (56) with grease.
Attach the Leg Lever (3) to the Front Leg (2) with
the Bolt and an MIO Nylon Locknut (48). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
Attach the Backrest Tubes (12) to the Backrest
Bracket (10) with four M6 x 40mm Bolts (40), four
M6 Washers (50), and four M6 Nylon Locknuts
(52).
Insert the Backrest Bracket (10) into the slot in
the Bench Frame (1).
Lubricate an MIO x 168mm Bolt (41) with grease.
Attach the Backrest Tubes (12) to the Bench
Frame (1) with the Bolt and an MIO Nylon Locknut
(48). Do not overtighten the Locknut; the
Backrest Tubes must be able to pivot easily.
4 Center
Holes
.48
43
48
56
47
Lubricate
42
40
50
52
12
52 50
5O
40
10
12
10
Lubricate 41
To Next Page
