7

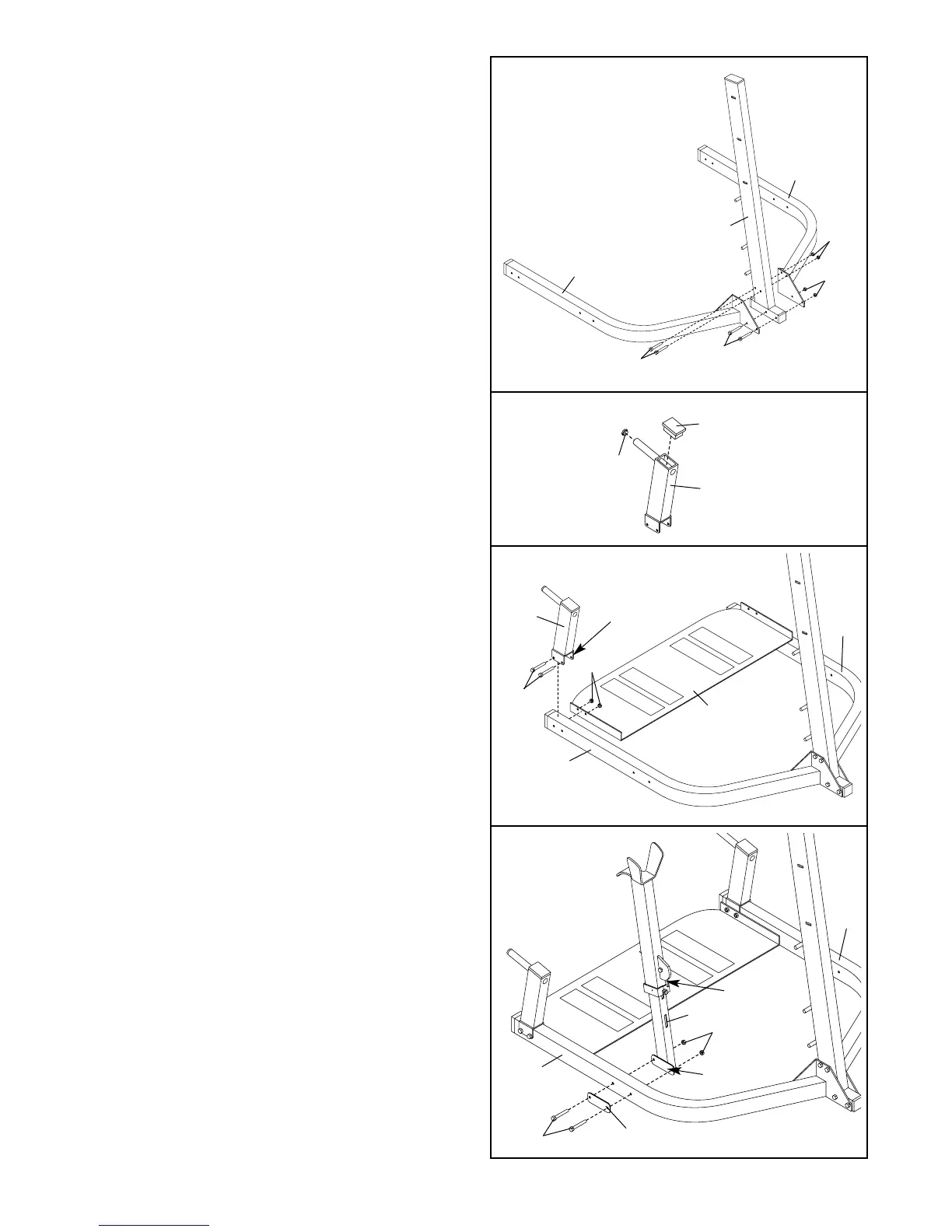

3. Attach the Left and Right Bases (2, 3) to the
Center Base (4) with four M8 x 67mm Bolts (27)
and four M8 Nylon Locknuts (33). Do not tighten
the Locknuts yet.
5. Orient the Floor Base (1) as shown. Set the
bracket on a Weight Rack (5) over the indicated
holes in the Left Base (2). Attach the Weight Rack
and the Floor Base to the Left Base with two M8
x 67mm Bolts (27) and two M8 Nylon Locknuts
(33). Be sure the Floor Base is attached out-
side of the bracket on the Weight Rack.
Attach the other Weight Rack (5) to the Right
Base (3) in the same manner.
Tighten the M8 Nylon Locknuts (33) used in
step 3.
4. Press a 50mm x 70mm Inner Cap (46) into the
top of a Weight Rack (5). Press a 25.4mm Round
Inner Cap (29) into the end of the tube on the
Weight Rack.
Repeat this step with the other Weight Rack
(5).
3
4
5
2
46
5
5
3
29
27
2
1
33
3
4
27
27
33
33
6. Identify the Left Upright (6) by the position of the
bracket at the bottom. Orient the Left Upright so
that the latch is on the side shown.
Attach the Left Upright (6) to the Left Base (2)
with two M8 x 67mm Bolts (27), a Support Plate
(38), and two M8 Nylon Locknuts (33).
Attach the Right Upright (not shown) to the Right
Base (3) in the same manner.
6
2
6
3
33
Bracket
Latch
38
27
Bracket
To Next Page
