6
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.

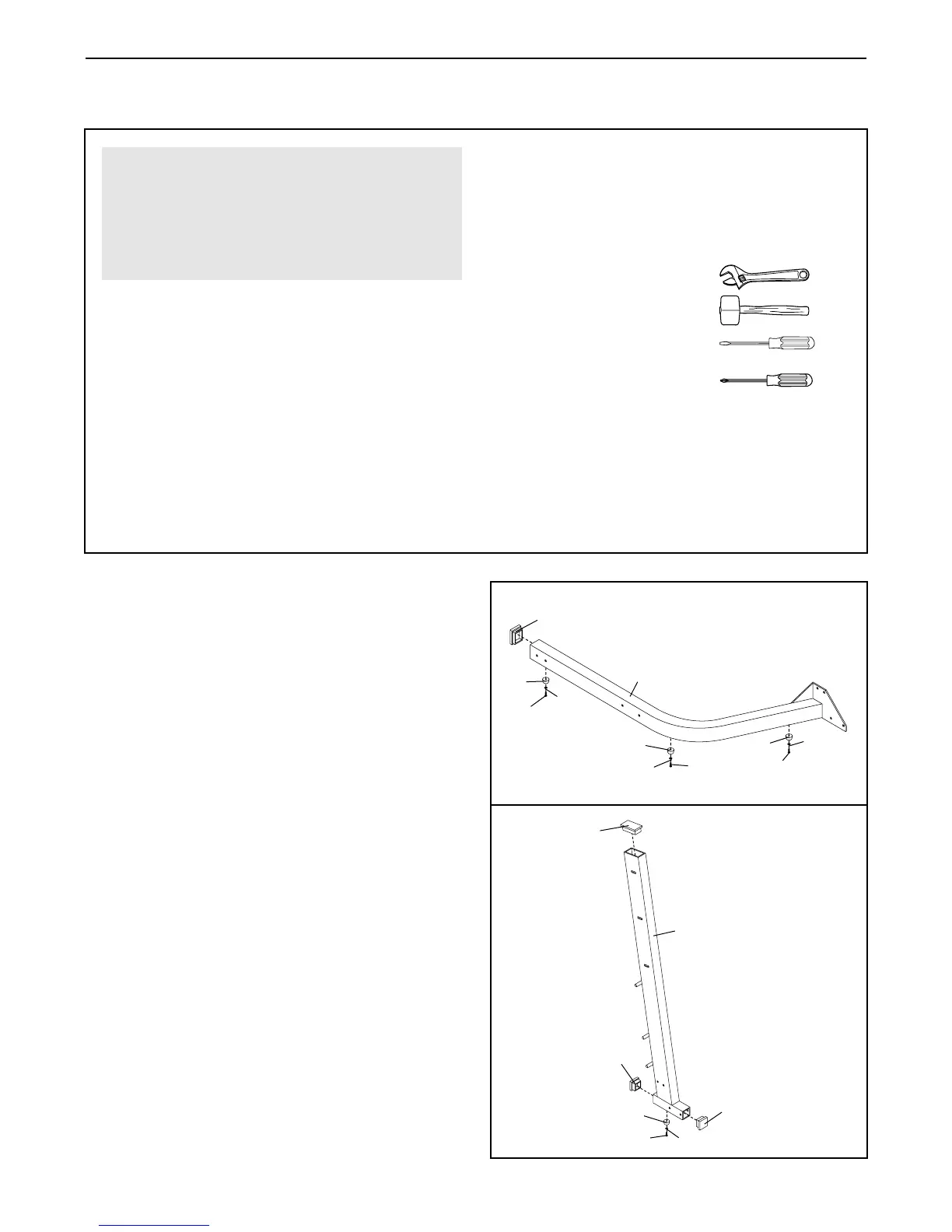

The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.
ASSEMBLY
1. Before beginning assembly, be sure that you
have read and understand the information in
the box above.
Press a 50mm x 70mm Inner Cap (46) into the
end of the Left Base (2). Attach three Rubber
Pads (37) to the bottom of the Left Base with
three M4 x 16mm Self-tapping Screws (42) and
three M4 Washers (49).
Repeat this step with the Right Base (3).
2. Press a 50mm x 100mm Inner Cap (44) into the
top of the Center Upright (4). Press two 50mm
Square Inner Caps (47) into the base on the
Center Upright.
Attach a Rubber Pad (37) to the bottom of the
Center Upright (4) with an M4 x 16mm Self-tap-
ping Screw (42) and an M4 Washer (49).
46
42
49
49
49
42
42
49
42
37
37
37
37
2
4
47
47
44
1
2
