9

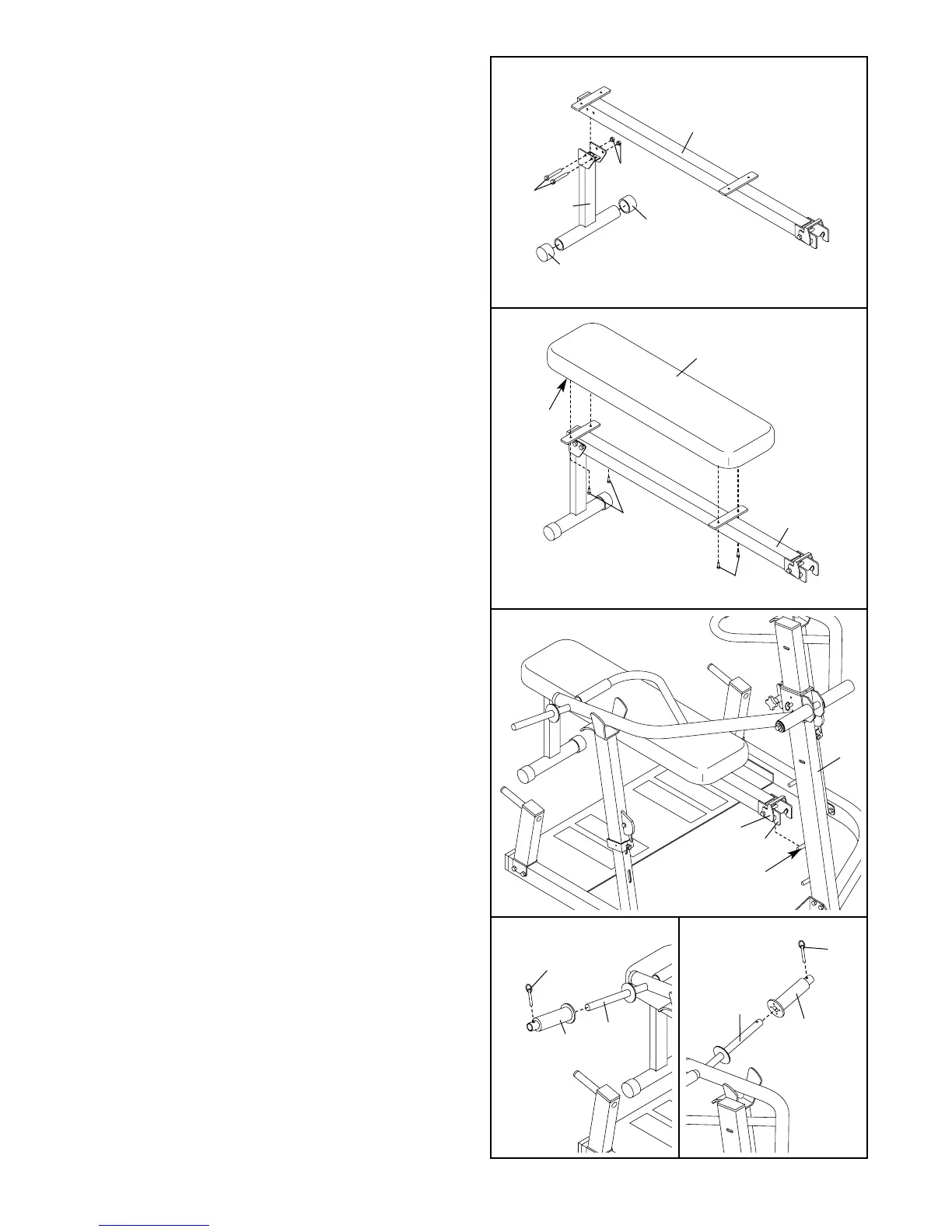

11. Orient the Seat (15) so that the holes that are
closer to the edge of the Seat are on the indicat-
ed end. Attach the Seat to the Bench Frame (14)
with four M6 x 16mm Screws (28).
13. If you are going to use Olympic weights, slide an
Olympic Adapter (17) onto each Press Arm (10,
11). Secure the Olympic Adapters with the two
Ring Pins (18). Flip the ring on the Ring Pin down
around the end of the tube.
14. Make sure that all parts have been properly tight-
ened before using the weight bench.
12. Set the Bench Frame (14) onto a welded rod on
the Center Upright (4). Press the Bench Lock (16)
down to secure the Bench Frame in place.
11
12
13
15
Holes
14
14
11
17
17
10
18
18
16
4
Welded
Rod
28
28
10. Press the two 50mm Round Outer Caps (26) onto
the ends of the Bench Leg (13).
Orient the Bench Leg (13) as shown. Attach the
Bench Leg to the Bench Frame (14) with two M8
x 77mm Bolts (48) and two M8 Nylon Locknuts
(33).
10
14
13
48
33
26
26
To Next Page
