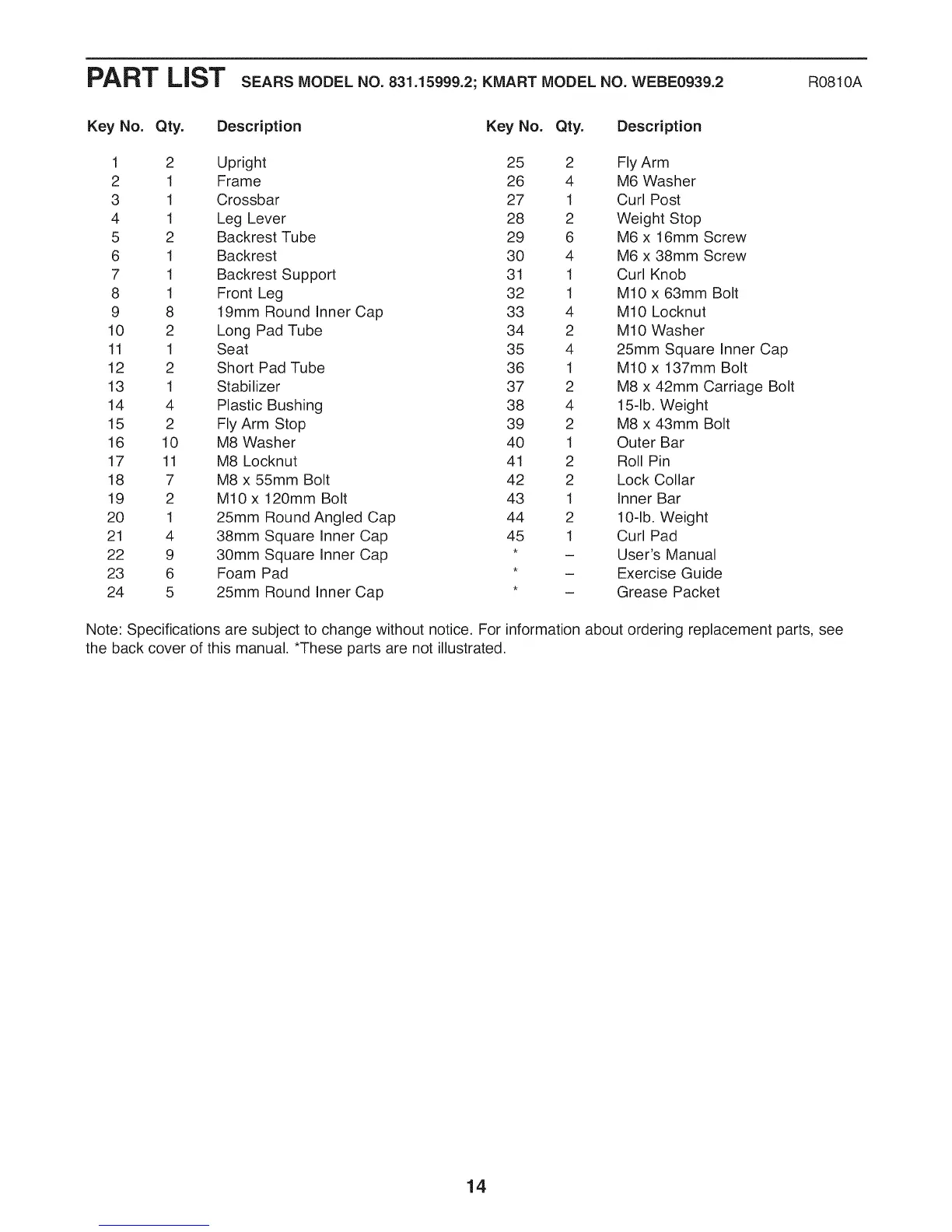

PART LiST SEARSMODELNO.831.1S999.2;KMARTMODELNO.WEBE0939.2 R0810A
Key No. Qty. Description Key No. Qty. Description
1 2 Upright 25 2 Fly Arm
2 1 Frame 26 4 M6 Washer
3 1 Crossbar 27 1 Curl Post
4 1 Leg Lever 28 2 Weight Stop
5 2 Backrest Tube 29 6 M6 x 16mm Screw
6 1 Backrest 30 4 M6 x 38mm Screw
7 1 Backrest Support 31 1 Curl Knob
8 1 Front Leg 32 1 M10 x 63mm Bolt
9 8 19mm Round inner Cap 33 4 M10 Locknut
10 2 Long Pad Tube 34 2 M10 Washer
11 1 Seat 35 4 25mm Square inner Cap
12 2 Short Pad Tube 36 1 M10 x 137mm Bolt
13 1 Stabilizer 37 2 M8 x 42mm Carriage Bolt
14 4 Plastic Bushing 38 4 15-1b, Weight
15 2 Fly Arm Stop 39 2 M8 x 43mm Bolt
16 10 M8 Washer 40 1 Outer Bar
17 11 M8 Locknut 41 2 Roll Pin
18 7 M8 x 55mm Bolt 42 2 Lock Collar
19 2 M10 x 120mm Bolt 43 1 inner Bar
20 1 25mm Round Angled Cap 44 2 10-lb. Weight
21 4 38mm Square inner Cap 45 1 Curl Pad
22 9 30mm Square inner Cap * - User's Manual
23 6 Foam Pad * - Exercise Guide
24 5 25mm Round inner Cap * - Grease Packet
Note: Specifications are subject to change without notice, For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
