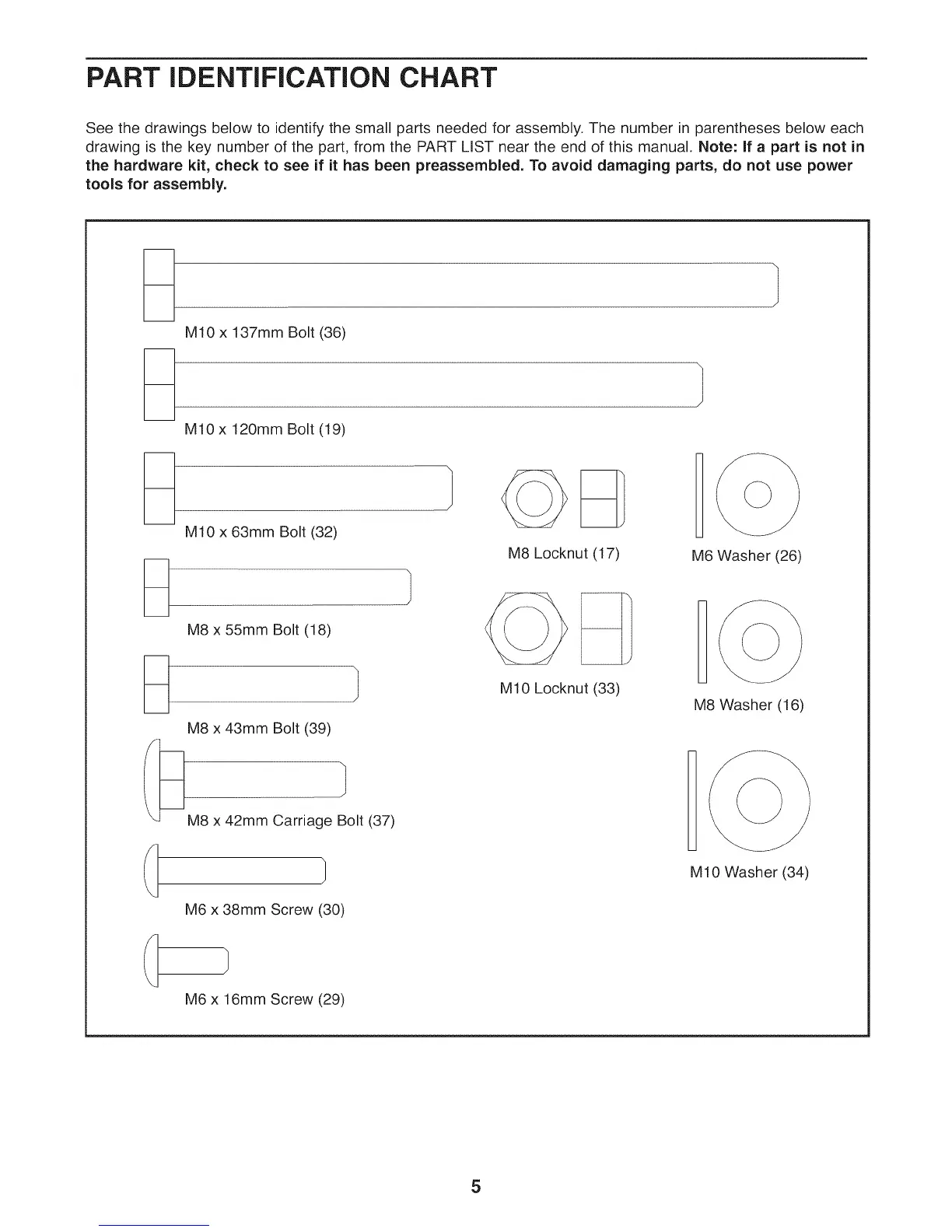

PART iDENTiFiCATiON CHART
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in
the hardware kit, check to see if it has been preassembled. To avoid damaging parts, do not use power
tools for assembly.
M10 x 137mm Bolt (36)
M10 x 120mm Bolt (19)
M10 x 63mm Bolt (32)
M8 x 55mm Bolt (18)
M8 x 43mm Bolt (39)
J
M8 x 42mm Carriage Bolt (37)
M8 Locknut (17)
M10 Locknut (33)
H
M6 Washer (26)
M8 Washer (16)
M6 x 38mm Screw (30)
M10 Washer (34)
M6 x 16mm Screw (29)
5
