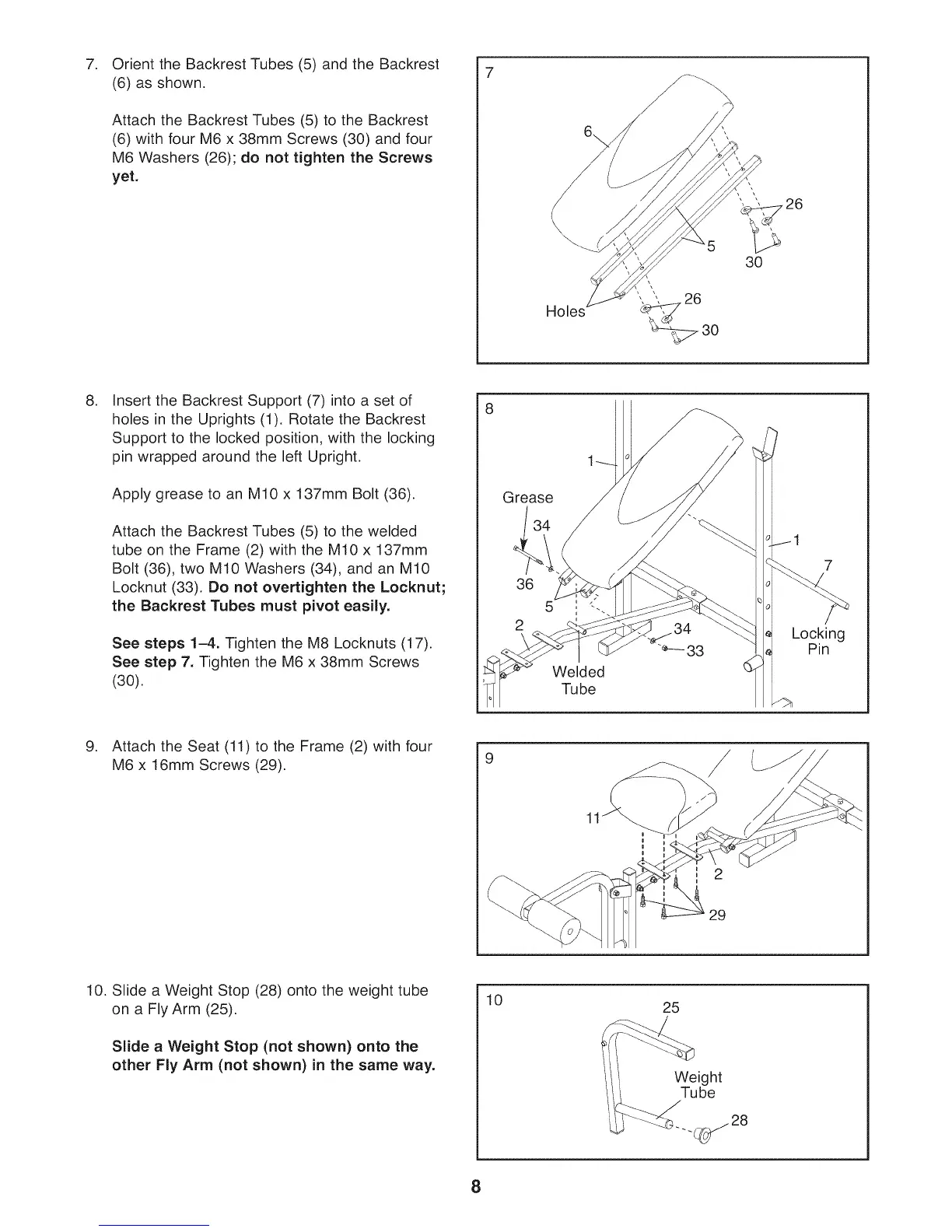

Orient the Backrest Tubes (5) and the Backrest
(6) as shown.
Attach the Backrest Tubes (5) to the Backrest
(6) with four M6 x 38mm Screws (30) and four
M6 Washers (26); do not tighten the Screws
yet.
Holes
30
,
Insert the Backrest Support (7) into a set of
holes in the Uprights (1), Rotate the Backrest
Support to the locked position, with the locking
pin wrapped around the left Upright.
Apply grease to an M10 x 137mm Bolt (36).
Attach the Backrest Tubes (5) to the welded
tube on the Frame (2) with the M10 x 137mm
Bolt (36), two M10 Washers (34), and an M10
Locknut (33), Do not overtighten the Locknut;
the Backrest Tubes must pivot easily.
See steps 1-4. Tighten the M8 Locknuts (17).
See step 7. Tighten the M6 x 38mm Screws
(30).
Grease
34
36
5
2
Welded
Tube
7
Locking
Pin
,
Attach the Seat (11) to the Frame (2) with four
M6 x 16mm Screws (29). /
2
29
10. Slide a Weight Stop (28) onto the weight tube
on a Fly Arm (25).
Slide a Weight Stop (not shown) onto the
other Fly Arm (not shown) in the same way.
10
25
Weight
Tube
8
