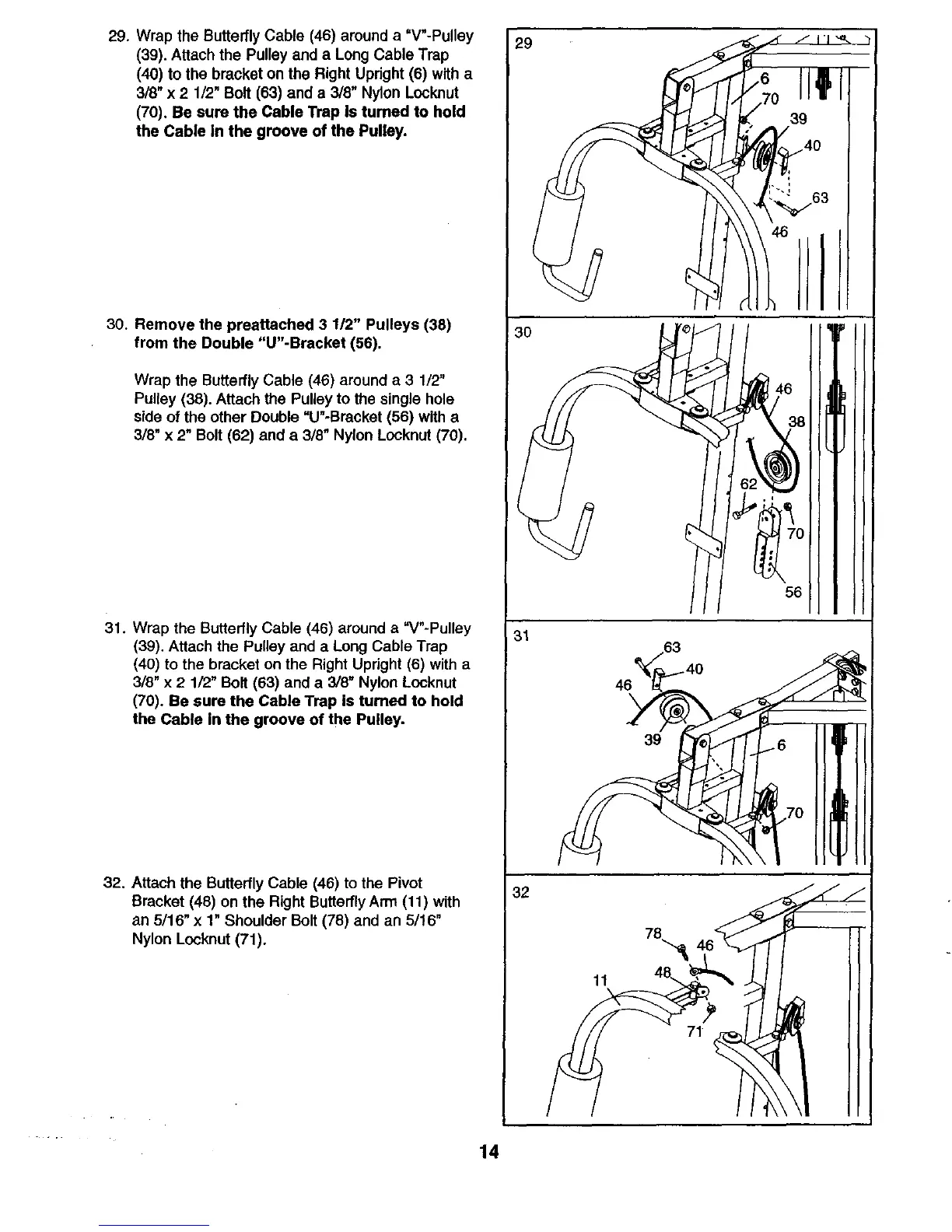

29. Wrap the Butterfly Cable (46) around a =V"-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Right Upright (6) with a
318" x 2 1/2" Bolt (63) and a 3/8" Nylon Locknut
(70). Be sure the Cable Trap Is turned to hold
the Cable In the groove of the Pulley.
30. Remove the preattached 3 1/2" Pulleys (38)
from the Double "U"-Bracket (56).
Wrap the Butterfly Cable (46) around a 3 1/2"
Pulley (38). Attach the Pulley to the single hole
side of the other Double "U"-Bracket (56) with a
3/8" x 2" Bolt (62) and a 3/8" Nylon Locknut (70).
31. Wrap the Butterfly Cable (46) around a "V"-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Right Upright (6) with a
3/8" x 2 1/2" Bolt (63) and a 3/8" Nylon Locknut
(70). Be sure the Cable Trap is turned to hold
the Cable in the groove of the Pulley.
32. Attach the Butterfly Cable (46) to the Pivot
Bracket (48) on the Right ButterflyArm (11) with
an 5/16" x 1" Shoulder Bolt (78) and an 5/16"
Nylon Locknut (71).
30
/// 56
31
39
32
11
14
