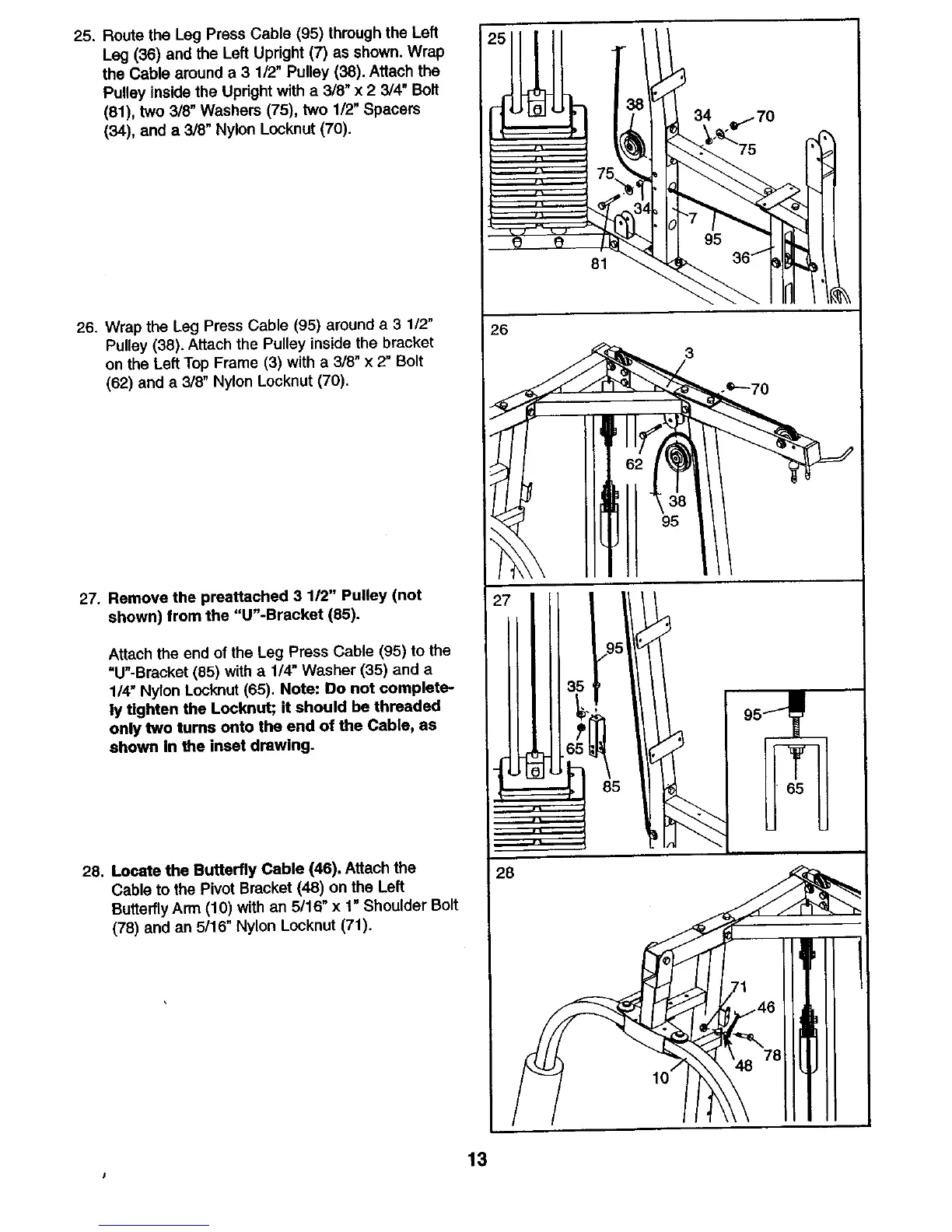

25. Route the Leg Press Cable (95) through the Left
Leg (36) and the Left Upright (7) as shown. Wrap
the Cable around a 3 1/2" Pulley (38). Attach the
Pulley inside the Upright with a 318"x 2 3/4" Bolt
(81), two 3/8" Washers (75), two 1/2" Spacers
(34), and a 3/8" Nylon Locknut (70).
26. Wrap the Leg Press Cable (95) around a 3 1/2"
Pulley (38). Attach the Pulley inside the bracket
on the Left Top Frame (3) with a 3/8" x 2" Bolt
(62) and a 3/8" Nylon Locknut (70).
27. Remove the preattached 3 1/2" Pulley (not
shown) from the "U"-Bracket (85).
Attach the end of the Leg Press Cable (95) to the
=U"-Bracket (85) with a 1/4" Washer (35) and a
1/4" Nylon Locknut (65). Note: Do not complete-
ly tighten the Locknut; it should be threaded
only two turns onto the end of the Cable, as
shown in the inset drawing.
28. Locate the Butterfly Cable (46). Attach the
Cable to the Pivot Bracket (48) on the Left
ButterflyArm (10) with an 5/16" x 1" Shoulder Bolt
(78) and an 5/16" Nylon Locknut (71).
81
26
28
10
13
