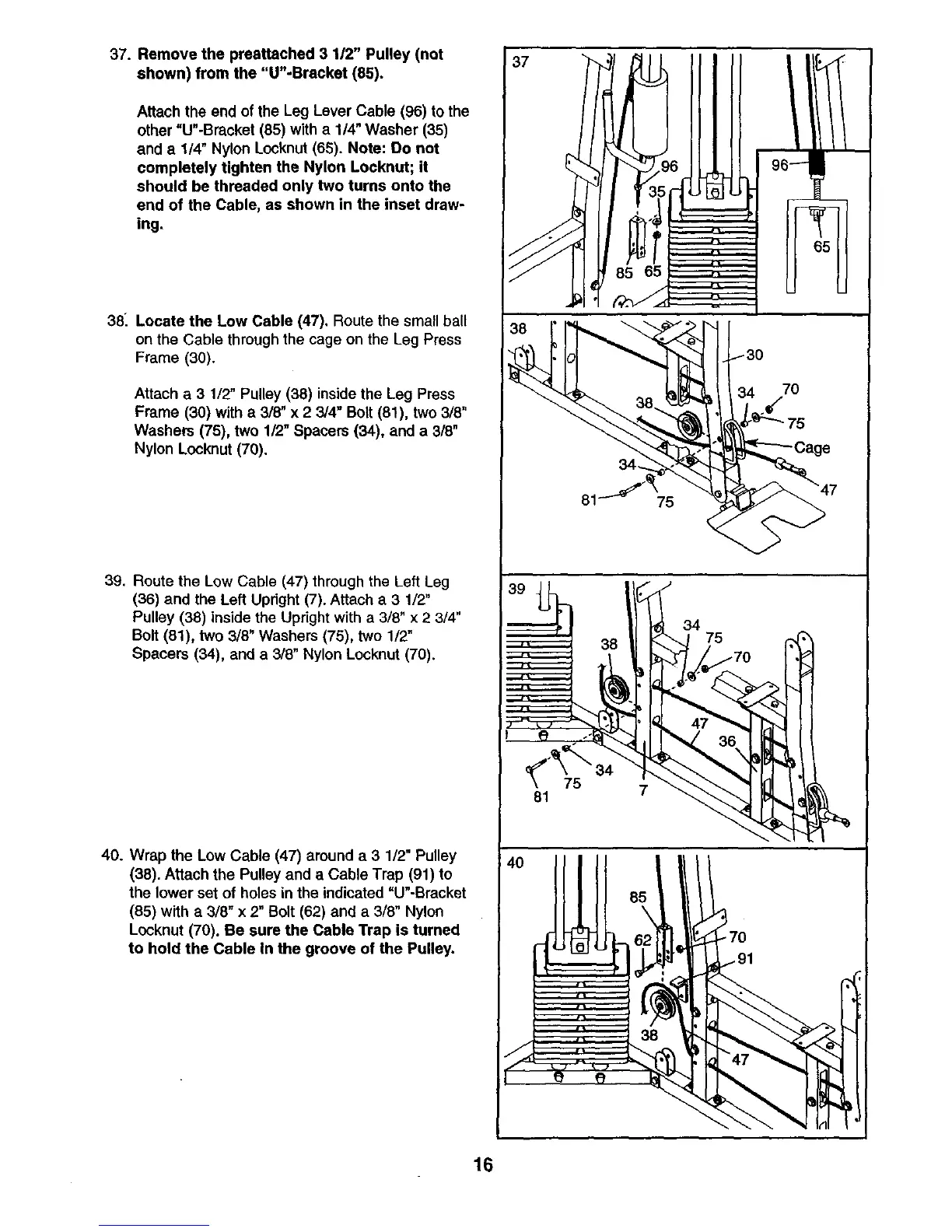

37. Remove the preettached 3 112" Pulley (not
shown) from the "U"-Bracket (85).
Attach the end of the Leg Lever Cable (96) to the
other =U"-Bracket (85) with a 1/4" Washer (35)
and a 1/4" Nylon Locknut (65). Note: Do not
completely tighten the Nylon Locknut; it
should be threaded only two turns onto the
end of the Cable, as shown in the inset draw-
ing.
38_ Locate the Low Cable (47), Route the small ball
on the Cable through the cage on the Leg Press
Frame (30).
Attach a 3 1/2" Pulley (38) inside the Leg Press
Frame (30) with a 3/8" x 2 3/4" Bolt (81), two 3/8"
Washers (75), two 1/2" Spacers (34), and a 3/8"
Nylon Locknut (70).
39. Route the Low Cable (47) through the Left Leg
(36) and the Left Upright (7). Attach a 3 1/2"
Pulley (38) inside the Upright with a 3/8" x 2 3/4"
Bolt (81), two 3/8" Washers (75), two 1/2"
Spacers (34), and a 3/8" Nylon Locknut (70).
40. Wrap the Low Cable (47) around a 3 1/2" Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the lower set of holes in the indicated =U'-Bracket
(85) with a 318" x 2" Bolt (62) and a 3/8" Nylon
Locknut (70). Be sure the Cable Trap is turned
to hold the Cable In the groove of the Pulley.
