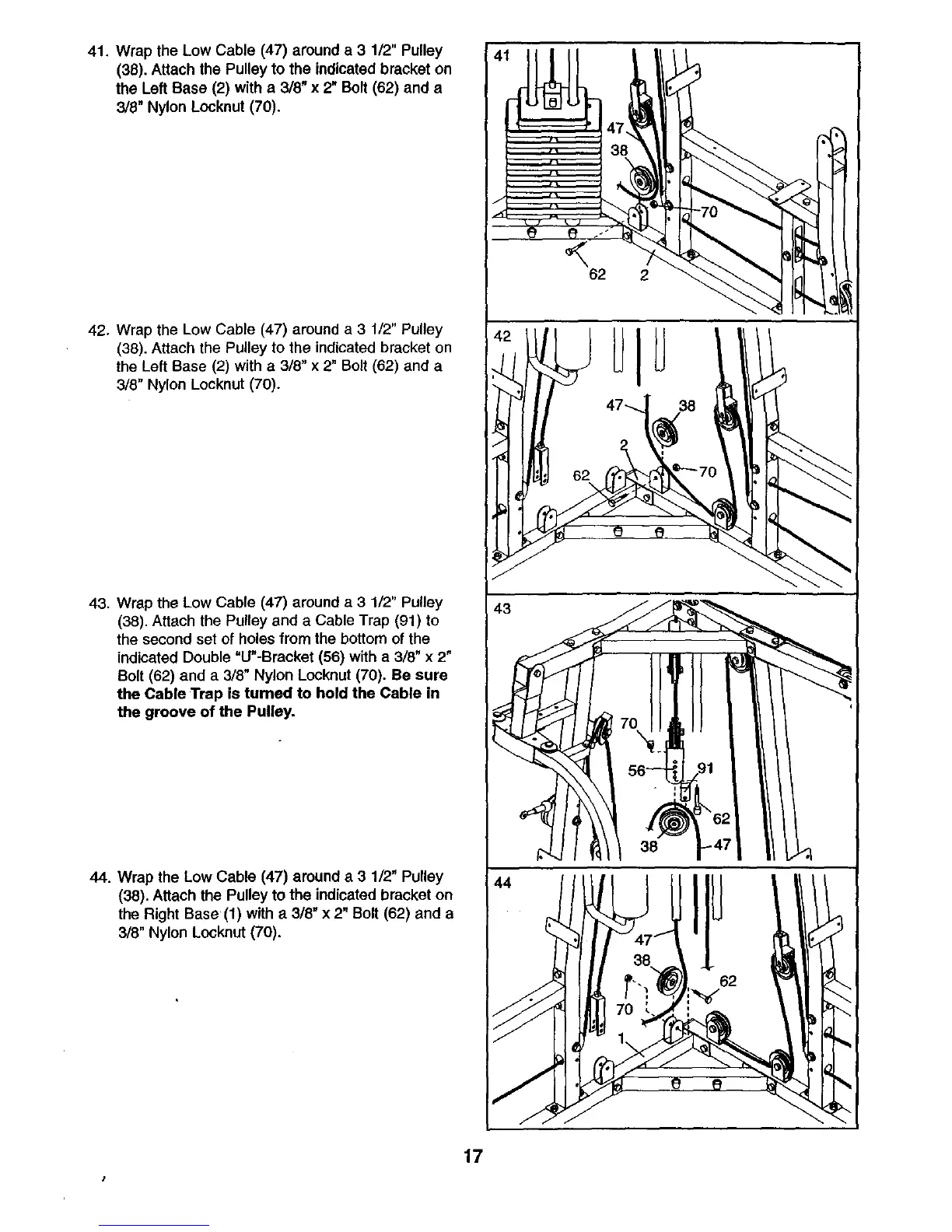

41. Wrap the Low Cable (47) around a 3 1/2" Pulley
(38). Attach the Pulley to the indicated bracket on
the Left Base (2) with a 3/8" x 2" Bolt (62) and a
3/8" Nylon Locknut (70).
42. Wrap the Low Cable (47) around a 3 1/2" Pulley
(38). Attach the Pulley to the indicated bracket on
the Left Base (2) with a 3/8" x 2" Bolt (62) and a
3/8" Nylon Lecknut (70).
43. Wrap the Low Cable (47) around a 3 1/2" Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the second set of holes from the bottom of the
indicated Double =U"-Bracket (56) with a 3/8" x 2"
Bolt (62) and a 3/8" Nylon Locknut (70). Be sure
the Cable Trap is turned to hold the Cable in
the groove of the Pulley.
44. Wrap the Low Cable (47) around a 3 1/2" Pulley
(38). Attach the Pulley to the indicated bracket on
the Right Base (1) with a 3/8" x 2" Bolt (62) and a
3/8" Nylon Locknut (70).
56- ,:1 I till
r I ;.3
¢ ql
17
