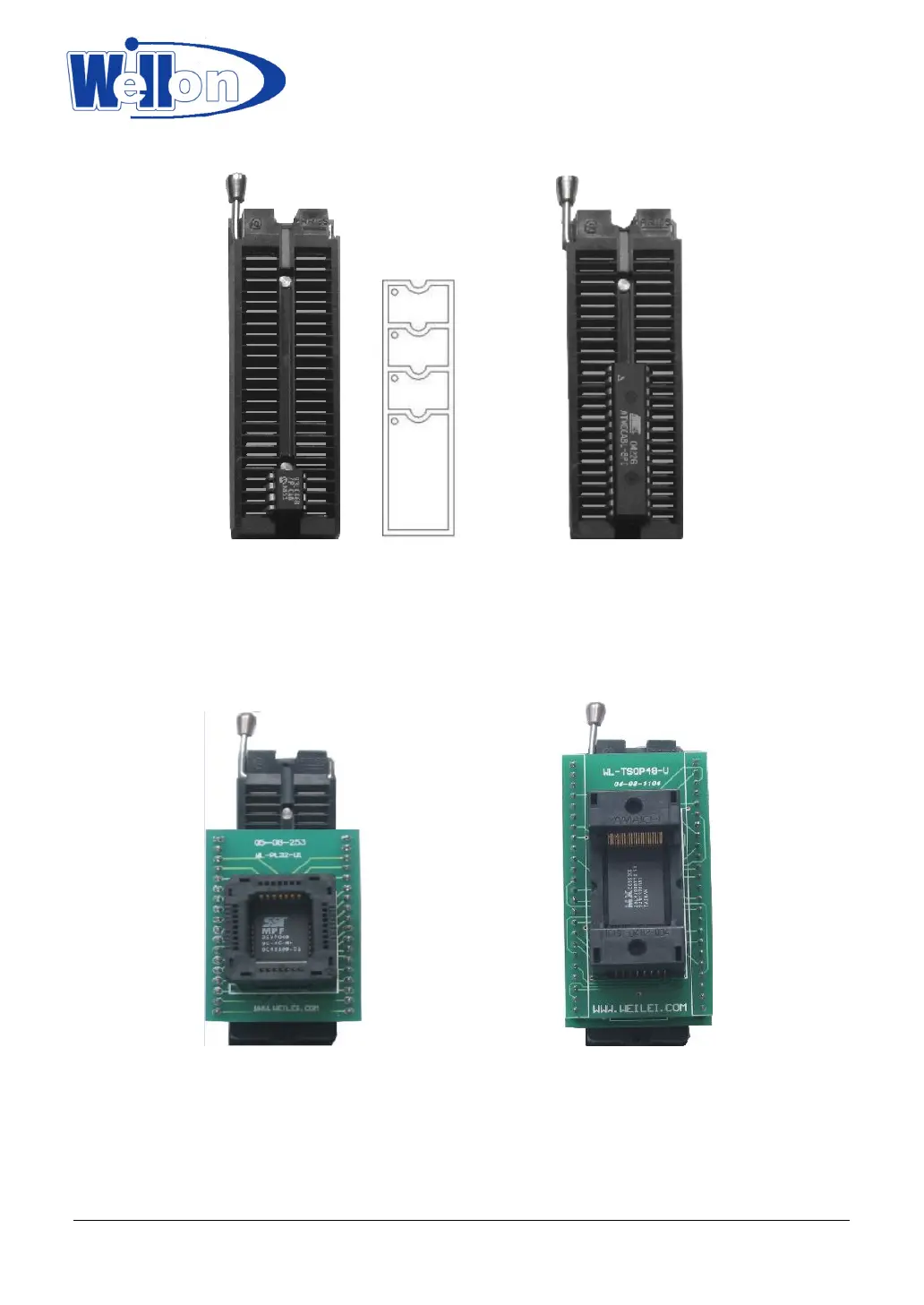

socket, oriented with the pin 1 located in the upper left corner. As follow plot.
(a) Insertion of device 93LC46 (b) Insertion of device ATMEGA8L
Adapter insertion: Some devices may need a customized adapter. Always insert the adapter into the bottom
of the socket. As follow plot.
