G: Ground (output pins are not tested)

H: Output logic High (VOH)

L: Output logic Low (VOL)

C: Clock pin

1: Input logic High (VIH)

0: Input logic Low (VIL)

<PgUp>: Page up

<PgDn>: Page down

<TAB>: Skip to the next field

Note that the voltage is TTL voltage.

11.3.3 Delete Pattern

Highlight the test pattern you wish to delete and click on OK button. A message box that is ‘Delete pattern.’

will display. By clicking OK button, the test pattern will be deleted and you can return to the main menu, &

also make sure that you have made the right selection. The only way to retrieve a deleted test pattern is to

recreate a pattern.

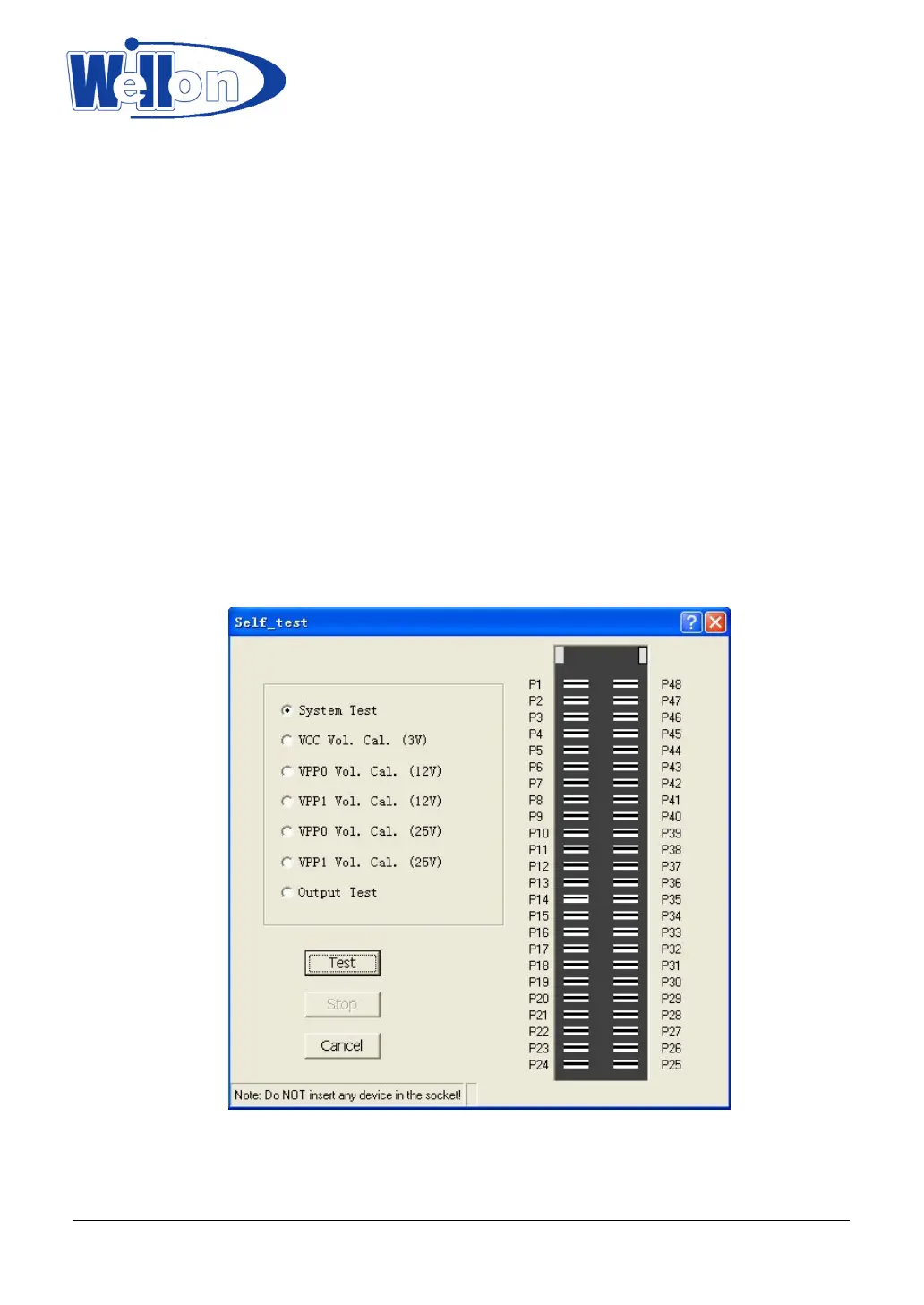

11.4 Self-Test

This option performs a self-test on the system hardware.
