CM2P201 User Guide
99

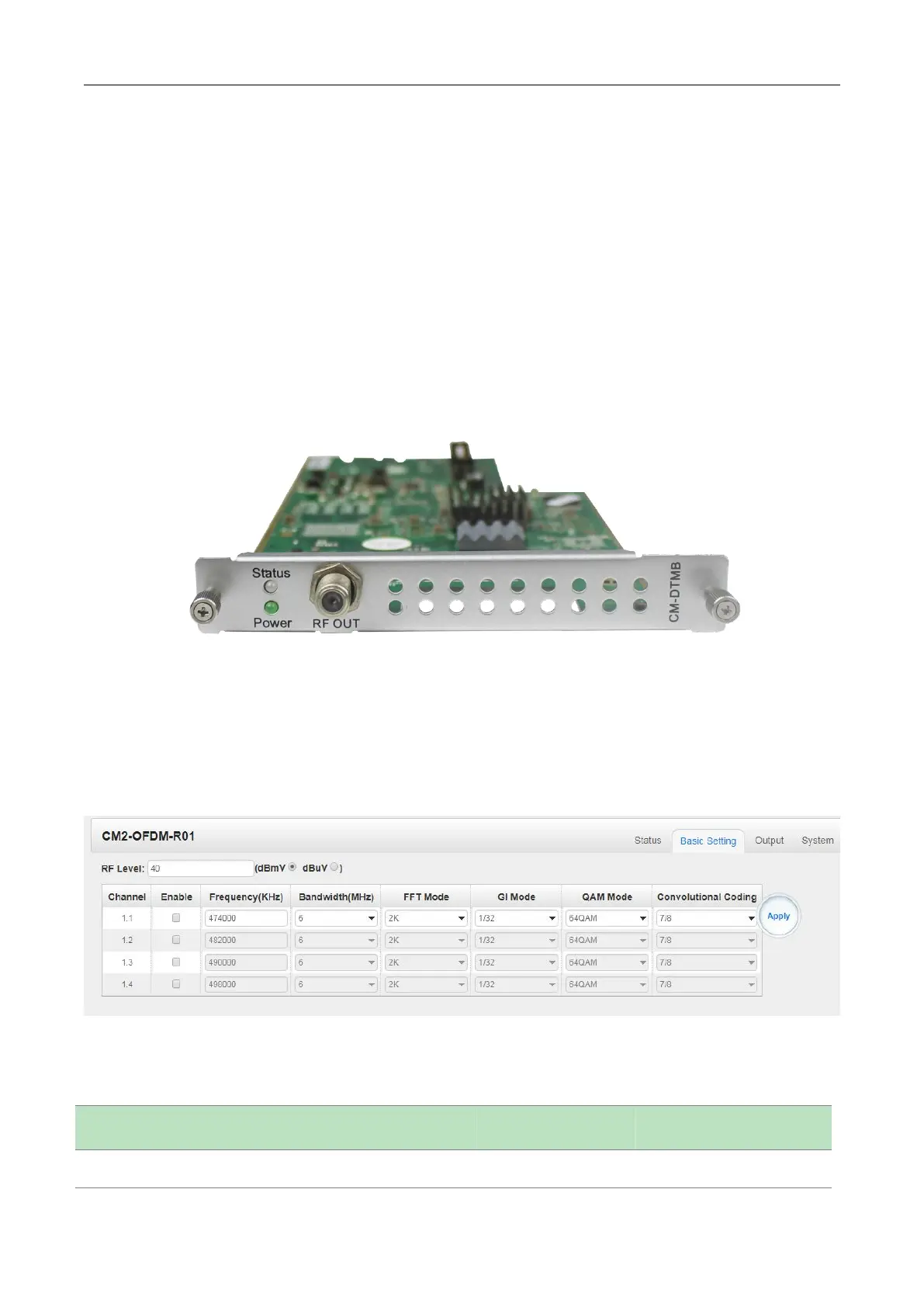

5.3.4 CM2-OFDM-R01/R01A
CM2-OFDM-R01 / R01A module supports up to 4/8 adjacent frequencies modulating with 1 RF
female connector for output.
Module configuration is similar to IP Setting.
CM2-OFDM-R01>Basic Setting
Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
Bandwidth
6M, 7M, 8M
RF level
0-31.5dBmv/60-91.5dBμv
