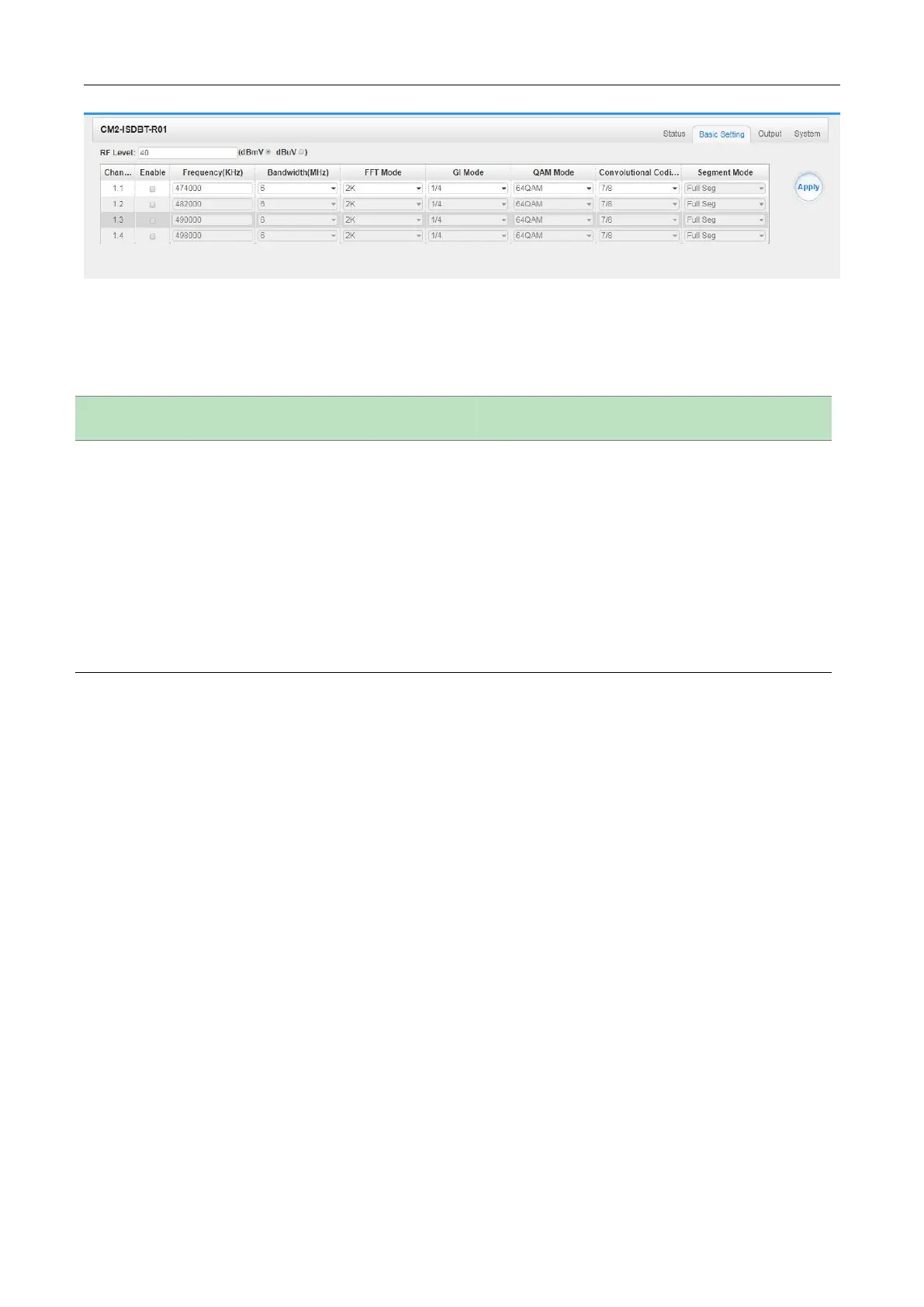

Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
CM2-ISDBT-R01/R01A>Output
 TS setting: Please refer to IP output service configuration.
 LCN setting: You need to add NIT streams of all frequencies to the base TS (frequency) which is
for your STB to automatically search and identify all the TS (frequencies) LCN information.
 Check or reset Original Network ID and TS ID of each TS (frequency). Each TS should have
different IDs.
 Fill the Original Network ID and TS ID of each TS (frequency) in the field of the base TS
(frequency) and then click Add to create a NIT stream for this TS (frequency).
 Click +Descriptor and Cable Descriptor. Fill in the correct frequency and symbol rate and
choose the correct constellation of the TS (frequency) and then click OK (this operation
should be set on Modulator module only).
Bandwidth(MHZ)
6M
RF level
25~45dBmV/85~105dBμV
Frequency (KHz)
48000~862000
FFT Mode
2K
GI Mode
1/4, 1/8, 1/16, 1/32
RF Level Gain(dB)
45~55
QAM Mode
QPSK
16QAM
64QAM
Convolutional
Coding
1/2, 2/3, 3/4, 5/6, 7/8
