Wen MM1215 User Manual

29

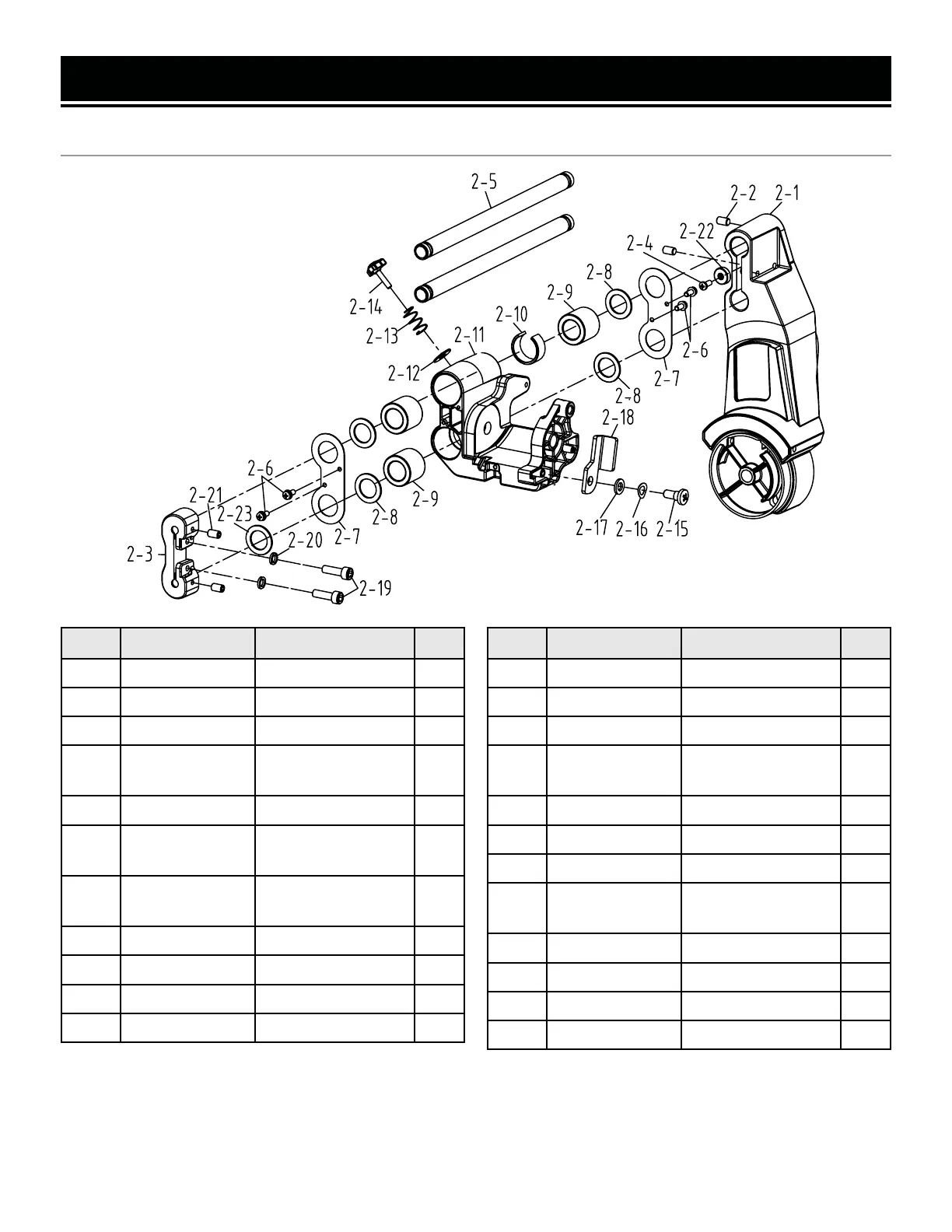

EXPLODED VIEW & PARTS LISTEXPLODED VIEW & PARTS LIST
PIVOT ASSEMBLY
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
No. Part No. Description Qty.
2-01 MM1215-201 Bevel Arm 1
2-02 MM1215-202 Set-Screws M6X10 2
2-03 MM1215-203 Slide End Cap 1
2-04 MM1215-204
Cross-head Screw
M5X10
2
2-05 MM1215-205 Slide Rail 2
2-06 MM1215-206
Cross-head Screws
M4X12
4
2-07 MM1215-207
Liner Bearing
Cover
2
2-08 MM1215-208 Filet Washer 4
2-09 MM1215-209 Linear Bearing 3
2-10 MM1215-210 Bearing spacer 1
2-11 MM1215-211 Bevel Arm 1
No. Part No. Description Qty.
2-12 MM1215-212 Washer 1
2-13 MM1215-213 Spring 1
2-14 MM1215-214 Knob M6X30 1
2-15 MM1215-215
Shoulder Screw
M6X14
1
2-16 MM1215-216 Wave Washer 1
2-17 MM1215-217 Washer 1
2-18 MM1215-218 Depth-stop Flange 1
2-19 MM1215-219
Socket Screws
M6X20
2
2-20 MM1215-220 Spring Washer 1
2-21 MM1215-221 Set Screws M6X6 1
2-22 MM1215-222 Rubber Ring 1
2-23 MM1215-224 O-ring 1
