Wen MM1215 User Manual

33

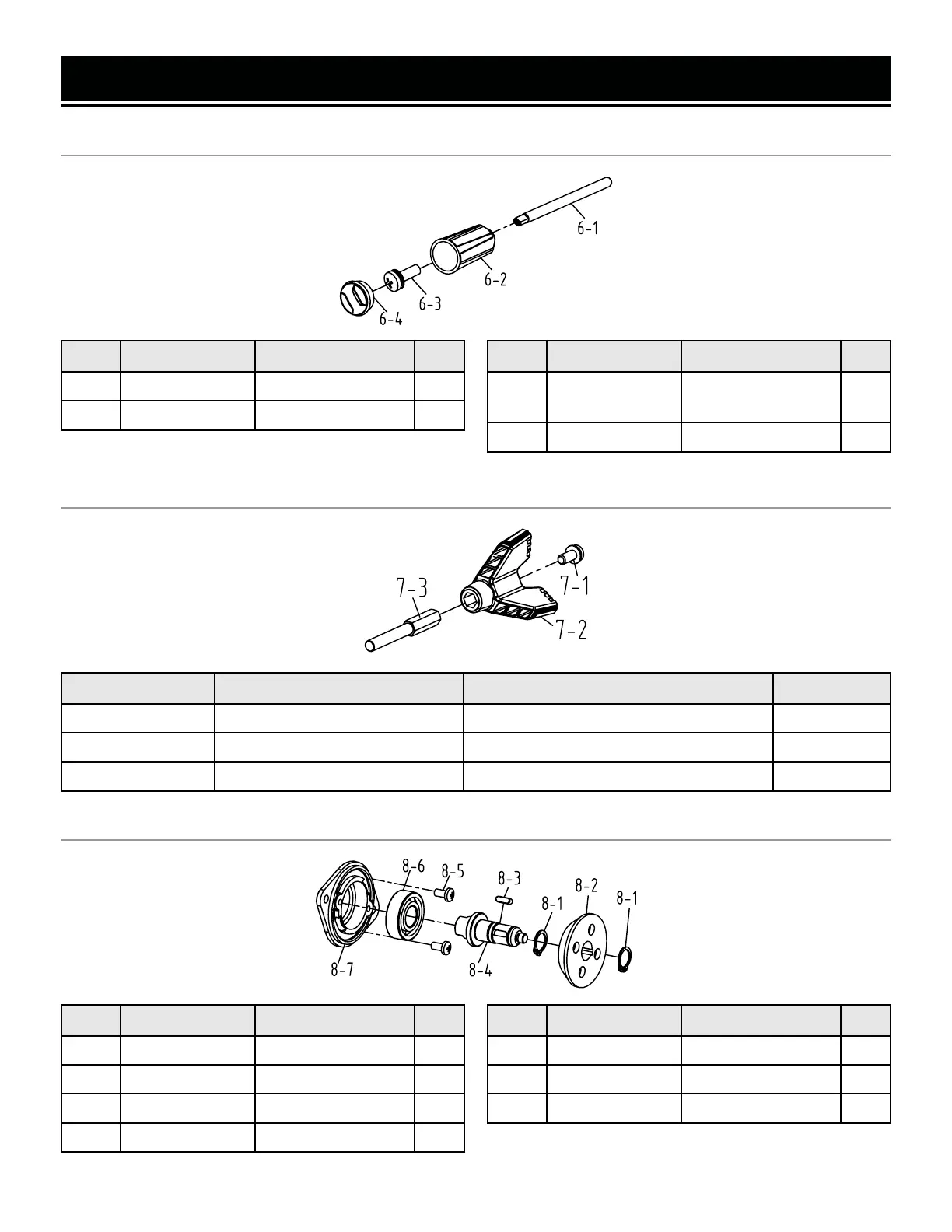

EXPLODED VIEW & PARTS LIST
MITER LOCK HANDLE ASSEMBLY
No. Part No. Description Qty.
6-01
MM1215-601 Miter Lock Rod 1
6-02 MM1215-602 Miter Lock Knob 1
No. Part No. Description Qty.
6-03 MM1215-603
Cross-head Screw
M4X12
1
6-04 MM1215-604 End cap 1
BEVEL LOCK HANDLE ASSEMBLY
No. Part No. Description Qty.
7-01
MM1215-701 Cross-head Screw 1
7-02 MM1215-702 Bevel Lock Knob 1
7-03 MM1215-703 Hex Bolt 1
ARBOR ASSEMBLY
No. Part No. Description Qty.
8-01
MM1215-801 C-ring 2
8-02 MM1215-802 Gear 1
8-03 MM1215-803 Flat key 1
8-04 MM1215-804 Arbor 1
No. Part No. Description Qty.
8-05 MM1215-805 Cross-head Screw 2
8-06 MM1215-806 Bearing 2
8-07 MM1215-807 Gear Box Cover 1
