Wen MM1215 User Manual

32

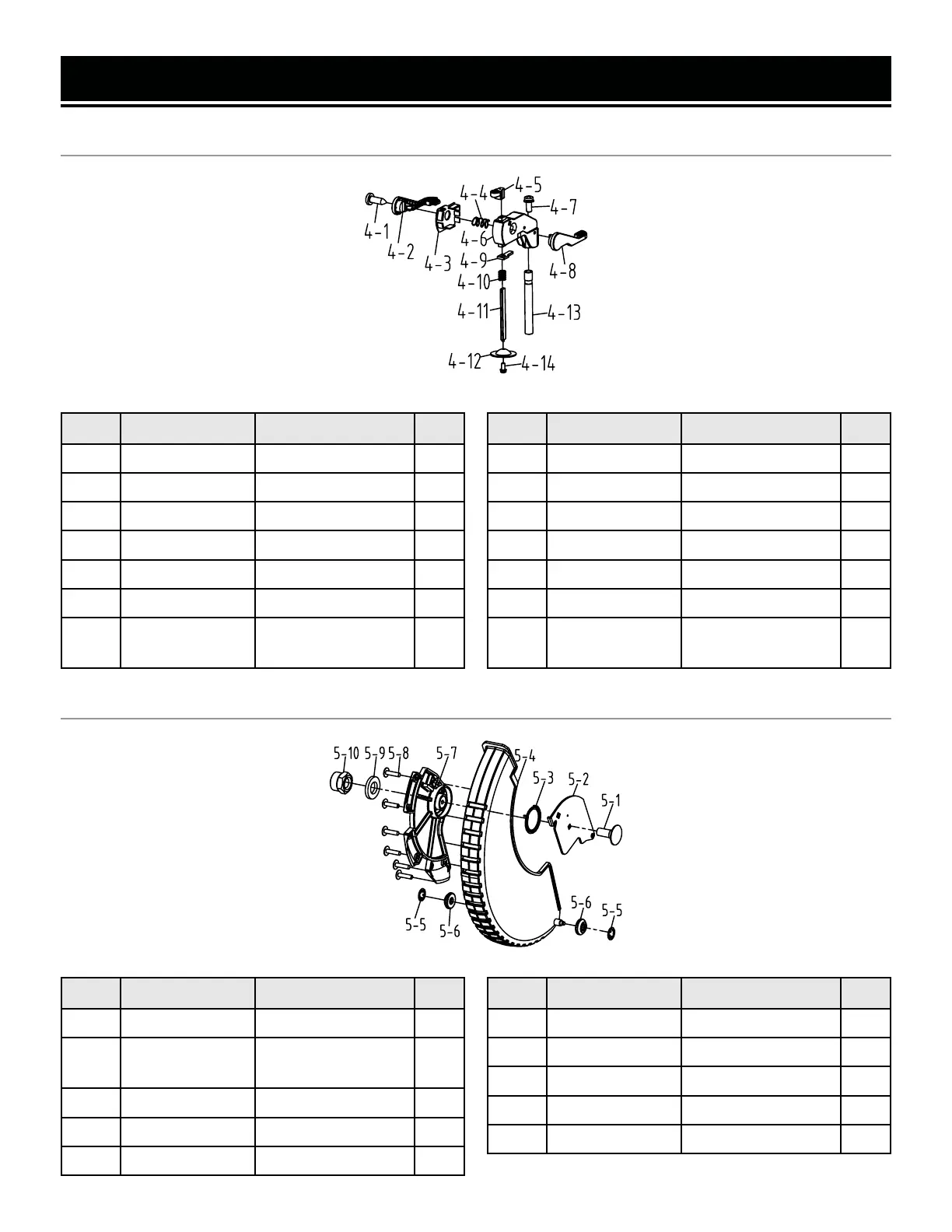

EXPLODED VIEW & PARTS LIST
QUICK-CLAMP ASSEMBLY
No. Part No. Description Qty.
4-01
MM1215-401 Self-tapping Screw 1
4-02 MM1215-402 Right Lock Handle 1
4-03 MM1215-403 End cap 1
4-04 MM1215-404 Spring 1
4-05 MM1215-405 End Tab 1
4-06 MM1215-406 Clamp Arm 1
4-07 MM1215-407
Cross-head Screw
M5X16
1
No. Part No. Description Qty.
4-08 MM1215-408 Left Lock Handle 1
4-09 MM1215-409 Lock Tab 1
4-10 MM1215-410 Spring 1
4-11 MM1215-411 Clamp Bar 1
4-12 MM1215-412 Clamp Plate 1
4-13 MM1215-413 Support Rod 1
4-14 MM1215-414
Cross-head Screw
M4X12
1
BLADE GUARD ASSEMBLY
No. Part No. Description Qty.
5-01 MM1215-501 Screw M6X16 1
5-02 MM1215-502
Blade Guard
Bracket
1
5-03 MM1215-503 Torsion Spring 1
5-04 MM1215-504 Lower Blade Guard 1
5-05 MM1215-505 Washer 2
No. Part No. Description Qty.
5-06 MM1215-506 Wheel 2
5-07 MM1215-507 Guard Cover 1
5-08 MM1215-508 Rivet 6
5-09 MM1215-509 Washer 1
5-10 MM1215-510 Lock Nut 1
