Ultrasonic Sensors
8.1. 2.3 Input Functions
The input functions are used to set the physical inputs.
Function Possible Settings Default
Input mode
Operating Voltage Active
The function is triggered as soon as operating voltage is applied to the
input.
Operating Voltage Inactive
The function is triggered as soon as 0 V is applied to the input or the
input is not occupied.
Operating volt-
age active

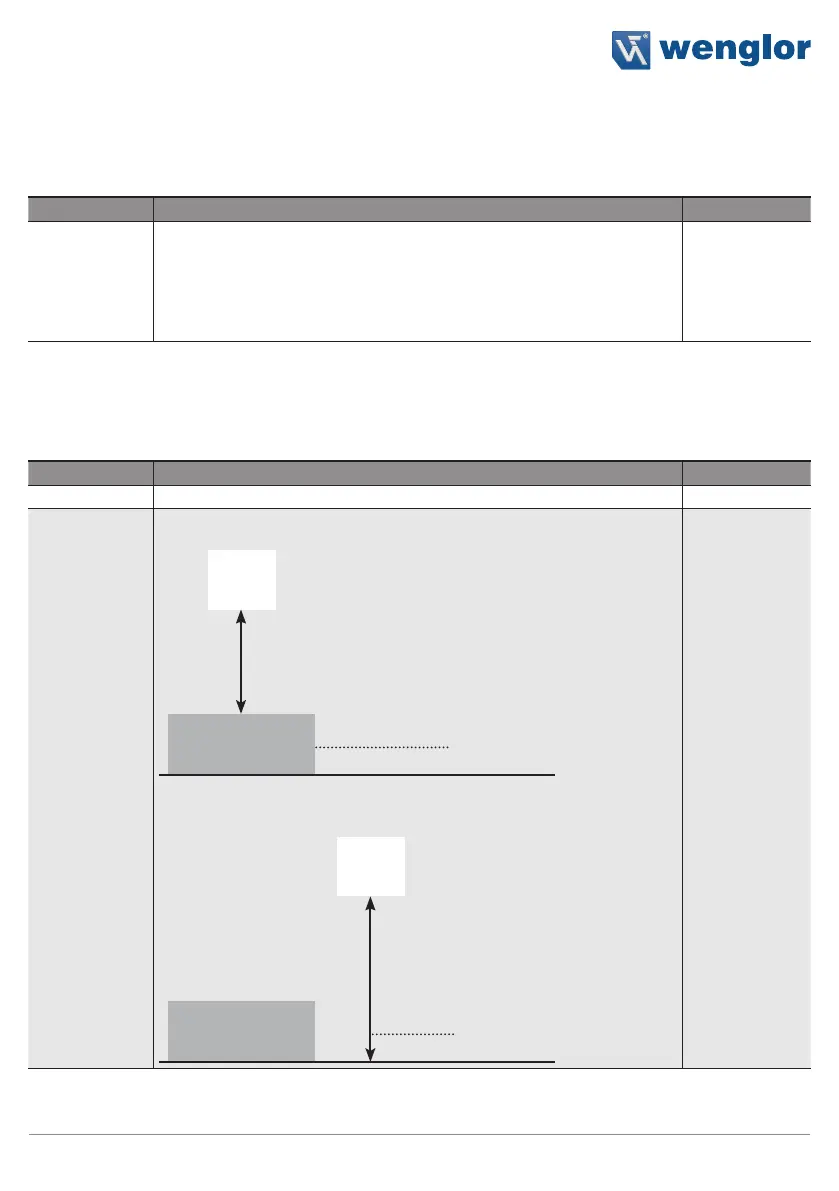

8.1.3 Switching Point Functions (SSC1/SSC2)
The switching point functions are used to set the two switching points, SSC1 and SSC2.
SSC1 is assigned to output O1 and SSC2 is assigned to output O2.
Function Possible Settings Default
Teach-in Starts the teach-in process
Teach-in
mode
Foreground Teach-In
Object
Sensor
Teach-in distance
Switching point
Background Teach-In
Object
Sensor
Teach-in distance
Switching point
Foreground
teach-in
