WERSI SONIC USER MANUAL
1.10 Connections for the Sonic.
The Sonic features a range of In / Out Connections for connecting to external devices and Audio
Equipment.
The Connections:
The SONIC features a wealth of connections including Audio, MIDI and USB.
Microphone XLR Input - The Microphone input allows you to connect either 1/4 Audio Jack or an
XLR Female microphone with Phantom Power.
Audio Input - A stereo Input (Left & Right) with combined 1/4 Audio Jack or XLR Female connections.
MIDI Over USB - A standard USB MIDI Connection for connecting to a computer / DAW.
MIDI 1 - Standard MIDI In / Thru / Out Connections.
MIDI 2 - Standard MIDI In / Thru / Out Connections.
Output 1 - Standard Left and Right Audio Outputs (1/4 Audio Jack)
Output 2 - Standard Left and Right Audio Outputs (1/4 Audio Jack)
Swell - This connects the volume swell pedal to the Sonic control processors.
Pedal - This connects the Pedal Board and Foot Pistons to the Sonic control processors.
WERSI DIRECT LTD - 0800 084 2013 - www.wersidirect.com - info@wersidirect.com

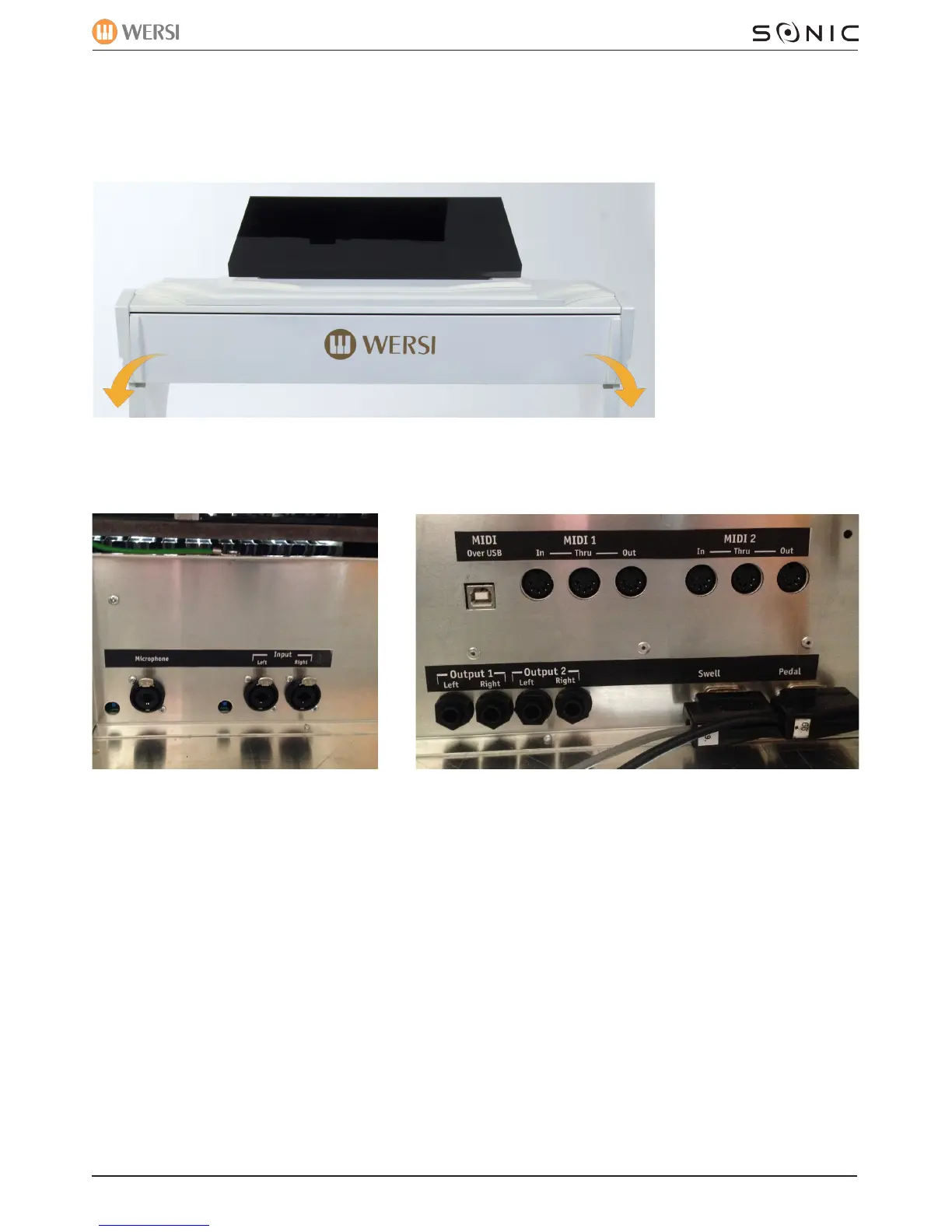

The rear panel of the
SONIC opens (use the
handels on both sides to
open) to reveal the con-
nection options.
To Close: Simply push
the panel back up with
the handels.
