Westerbeke 6.5 MCG - TIMING BELT DISASSEMBLY; INSTRUCTIONS FOR INSPECTING AND REPLACING THE TIMING BELT; Timing Belt Removal

12BOLT
NUMBERS INDICATE THE
SUGG!STED ORDER OF
DISASSEMBLY
1 TIMING
COVER A
TORDiJE 98 • 105 FT-LBS
135·145Nm

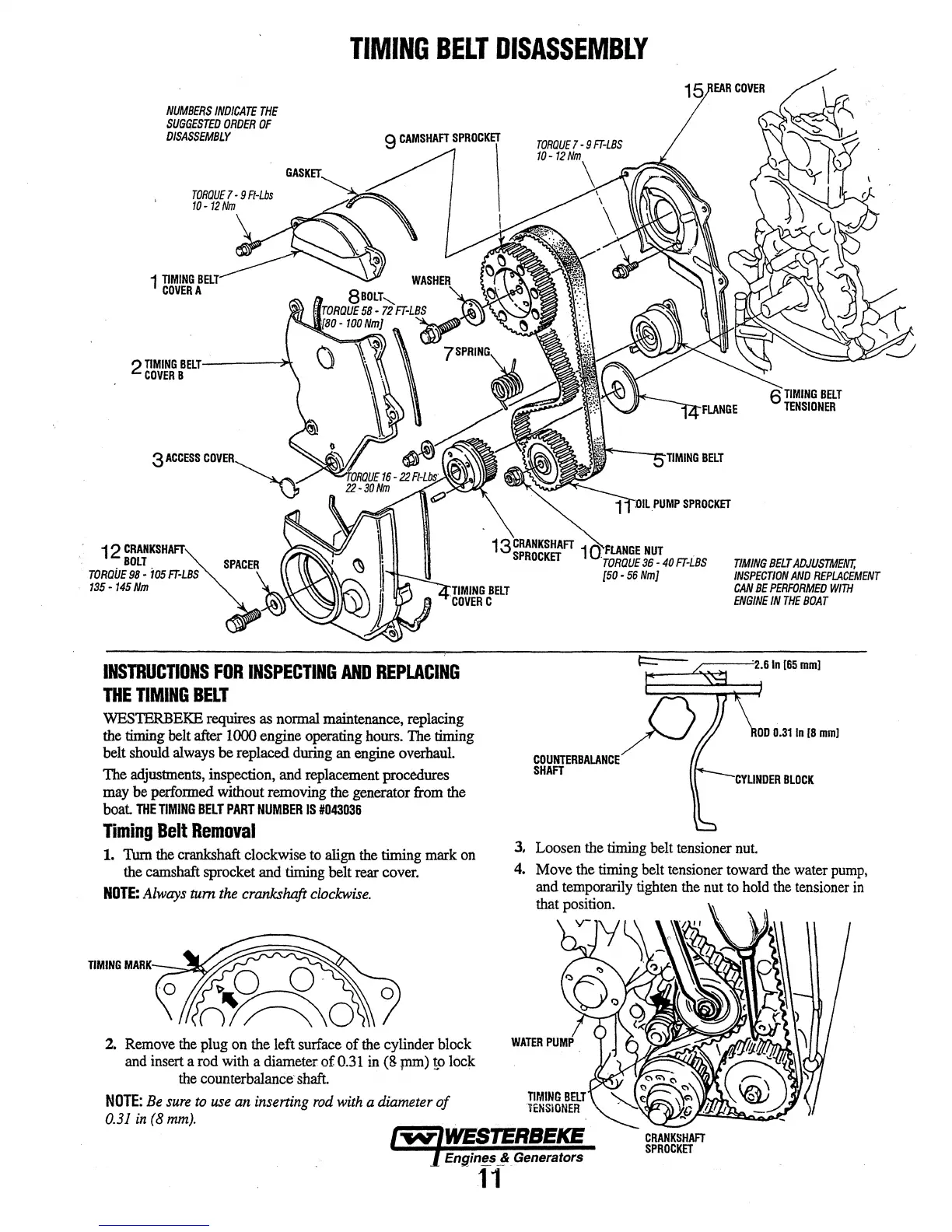

TIMING BELT DISASSEMBLY
INSTRUCTIONS FOR INSPECTING AND REPLACING
THE nMING BELT
WESTERBEKE requires as normal mafutenance, replacing
the timing belt after 1000 engine operating hours. The timing
belt should always be replaced during an engine overhaul.
The adjustments, inspection, and replacement procedures
may be perfoxmed without removing the generator from the
boat THE TIMING BaT PART NUMBER IS #043036
TIMING BELT ADJUSTMENT;
INSPECTION AND REPLACEMENT
CAN BE PERFORMED WITH
ENGINE IN THE BOAT
OD 0.311n [8 mml
Timing Belt Removal
1. Thm the crankshaft clockwise to align the timing mark on
the camshaft sprocket and timing belt rear cover.
3. Loosen the timing belt tensioner nut
NOTE: Always tum the crankshaft clockwise.
2. Remove the plug on the left surface of the cylinder block
and insert a rod with a diameter of 0.31 in (8 p'Ull) to lock
the counterbalance' shaft ·
NOTE: Be sure to use an inserting rod with a diameter of
0.31 in (8 mm).
4.
Engin!!_s ~-Generators
11
CRANKSHAFT
SPROCKET
