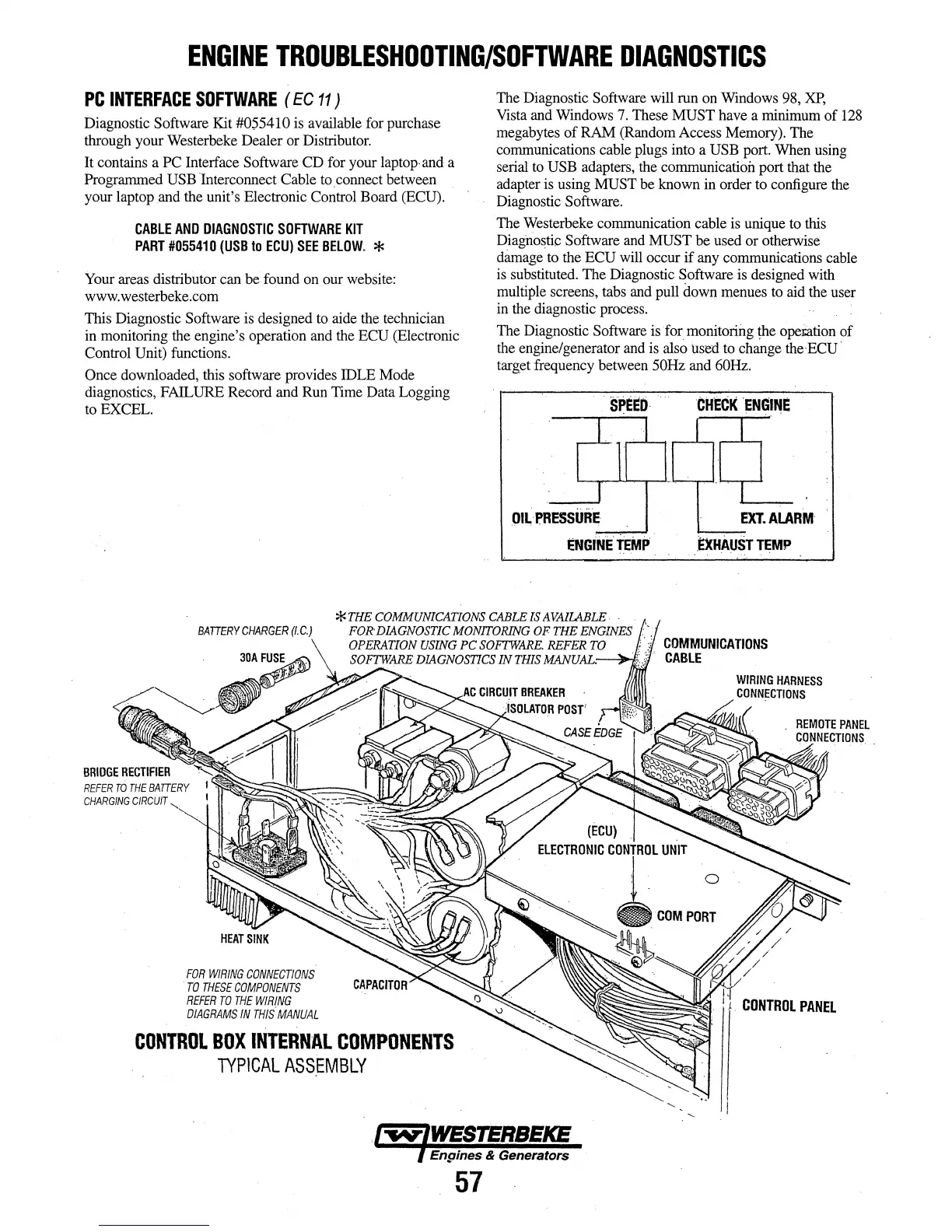

ENGINE
TROUBLESHOOTING/SOFTWARE
DIAGNOSTICS
PC
INTERFACE
SOFTWARE
(
EC
11)
Diagnostic Software Kit #055410 is available for purchase
through your Westerbeke Dealer or Distributor.
It
contains a PC Interface Software CD for your laptop· and a
Programmed
USB Interconnect Cable
to
connect between
your laptop and the unit's Electronic Control Board (ECU).
CABLE
AND
DIAGNOSTIC
SOFTWARE
KIT
PART
#055410
(USB
to
ECU)
SEE
BELOW.
*
Your areas distributor can be found on our website:
www. westerbeke.com
This Diagnostic Software is designed to aide the technician
in monitoring the engine's operation and the
ECU (Electronic
Control
Unit) functions.
Once downloaded, this software provides IDLE Mode
diagnostics, FAILURE Record and Run Time Data Logging
to EXCEL.
The Diagnostic Software will run on Windows 98,
XP,
Vista and Windows
7.
These MUST have a minimum
of
128
megabytes
of
RAM (Random Access Memory). The
communications cable plugs into a
USB port. When using
serial to
USB adapters, the communication port that the
adapter is using MUST be known in order to configure the
Diagnostic Software.
The Westerbeke communication cable is unique to this
Diagnostic Software and
MUST be used or otherwise
damage to the
ECU will occur
if
any communications cable
is
substituted. The Diagnostic Software is designed with
multiple screens, tabs and pull
down menues to aid the user
in the diagnostic process.
The Diagnostic Software is for monitoring
\fle opetation
of
the engine/generator and
is
also used to change the ECU ·
target frequency between 50Hz and 60Hz.
.
SPEED
OIL
PRESSURE
EXT.
ALARM
,_,-..,-....J
ENGINE
TEMP
I----
EXHAUST
TEMP
*THE
COMMUNICATIONS
CABLE
IS
AVAILABLE
BATTERY
CHARGER
(/.C)
FOR·
DIAGNOSTIC
MONITORING
OF
THE
ENGINES
OPERATION
USING
PC
SOFTWARE.
REFER
TO
SOFTI¥ARE
DIAGNOSTICS IN
THIS
FOR
WIRING
CONNECTIONS
TO
THESE
COMPONENTS
REFER
TO
THE
WIRING
DIAGRAMS
IN
THIS
MANUAL
CONTROL
BOX
INTERNAL
COMPONENTS
TYPICAL
ASSEMBLY
57
COMMUNICATIONS
GABLE
L
CONTROL
PANEL
