3. Component Overviews
3.1 Chassis Description
3.1 Chassis Description

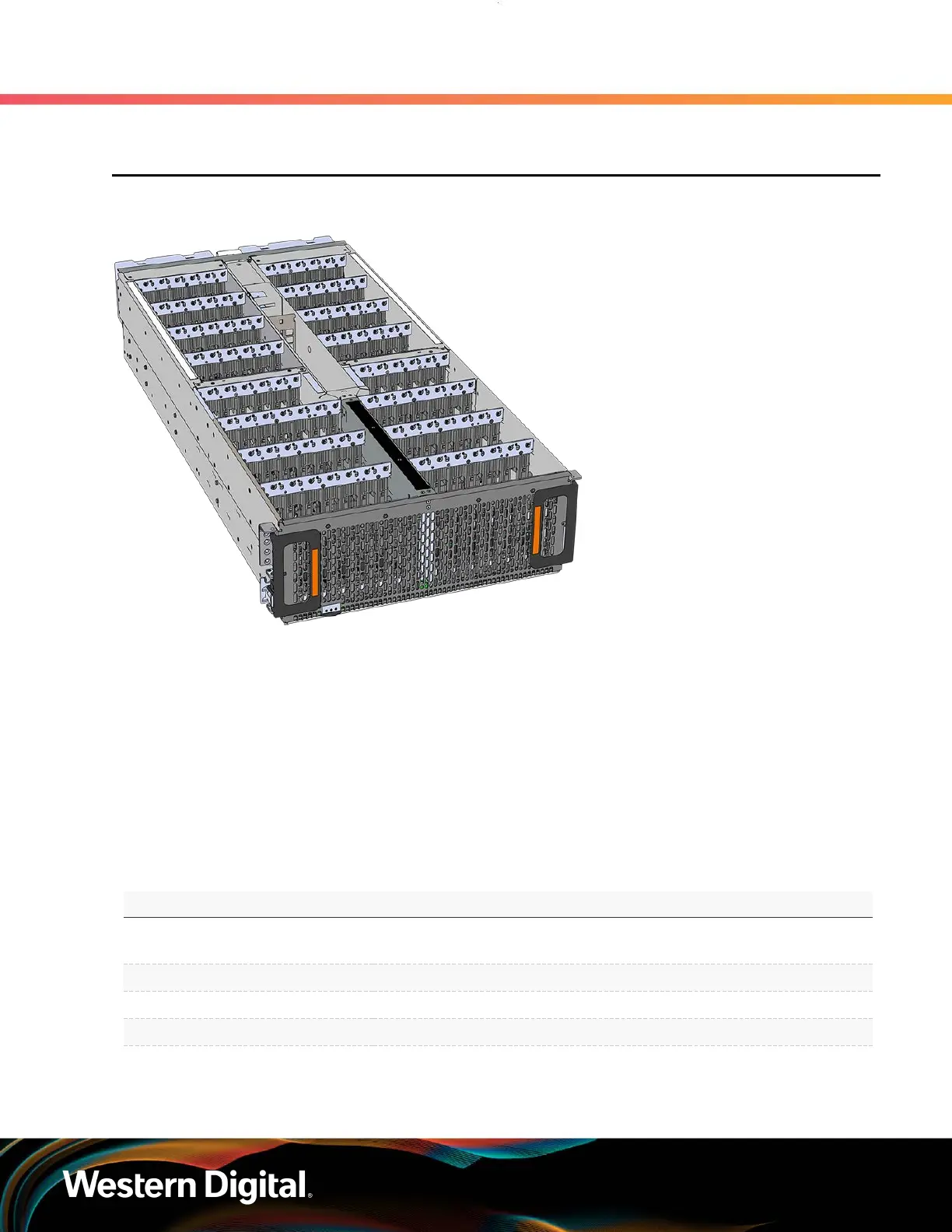

Figure 15: Overview Image
The chassis is the primary housing that contains and connects all of the system components that comprise
the Ultrastar Data102. The chassis is comprised of the drive bay that contains all of the system data storage
drives and a number of other bays that contain the major system components such as the PSUs and . Other
system components are attached to the exterior of the chassis such as the rear fans and rails to provide
system cooling andrackmounting capability. The chassis also houses the baseboard which is mounted in
the bottom of the chassis' tub and is the primary data pathway that connects all of the enclosure's system
components. The chassis has internal backflow preventers to prevent hot air from re-entering the enclosure.
3.1.1 Chassis Specifications
Table 25: Specification Summary
Specification Value
Dimensions
W: 447 mm x L: 1026 mm x H: 172.7 mm
/ W: 17.6 in. x L: 40.69in. x H: 6.8 in.
Part Number 1EX0441 or 1EX0440 for single IOM chassis versions
Hot Swappable? No
Weight 32.34 kg / 71.3 lbs
3.1.2 Chassis Layout
