3. Component Overviews
3.4 Rear Fan Description
Number Feature
5 Handle
3.4 Rear Fan Description

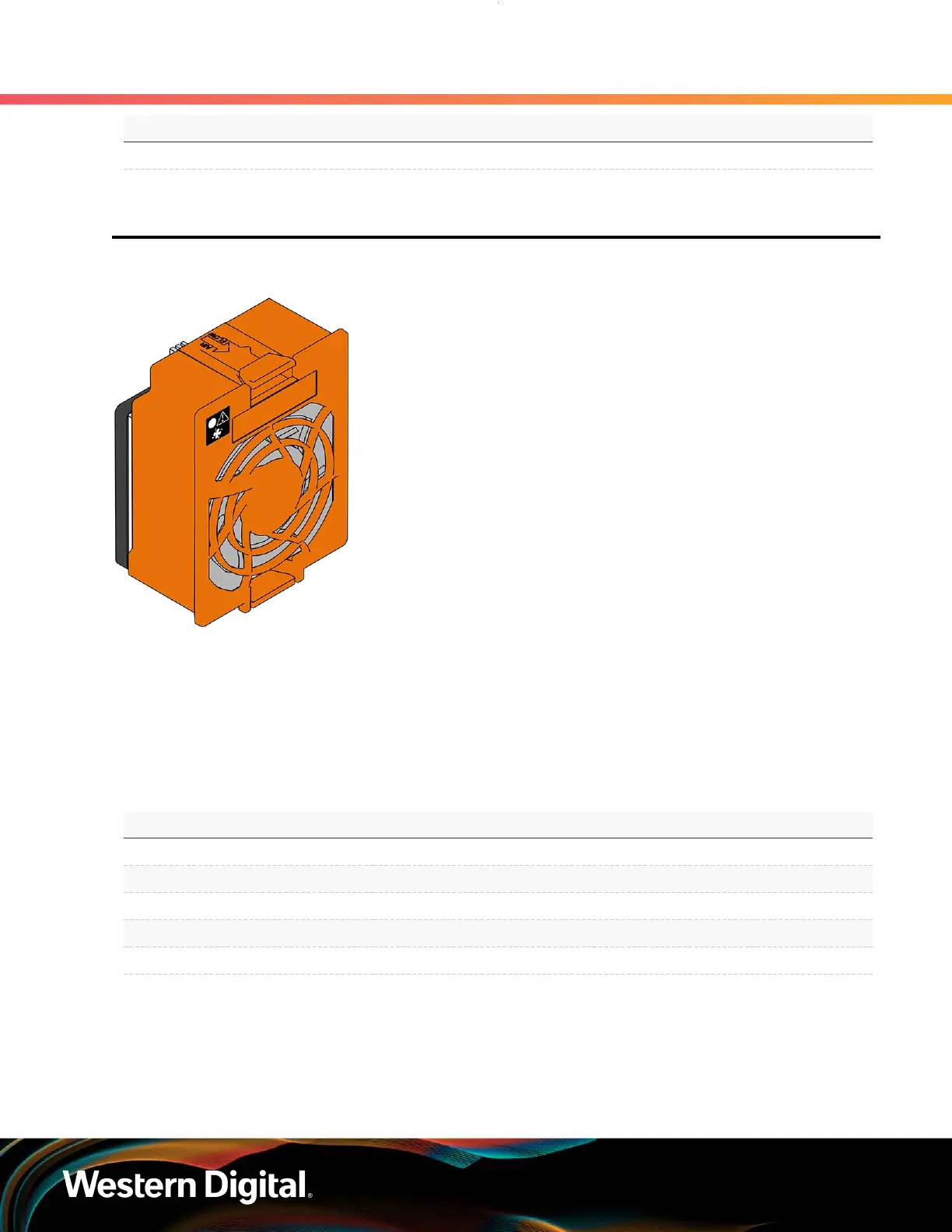

Figure 22: Overview Image
The Rear Fans are toolless fan modules that provide the primary system cooling for the Ultrastar Data102.
They are attached to the rear of the chassis in the fan housing by a 6 pin connector and two latches, that
also provides power and control signals to the modules.
3.4.1 Rear Fan Specifications
Table 29: Specification Summary
Specification Value
Number per Enclosure 4
Part Number 1EX0433
Hot Swappable? Yes
FRU or CRU? CRU
Weight 318 g / .7 lbs
3.4.2 Rear Fan Layout
